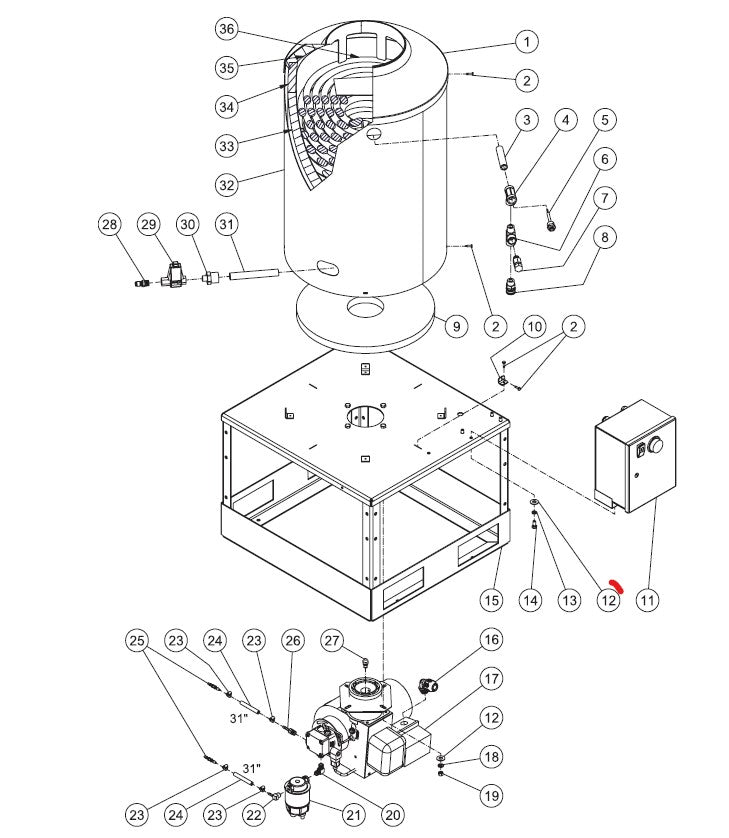

HOM-3506-0E10 Burner Assembly Parts By MiTM

HOM-3506-0E10 Burner Assembly Parts By MiTM

  • HOM-3506-0E10 Burner Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
20-0621A18 DOME BY MITM 20-0621A18 DOME BY MITM
$153.03
2
27-3064 Screw BY MITM 27-3064 Screw BY MITM
$0.68
3
24-0244 Pipe Nipple-1/2Npt X 4"Long for AC1-HE02-05M1 Air Compressor by Mi-T-M 240244 24-0244 Pipe Nipple-1/2Npt X 4"Long for AC1-HE02-05M1 Air Compressor by Mi-T-M 240244
$17.50
4
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055 24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
5
32-0962 Thermostat-Adj 250F 72" Cap for AC1-HE02-05M by Mi-T-M 320962 32-0962 Thermostat-Adj 250F 72" Cap for AC1-HE02-05M by Mi-T-M 320962
$88.61
6
24-0242 Street Tee-1/2Npt Steel Forged for AC1-HE02-05M by Mi-T-M 240242 24-0242 Street Tee-1/2Npt Steel Forged for AC1-HE02-05M by Mi-T-M 240242
$40.76
7
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309 22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
8
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
9
850-0389 INSUALTION BLANKET BY MITM 850-0389 INSUALTION BLANKET BY MITM
$43.20
10
20-0651A18 CLIP/COIL RETAINER BY MITM 20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
12
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
13
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007 29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
14
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066 27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
15
5-0289A18 COIL BASE BY MITM 5-0289A18 COIL BASE BY MITM
$438.48
16
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
17
4-0028 BURNER BY MITM 4-0028 BURNER BY MITM
$1,351.79
18
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
19
30-0006 Hex Nut BY MITM 30-0006 Hex Nut BY MITM
$0.68
20
23-0130 Elbow 1/4M X 1/4M 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230130 23-0130 Elbow 1/4M X 1/4M 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230130
$18.25
21
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070 19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
22
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054 23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
23
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
24
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008 15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
25
55-0679 COUPLING BY MITM 55-0679 COUPLING BY MITM
$2.03
26
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051 23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
27
18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090 18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090
$20.32
28
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
29
22-0348 FLOW SWITCH BY MITM 22-0348 FLOW SWITCH BY MITM
$107.19
30
24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048 24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048
$13.29
31
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254 24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
32
20-0634A18 OUTER WRAP BY MITM 20-0634A18 OUTER WRAP BY MITM
$476.69
33
850-0313 INSULATION BLANKET BY MITM 850-0313 INSULATION BLANKET BY MITM
$204.44
34
850-0314 INSULATION BLANKET BY MITM 850-0314 INSULATION BLANKET BY MITM
$233.97
35
850-0315 INSULATION DOME BY MITM 850-0315 INSULATION DOME BY MITM
$43.20
36
66-0023 HEAT EXCHANGER COIL BY MITM 66-0023 HEAT EXCHANGER COIL BY MITM
$1,749.60
11
Call for Price call for price call for price
