HOM-3506-0E10 Electric Box Assembly Parts By MiTM

HOM-3506-0E10 Electric Box Assembly Parts By MiTM

  • HOM-3506-0E10 Electric Box Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
32-0765A18 Electric Box Assembly BY MITM 32-0765A18 Electric Box Assembly BY MITM
$169.83
2
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807 27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
3
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009 28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
4
30-6001 Nut for MiTM Pressure Washers by MiTM 306001 30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
5
33-0390 MAGNETIC CATCH BY MITM 33-0390 MAGNETIC CATCH BY MITM
$11.69
6
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436 32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
7
27-8835 Screw for MiTM Pressure Washers by MiTM 278835 27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
8
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
9
32-0734 ADJUSTABLE THERMOSTAT BY MITM 32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
10
27-2097 BOLT BY MITM 27-2097 BOLT BY MITM
$0.57
11
32-0669 Switch/Rocker W/Lamp for AC1-PE03-20M Air Compressor by Mi-T-M 320669 32-0669 Switch/Rocker W/Lamp for AC1-PE03-20M Air Compressor by Mi-T-M 320669
$26.35
12
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
13
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
14
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437 32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
15
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

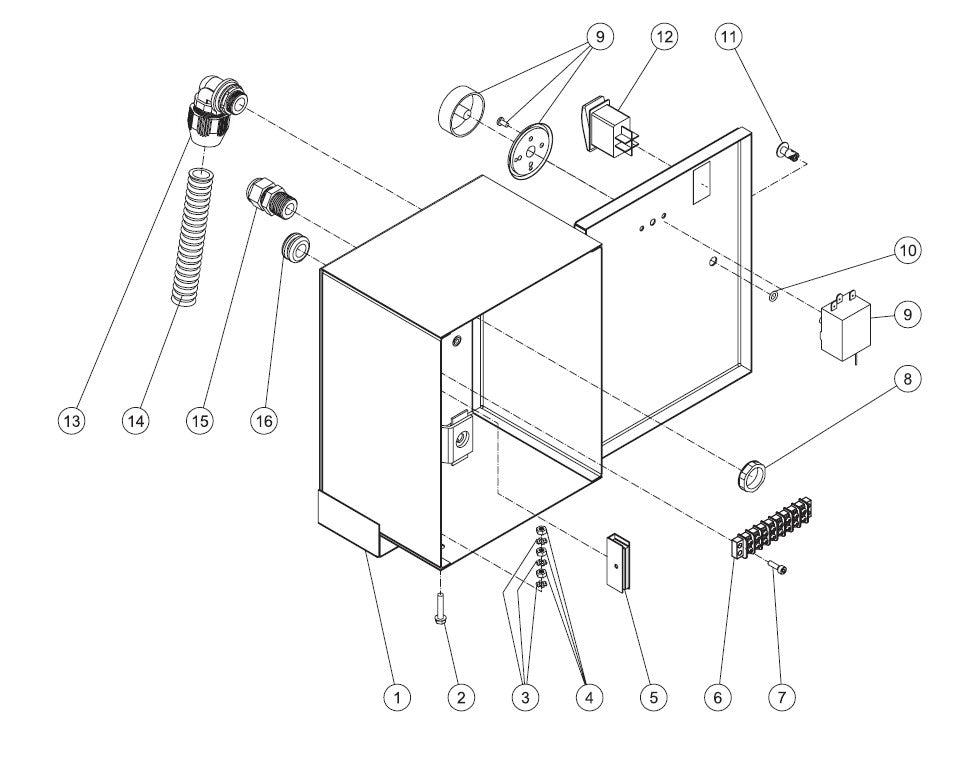

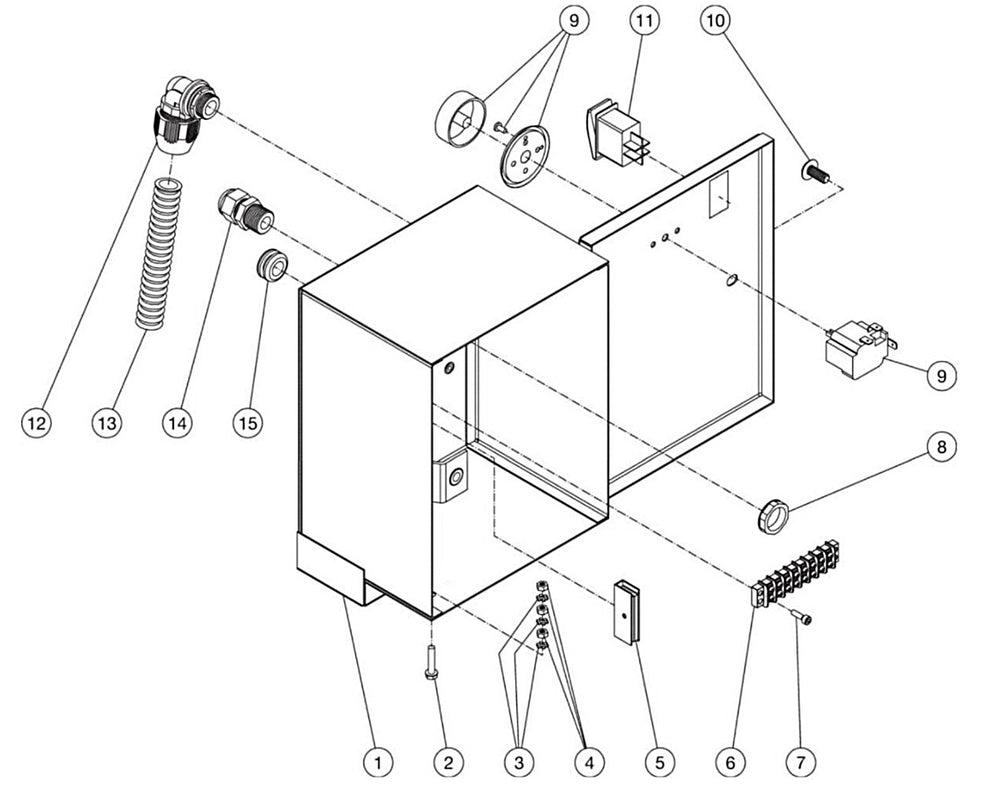

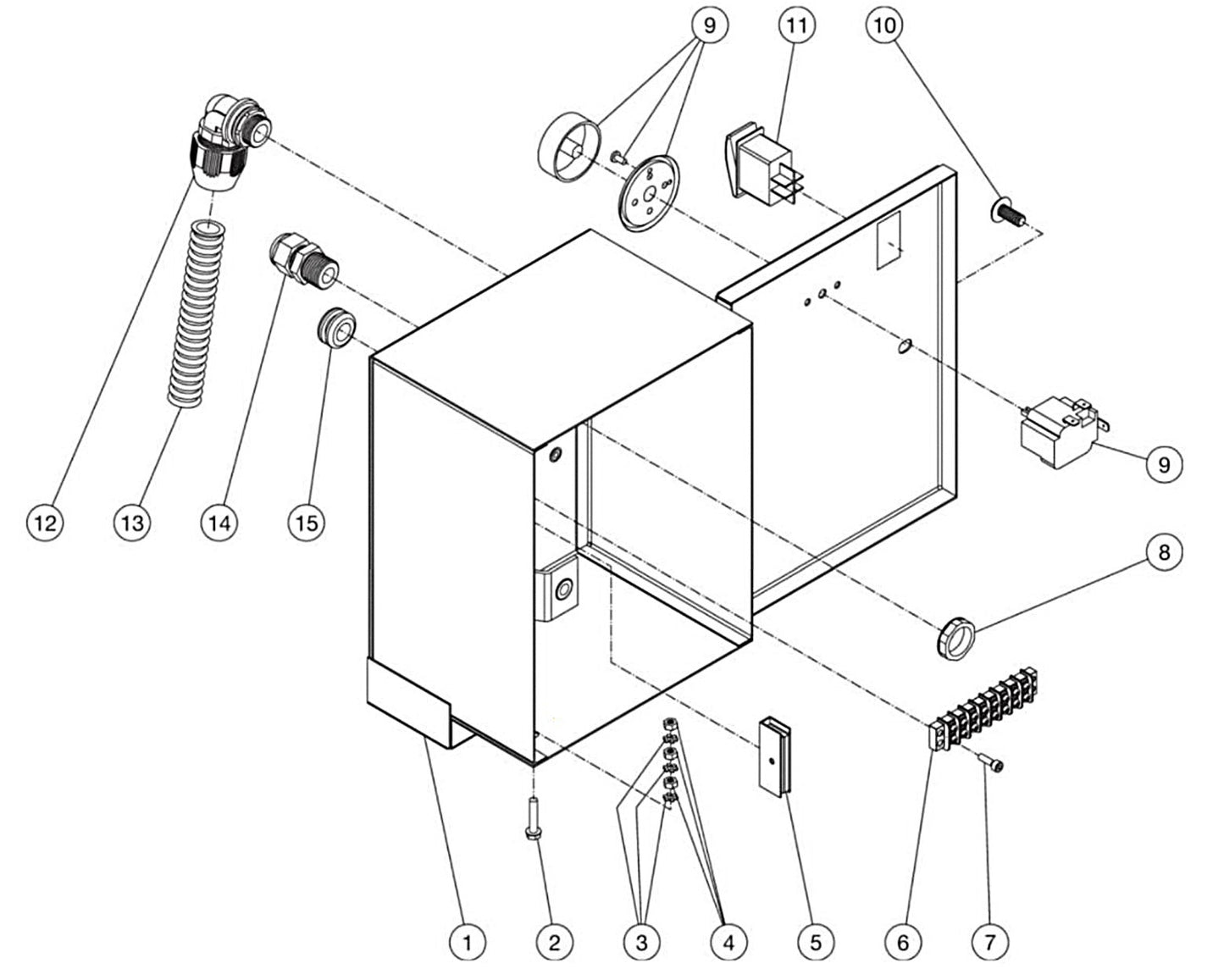

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
