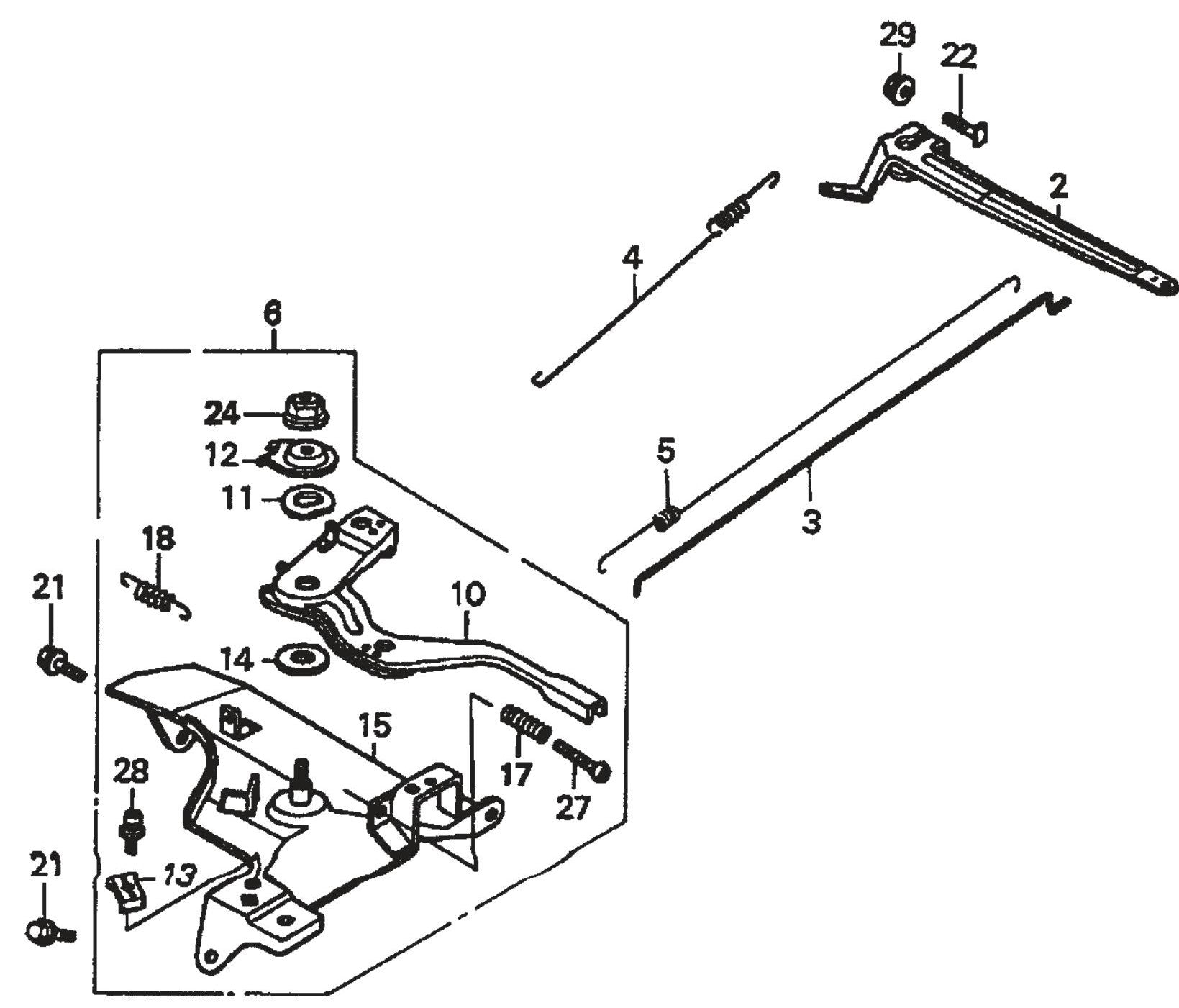

HONDA GX390K1QWT2/GX390U1QWT2 Engine Control Assembly Parts For SP1 Street Pro 1 Series By Multiquip

HONDA GX390K1QWT2/GX390U1QWT2 Engine Control Assembly Parts For SP1 Street Pro 1 Series By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
16551ZE3000 Arm, Governor for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$27.64
3
16555ZE3000 Rod, Governor for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$8.90
4
16561ZE3000 Spring, Governor for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$10.18
5
16562ZE3000 Spring, Throttle Return for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$9.32
6
16570ZE3W20 Control Assy. (Remote) for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$79.44
10
16571ZE3W00 Lever, Control for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$17.80
11
16574ZE1000 Spring, Lever for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$6.05
12
16575ZE2W00 Washer, Control Lever for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$7.28
13
16576891000 Holder, Cable for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$9.14
14
16578ZE1000 Spacer, Control Lever for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$7.09
15
16581ZE3W00 Base, Control for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$40.27
17
16584883300 Spring, Control Adjusting for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$8.37
18
16592883310 Spring, Cable Return for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$6.07
21
90013883000 Bolt, Flange (6X12) (Ct200) for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$3.85
22
90015ZE5010 Bolt, Governor Arm for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$27.29
24
90114SA0000 Nut, Self-Lock (6Mm) for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$27.29
27
93500050320A Screw, Pan (5X32) for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$27.29
28
93500050160A Screw, Pan (5X16) for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$2.19
29
9405006000 Nut, Flange 6Mm for SP113H18 SP15E16 Flat Concrete Saw by Multiquip
$2.95
