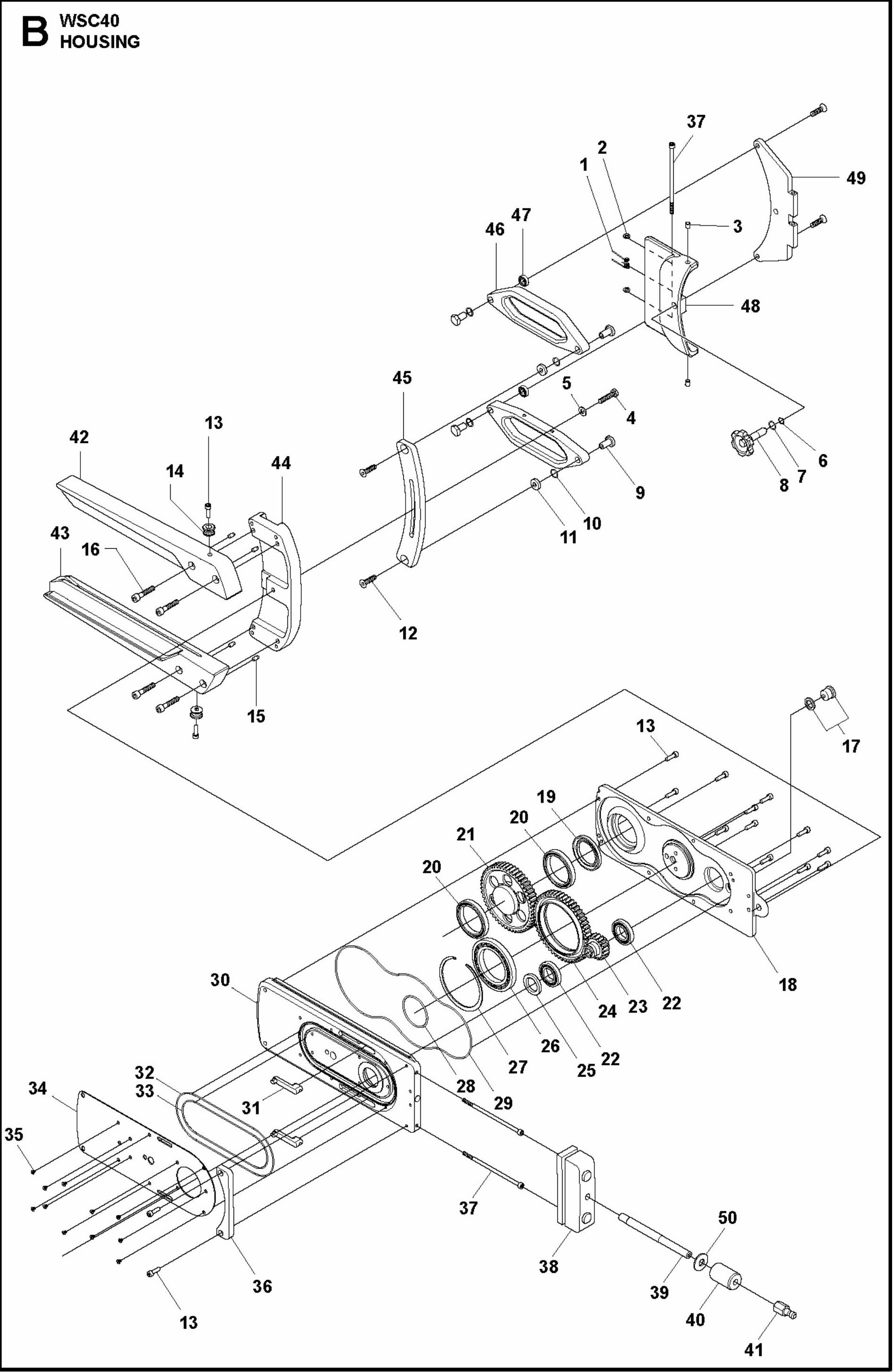

WSC 40 Housing Assembly Parts

WSC 40 Housing Assembly Parts

  • WSC 40 Housing Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
582262201 SPIRAL SPRING FOR WALL SAWS BY HUSQVARNA
$16.83
2
734115201 Washer for Power Trowel by Husqvarna
$3.99
3
582262101 SPRING RETAINER FOR WALL SAWS BY HUSQVARNA
$16.83
4
531119220 SCREW M6S 8X35 FOR WALL SAWS BY HUSQVARNA
$6.44
5
734116301 Washer for Power Trowel by Husqvarna
$3.99
6
580746201 SNAP RING FOR WALL SAWS BY HUSQVARNA
$3.85
7
740420600 O-RING FOR POWER CUTTERS BY HUSQVARNA
$4.89
8
586501601 LOCKING SCREW FOR WALL SAWS BY HUSQVARNA
$91.67
9
584276201 GUIDE BUSHING WSX FOR WALL SAWS BY HUSQVARNA
$42.69
10
740421100 O-RING 13.1X1.6 SMS 1586 FOR WALL SAWS BY HUSQVARNA
$4.89
11
584276101 SEALING WASHER WSX FOR WALL SAWS BY HUSQVARNA
$23.17
47
584276101 SEALING WASHER WSX FOR WALL SAWS BY HUSQVARNA
$23.17
12
531140695 Screw Kpl for WSC 40 Wall Saws by Husqvarna
$30.24
13
725537001 Screw Ihscm for Power Trowel by Husqvarna
$33.44
14
531122343 FASTENER, ALUM STRAP FOR WALL SAWS BY HUSQVARNA
$19.63
15
504908326 STEEL PIN FOR CORE DRILL BY HUSQVARNA
$5.80
16
725545901 Screw Ihscm for PG280S Floor Grinder and Polisher by Husqvarna
$6.74
17
531118113 MAGNETIC PLUG FOR HYDRAULIC POWER PACKS BY HUSQVARNA
$61.21
18
584274902 GEARBOX BOTTOM COVER FOR WALL SAWS BY HUSQVARNA
$795.24
19
584285801 RADIAL SEAL 45X65X6 FOR WALL SAWS BY HUSQVARNA
$23.37
20
584286001 BALL BEARING, SKF 61811 FOR WALL SAWS BY HUSQVARNA
$19.63
21
584275001 GEAR WHEEL, INPUT FOR WALL SAWS BY HUSQVARNA
$445.12
22
531119441 BEARING 16005 FOR WALL SAWS BY HUSQVARNA
$59.79
23
584275101 GEAR WHEEL, OUTPUT FOR WALL SAWS BY HUSQVARNA
$306.57
24
522526201 MEDIAL GEAR FOR WALL SAWS BY HUSQVARNA
$363.32
25
584285901 RADIAL SEAL 25X40X5 FOR WALL SAWS BY HUSQVARNA
$10.28
26
574452001 BEARING 16013 FOR WALL SAWS BY HUSQVARNA
$179.08
27
574453201 LOCK RING FOR WALL SAWS BY HUSQVARNA
$6.44
28
574453001 O-RING 56.87X2.62 FOR WALL SAWS BY HUSQVARNA
$5.14
29
584285501 O-RING 265X1,78 FOR WALL SAWS BY HUSQVARNA
$50.08
30
584274901 GEARBOX FOR WALL SAWS BY HUSQVARNA
$824.58
31
584275401 CHAIN TENSIONER FOR WALL SAWS BY HUSQVARNA
$261.03
32
584285601 O-RING 186X1,78 FOR WALL SAWS BY HUSQVARNA
$9.00
33
584285701 O-RING 156X1,78 FOR WALL SAWS BY HUSQVARNA
$7.72
34
584275201 TRANSMISSION COVER, SS FOR WALL SAWS BY HUSQVARNA
$219.55
35
725628501 SCREW MF6S 4X6 FOR FASTENERS BY HUSQVARNA
$2.95
36
584276001 EDGER PROTECTION, END COVER FOR WALL SAWS BY HUSQVARNA
$117.36
37
584285401 SCREW M6X145 FOR WALL SAWS BY HUSQVARNA
$20.84
38
582904901 CROSSBAR W/SHOCK ABSORBR WSC40 FOR WALL SAWS BY HUSQVARNA
$407.74
39
584275701 INLET WATER PIPE FOR WALL SAWS BY HUSQVARNA
$273.17
40
584275801 HANDLE, CHAIN TENSIONER FOR WALL SAWS BY HUSQVARNA
$158.85
41
531118218 QD COUPLING: 13410-M 1/4"BSP FOR WALL SAWS BY HUSQVARNA
$23.17
42
584277201 STRUT, LEFT FOR GUARD FOR WALL SAWS BY HUSQVARNA
$488.68
43
584277202 STRUT, RIGHT FOR GUARD FOR WALL SAWS BY HUSQVARNA
$488.68
44
584277301 HOLDER, FOR GUARD FOR WALL SAWS BY HUSQVARNA
$639.43
45
584275501 ANGLE LIMITER FOR WALL SAWS BY HUSQVARNA
$263.05
46
584277401 PARALLEL ROD FOR WALL SAWS BY HUSQVARNA
$285.31
48
586500801 CLAMP, WSC40 FOR WALL SAWS BY HUSQVARNA
$418.86
49
584277501 ATTACHMENT PLATE FOR WALL SAWS BY HUSQVARNA
$433.03
50
531119446 BEARING WASHER AS 1528 FOR WALL SAWS BY HUSQVARNA
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
