HP1200 Drill Assembly Parts By Makita

HP1200 Drill Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
1
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
31
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
31
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
3
1828417 HOUSING SET, HP1501 BY MAKITA
$24.03
36
1828417 HOUSING SET, HP1501 BY MAKITA
$24.03
4
4154534 CHANGE BUTTON, HP1501 BY MAKITA
$5.99
6
6519867 SWITCH, 6410 BY MAKITA
$32.10
9
CB407 CARBON BRUSH SET, 1950070 BY MAKITA
$10.03
10
6439235 BRUSH HOLDER, HR2410 BY MAKITA
$3.99
10
6439366 BRUSH HOLDER, 6821 BY MAKITA
$5.99
11
9219199 BOLT M8X10, HP2030 BY MAKITA
$5.99
12
4154851 GRIP BASE, HP2030 BY MAKITA
$8.07
13
1524899 GRIP 36, HR2410 BY MAKITA
$5.99
15
2514253 FLAT SCREW M6X22, NHP1310 BY MAKITA
$3.99
15
2514693 F.H. SCREW 6X25, HP2032 BY MAKITA
$3.99
17
3237579 SPINDLE, HP1500 BY MAKITA
$26.69
17
3237579 SPINDLE, HP1500 BY MAKITA
$26.69
18
2330918 COMP. SPRING 16, HP2030 BY MAKITA
$3.99
19
2112017 B. BEARING 6002LLB, 6510LVR BY MAKITA
$16.66
20
9610559 RETAINING RING S15, 5007F BY MAKITA
$3.99
21
2264236 HELICAL GEAR 41, HP1501 BY MAKITA
$10.70
22
2160010 STEEL BALL 3.5, LXDT08 BY MAKITA
$3.99
22
2160028 STEEL BALL 4.8, WT01W BY MAKITA
$3.99
23
3444196 CHANGE PLATE, HP1501 BY MAKITA
$3.99
24
2321343 LEAF SPRING, HP1501 BY MAKITA
$3.99
25
1525293 CAM HOLDER CPL.,HP1501 BY MAKITA
$11.96
26
2100258 BALL BEARING 627LLB, XWT04 BY MAKITA
$9.98
27
6333017 FIELD 115V, HP1501 BY MAKITA
$38.43
28
5171062 ARMATURE ASS'Y 115V, HP1501 BY MAKITA
$67.00
29
2110316 BALL BEARING 608LLB, 9227C BY MAKITA
$11.91
30
2625288 SLEEVE 7, HP1501 BY MAKITA
$3.99
32
6870639 STRAIN RELIEF, BO5030 BY MAKITA
$3.99
33
6825498 CORD GUARD 8, HP1640 BY MAKITA
$5.99
34
6648812 CORD BY MAKITA
$10.70
35
819063-3 8190633 Makita Label, Da3010F fits Makita HM1211B Demolition Hammer
$3.99
37
2562515 PIN 4, HP2050F BY MAKITA
$3.99
2
Call for Price call for price call for price
16
Call for Price call for price call for price
16
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

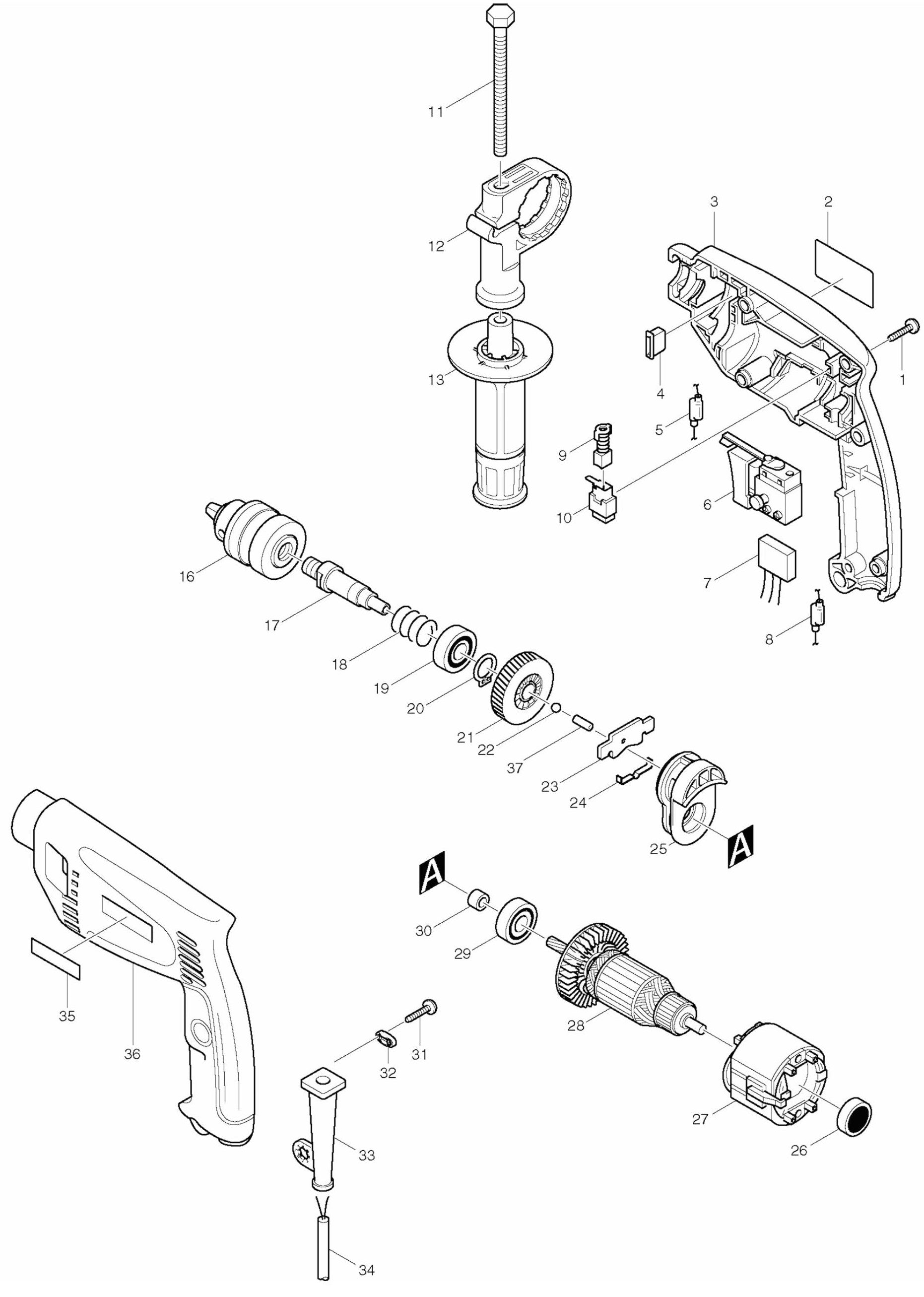

How do I use this diagram?
