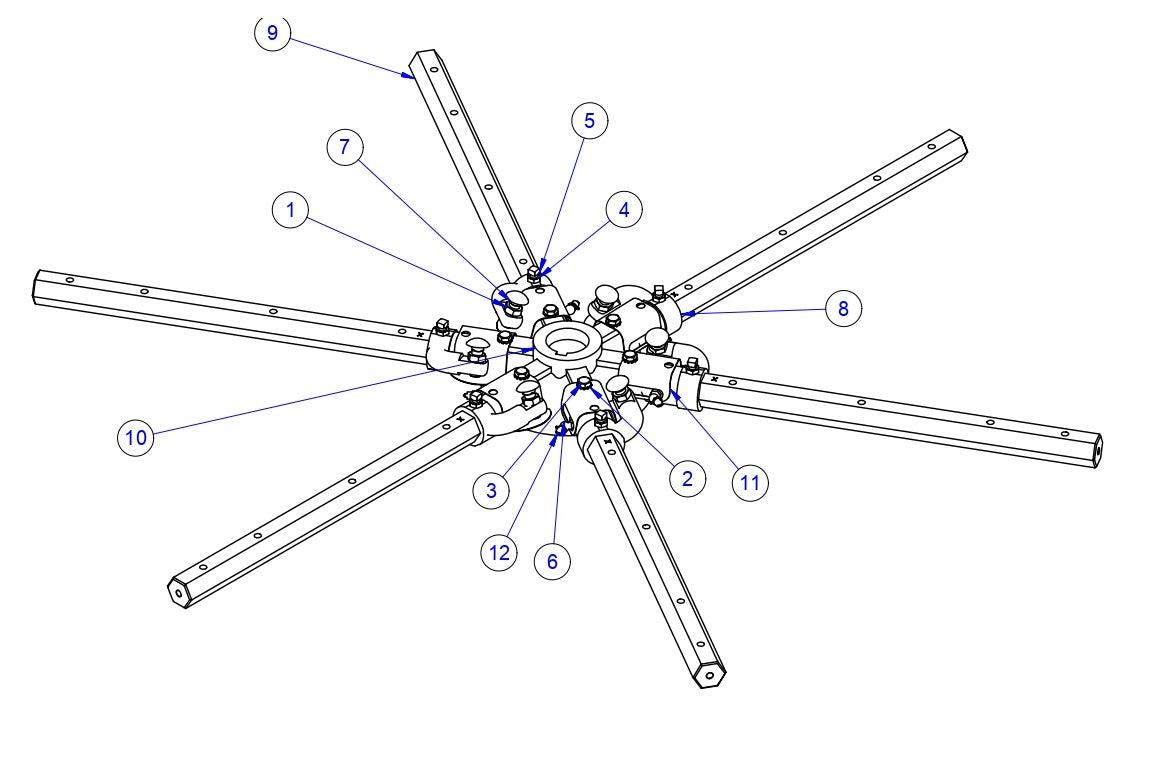

HP205 (Pre-2025) LH Spider Assembly Parts by Allen Engineering

HP205 (Pre-2025) LH Spider Assembly Parts by Allen Engineering

  • HP205 High Performance Riders Left Hand Spider Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
-
049538 Spider Assy, Lh Shd 1200-6 by Allen Enginnering
$2,801.25
1
010050 Fstn, Nut Hex Jam 1/2-13 Grd8 by Allen Enginnering
$3.99
2
015682 Fstn, Lw Ext Star 3/8 by Allen Enginnering
$4.95
3
015683 Fstn, 3/8-16 X 7/8 Dog Cap Screw (P by Allen Enginnering
$7.20
4
015684 Fstn, Nut Hex Jam 3/8-16 Gr8 by Allen Enginnering
$4.95
5
015686 Fstn, Sqhss 3/8-16 X 1 by Allen Enginnering
$2.99
6
024755 Fitting,1/8-27 Npt 45° Grease by Allen Enginnering
$5.99
7
028216 Fstn, Cablt 1/2-13 X 1-1/2 Gr8 by Allen Enginnering
$7.20
8
033034 Lever, Lift Sd Universal by Allen Enginnering
$62.04
9
049533 Trowel Arm F/ 6 Boss Spider Assy "G" by Allen Enginnering
$246.51
10
064198 Spider Boss, 6 Blade Universal by Allen Enginnering
$633.08
11
051043 Clip, Temporary Spring by Allen Enginnering
$43.56
12
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
