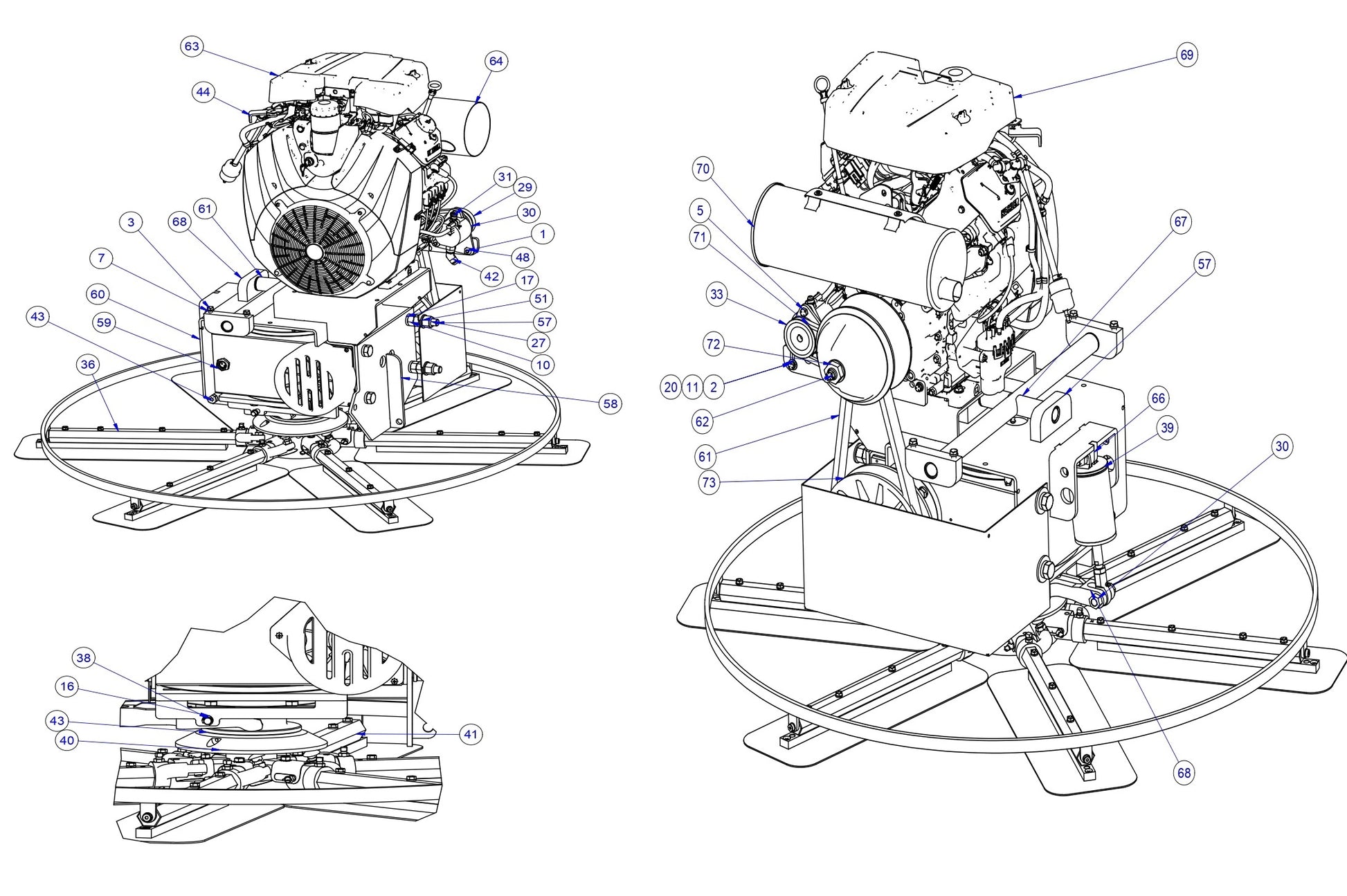

HP205 (Pre-2025) RH Rotor Module Assembly Parts by Allen Engineering

HP205 (Pre-2025) RH Rotor Module Assembly Parts by Allen Engineering

  • HP205 High Performance Riders Right Hand Rotor Module Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
010020 Fstn Hhcs 5/16-18 X 1 Grd8 by Allen Enginnering
$4.95
3
010024 Fstn, Hhcs 5/16-18 X 2 Gr8 by Allen Enginnering
$4.95
4
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
6
010039 Fstn, Hhcs 3/8-16 X 1-3/4 Gr8 by Allen Enginnering
$4.95
7
010082 Fstn, Fw 5/16 Gr8 by Allen Enginnering
$2.99
9
010087 Fstn, Fw 3/4 by Allen Enginnering
$4.95
11
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
12
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
13
010092 Fstn, Lw 7/16 Gr8 by Allen Enginnering
$2.99
14
010112 Fstn, Nut Hex 3/4-10 Grd8 by Allen Enginnering
$3.99
15
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
16
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
17
015691 Fstn, Shcs 1/2-13 X 1-1/2, Right Hand Thread by Allen Enginnering
$25.20
18
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
19
015694 Plug W-1 Red Plastic Tapered by Allen Enginnering
$2.99
20
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
22
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
23
020688 Fstn, Nut Hex Jam 5/8-18 Rh by Allen Enginnering
$5.99
24
025091 Fstn, 5/16-18X1/2Xø3/8X3/8 Shldr Sc by Allen Enginnering
$9.00
25
025092 Bushing, 3/8 X 1/2 X 5/16 Brnz by Allen Enginnering
$9.00
26
026992 Key, 1/4" Sq X 3-1/8" Lg by Allen Enginnering
$9.00
27
027969 Fstn, Hhcs 5/8-18 X 2 Gr 8 by Allen Enginnering
$7.20
29
042547 FSTN, HHCS 3/4-10 X 1 1/4 GR 8 by Allen Engineering
$5.99
30
043269 Fstn, Nut Stover 5/8-18 by Allen Enginnering
$5.40
31
044129 FSTN, NYLON NUT 3/4-10 by Allen Engineering
$3.99
32
045921 Ftg, F6400-8-8-O Straight Thrd Connector by Allen Enginnering
$12.45
33
046550 Pulley, Ak30 X 1/2 Bore W/2Ss by Allen Enginnering
$125.40
34
046738 Pump, Gear 3.2Cc 1200C by Allen Enginnering
$1,120.50
35
046777 FTG, F6400-6-4-O STR JIC-SAE by Allen Engineering
$9.72
36
047354 Fstn, Hhcs 5/8-18X2-1/4 Gr8 Yzplt by Allen Enginnering
$9.00
38
048628 Pin, Yoke X1 by Allen Enginnering
$91.20
39
048659 Cylinder, Pitch X1 by Allen Enginnering
$1,788.32
40
049537 Pressure Plate by Allen Enginnering
$583.78
41
049538 Spider Assy, Lh Shd 1200-6 by Allen Enginnering
$2,801.25
42
049543 Ring, Stabilizer by Allen Enginnering
$760.82
43
049599 Cap, Pressure Plate by Allen Enginnering
$571.46
44
049697 Bearing,Ball Thrust by Allen Enginnering
$437.00
45
049708 Washer, Retaining by Allen Enginnering
$41.09
47
052927 FTG, HYD F6502-8-8, 45 DEG SWIVEL ELBOW by Allen Engineering
$26.40
48
053223 Key, 3/16 X 1/4 X 3 by Allen Enginnering
$9.00
49
053385 Bracket, Throttle by Allen Enginnering
$33.62
51
056775 Sheave Ak30X1-1/8 by Allen Enginnering
$66.11
55
059513 Spacer by Allen Enginnering
$14.40
56
059776 Fstn, Fw 3/4" Grade 8 Yellow Zinc by Allen Enginnering
$6.23
57
066253 Bearing Assembly by Allen Enginnering
$191.61
58
060865 FSTN, WASHER 2" OD X 1/2" ID by Allen Engineering
$9.72
59
060870 FSTN, HHCS 7/16-20 X 3/4 GR8 by Allen Engineering
$3.99
61
063930 Belt, Cvt by Allen Enginnering
$397.78
62
064574 FSTN, HHCS 7/16-20 X 4 GR 8 by Allen Engineering
$9.72
65
064614 GEARBOX ASSEMBLY RH - HP205 by Allen Engineering
$9,720.00
66
064655 Engine Mnt, Gearbox Housing by Allen Enginnering
$1,034.22
67
064656 CROSSHEAD WELDMENT, L,R & F&R by Allen Engineering
$783.60
69
065825 Engine, Kohler Pa-Ech980-3012 by Allen Enginnering
$10,084.50
70
065876 MUFFLER RH FOR CH980 # 62 068 16-S by Allen Engineering
$475.20
71
065907 Belt, 3L230 by Allen Enginnering
$19.05
72
065967 Clutch, Driver, Msp445 & Hp205 by Allen Enginnering
$1,456.65
73
066107 Driven Pulley Msp465 & Msp475 by Allen Enginnering
$960.27
