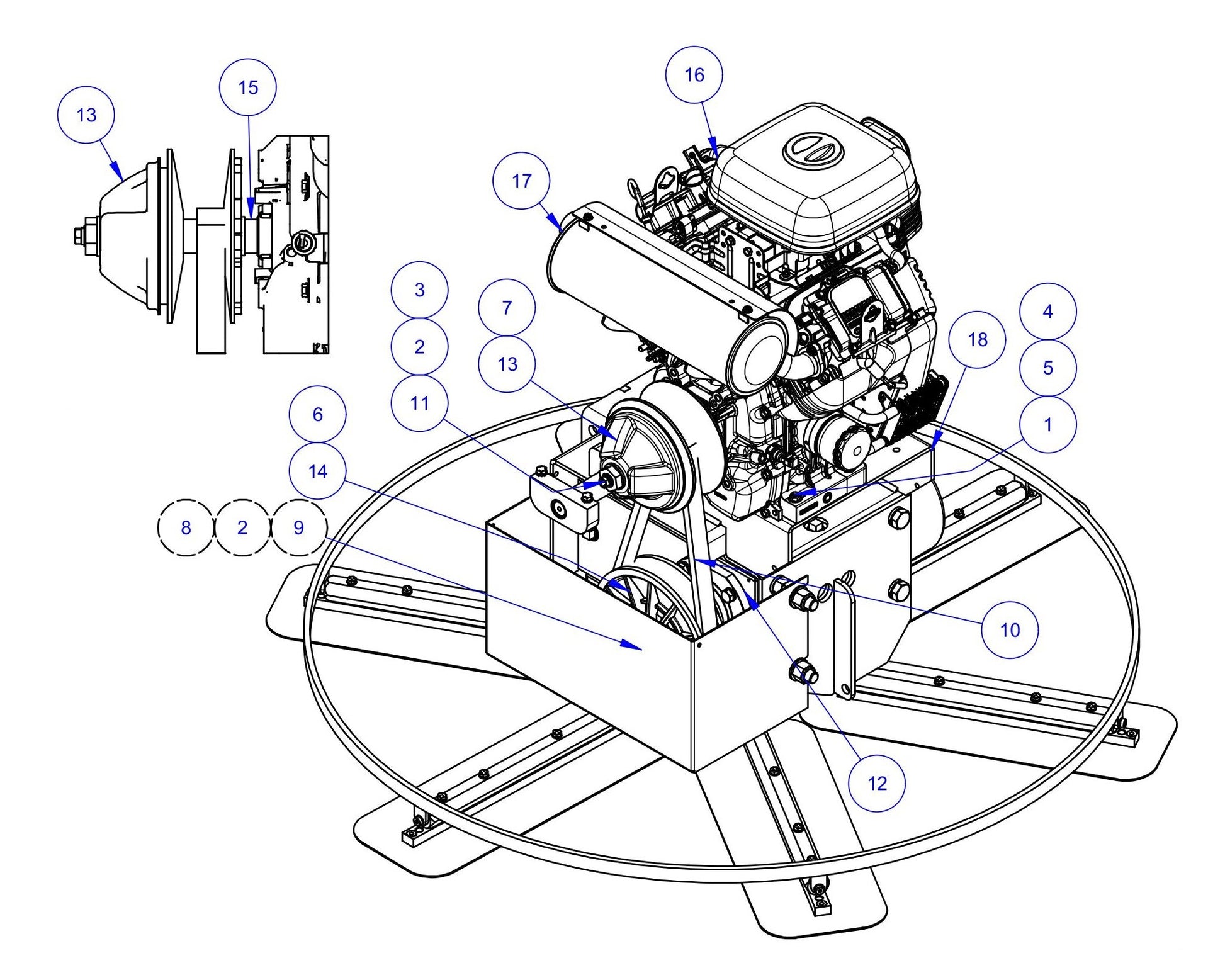

HP205 LH Rotor-Vanguard Assembly Parts

HP205 LH Rotor-Vanguard Assembly Parts

  • HP205 LH Rotor-Vanguard Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010040 Fstn, Hhcs 3/8-16 X 2 Grd8 by Allen Enginnering
$4.95
2
010092 Fstn, Lw 7/16 Gr8 by Allen Enginnering
$2.99
3
010096 Fstn, Fw Hardened Y-Zinc 7/16 by Allen Enginnering
$2.99
4
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
5
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
6
026992 Key, 1/4" Sq X 3-1/8" Lg by Allen Enginnering
$9.00
7
053223 Key, 3/16 X 1/4 X 3 by Allen Enginnering
$9.00
8
060865 FSTN, WASHER 2" OD X 1/2" ID by Allen Engineering
$9.72
9
060870 FSTN, HHCS 7/16-20 X 3/4 GR8 by Allen Engineering
$3.99
10
063930 Belt, Cvt by Allen Enginnering
$397.78
11
064574 FSTN, HHCS 7/16-20 X 4 GR 8 by Allen Engineering
$9.72
12
064613 Gearbox Assembly Lh - Hp205 by Allen Enginnering
$14,769.31
13
065967 Clutch, Driver, Msp445 & Hp205 by Allen Enginnering
$1,456.65
14
066107 Driven Pulley Msp465 & Msp475 by Allen Enginnering
$960.27
15
076032 SPACER, CLUTCH FOR MSP445 BRIGGS by Allen Engineering
$92.40
17
076039 MUFFLER, BRIGGS VANGUARD 40 HP EFI by Allen Engineering
$316.80
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
