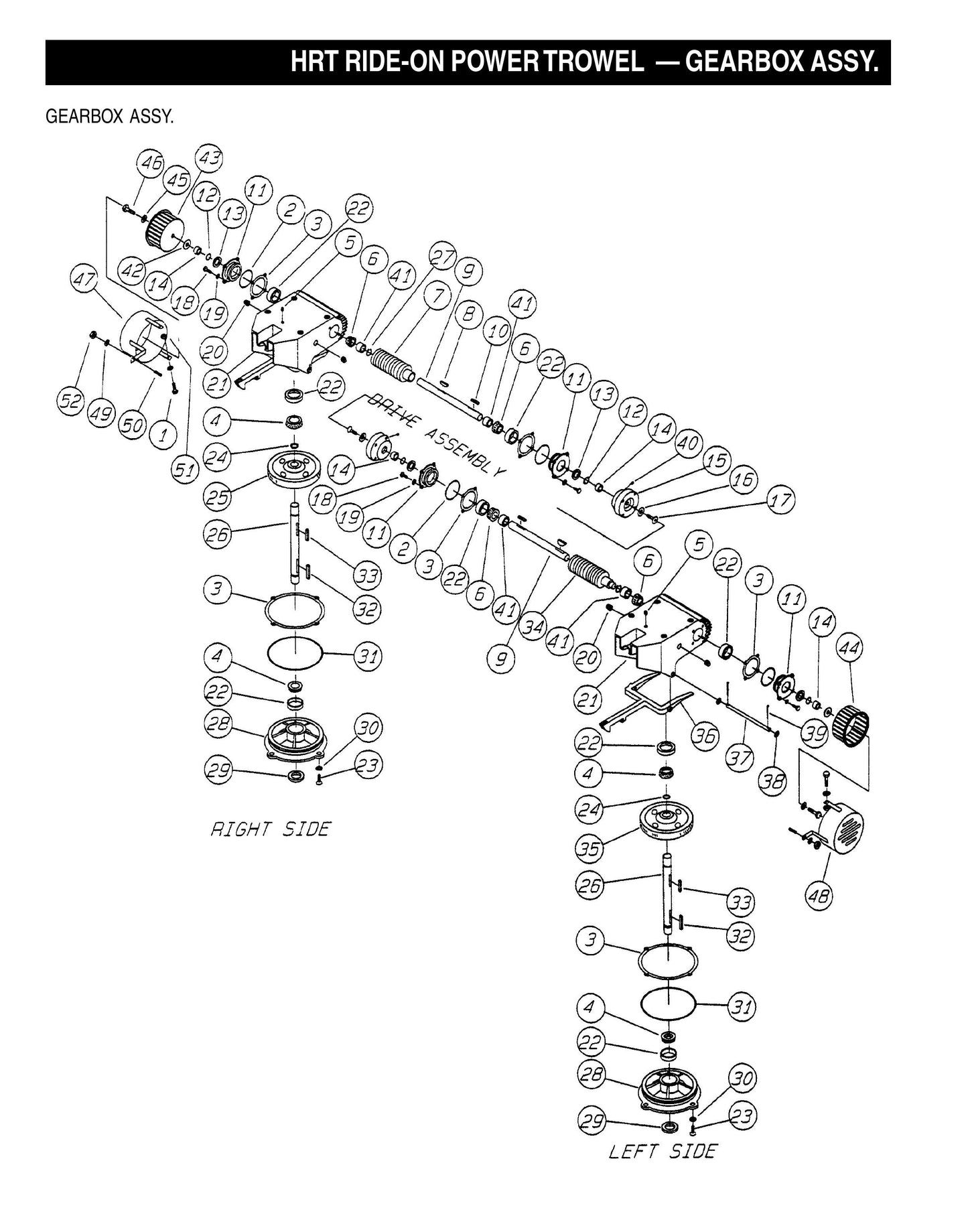

HRT Ride-On Power Trowel-Gearbox Assembly (Fig 2)

HRT Ride-On Power Trowel-Gearbox Assembly (Fig 2)

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
31
9038 O- Ring for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$9.58
32
9183 Square Key 5/16 X 5/16 X 3” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$10.65
33
9180 Square Key 5/16 X 5/16 X 2.1/4” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.99
34
1993 Left Side Worm for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$236.58
35
2001 Left Side Worm Gear (Bronze) for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$757.53
36
9027 Yoke Arm for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$141.10
37
9028 Yoke Pin for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$13.24
38
10136 Flat Washer 3/8" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
39
0683 Cotter Pin 3/32” X 3/4” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$60.64
41
9042 Spacer for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$26.22
42
10930 Fender Washer 1/4” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
43
10921 Fan (C.W.) for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$7.17
44
10922 Fan (Ccw) for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$6.97
45
0948 Flat Washer 1/4 " for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
46
0424 Hhcs 1/4- 20 X 1.1/4” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
47
10894 Right Side Fan Cover for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$56.93
48
10893 Left Side Fan Cover for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$42.70
49
2203 Flat Washer #10 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
50
10989 Stud 10- 32 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
51
0937 Hex Nut 10- 32 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
52
10019 Lock Nut 10- 32 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
52
2619 Bearing Replacement Kit for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$255.96
52
10950 Right Side Gearbox Asm. for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$2,653.96
52
10951 Left Side Gearbox Asm. for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$2,823.43
40
10138 Shss 1/4- 20 X 1/2” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
