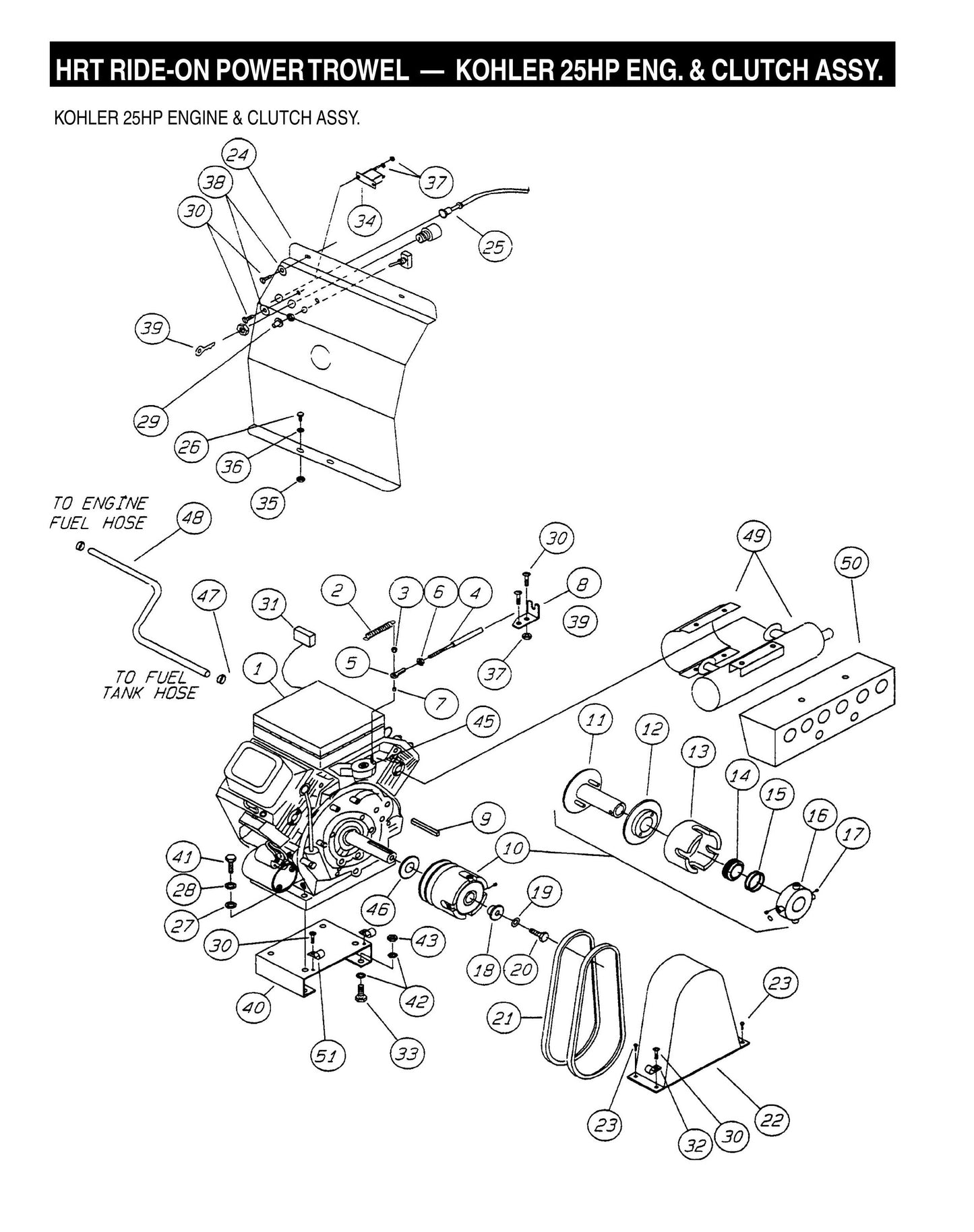

HRT Ride-On Power Trowel-Kohler 25 HP Engine and Clutch Assembly (Fig 2)

HRT Ride-On Power Trowel-Kohler 25 HP Engine and Clutch Assembly (Fig 2)

  • HRT Ride-On Power Trowel-Kohler 25 HP Engine and Clutch Assembly (Fig 2)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
31
2655 Hour Meter for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$69.59
33
0205 Hhcs 3/8- 16 X 1” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
34
2673 Circuit Breaker for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$10.89
35
10024 Lock Nut 1/4- 20 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
36
0948 Flat Washer 1/4 " for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
37
10019 Lock Nut 10- 32 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
38
2203 Flat Washer #10 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
39
11078 Ignition Key for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$3.82
40
10381 Engine Adapter for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$96.75
41
0105 Hhcs 5/16- 18 X 1.1/2” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$223.33
42
10136 Flat Washer 3/8" for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
43
10133 Lock Nut 3/8- 16 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
45
10018 Shcs 10- 32 X 1” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
48
10691 Fuel Hose for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
49
11031 Muffler Kit for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$469.46
50
11037 Muffler Shield for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$95.94
32
8126 Hose Clamp for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$5.99
44
4682 Switch for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$17.30
47
19473 Hose Clamp for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$1.93
51
8128 Hose Clamp for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$2.10
46
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
