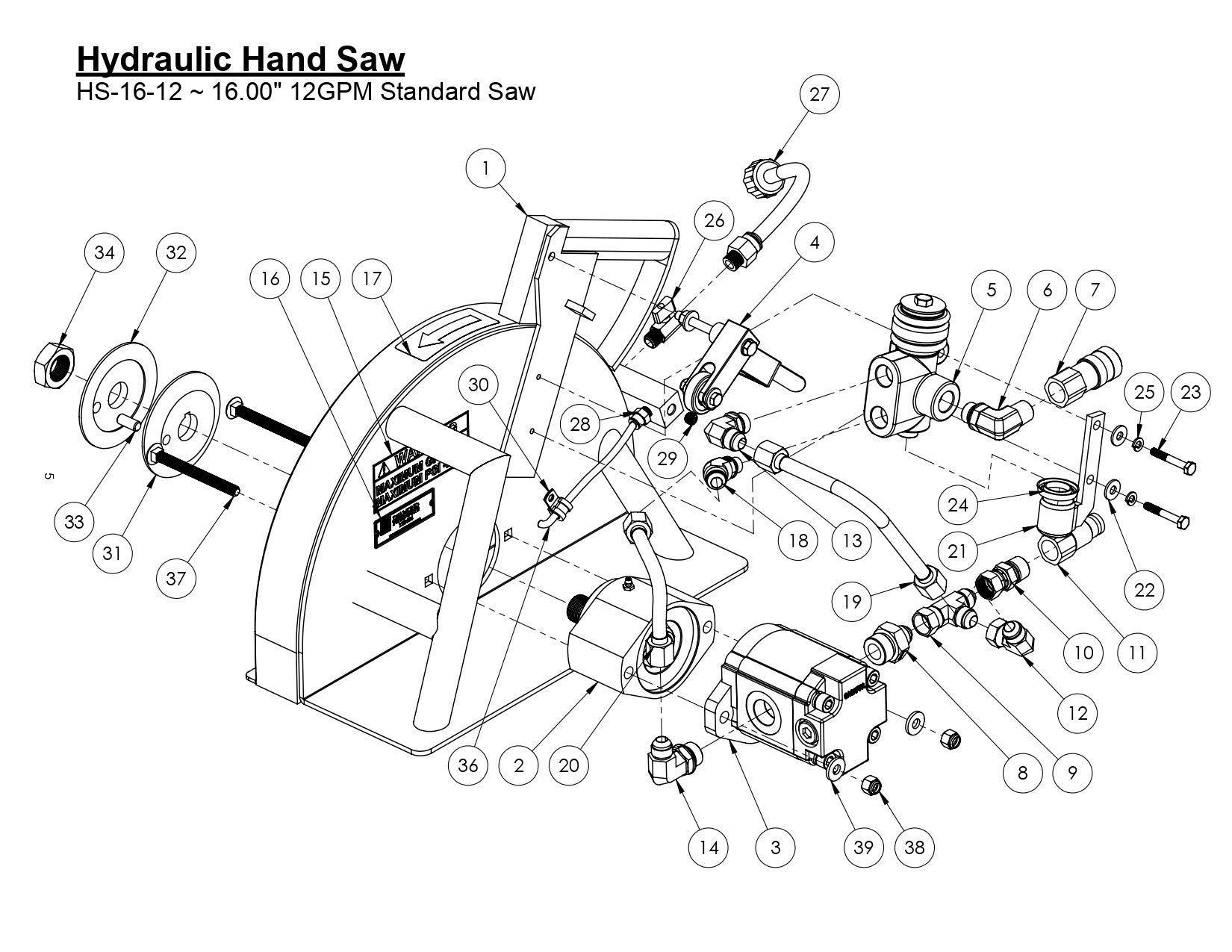

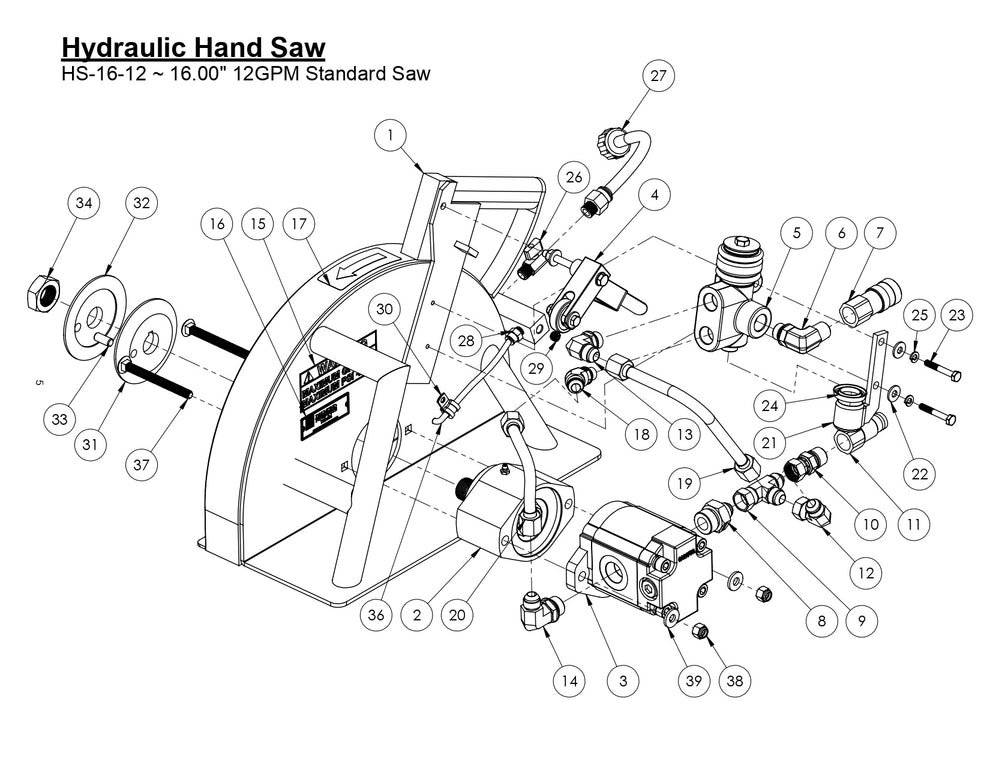

HS-16-12 Hydraulic Hand Saw Assembly Parts

HS-16-12 Hydraulic Hand Saw Assembly Parts

  • HS-16-12 Hydraulic Hand Saw
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6050223 16.00" Hand Saw Frame for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$934.56
2
6040436 Bearing Block Assembly (Regular) for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$925.65
3
2600458 Cassappa Hyd. Motor, 1.29ci W/Anti-Cav Plate for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$1,006.80
4
6070418 Regular Hydrualic Hand Saw Single Trigger Assembly for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$274.23
5
6070252 HS Metro Valve Assembly for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$437.58
6
3205555 Elbow, 1/2" MORB x 1/2" MPT 90 Deg. for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$37.66
7
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
8
2502920 Adaptor, #12 O-Ring x 1/2 MJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$10.76
9
3200332 Swivel Run Tee, 08-MJIC x 08-MJIC x 08-FJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
10
3201274 Adaptor Fitting, 1/2" MPT x 1/2" FJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$20.45
11
3200105 Nipple, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
12
3200802 Elbow Fitting, 1/2"MJIC x 1/2" FJIC 90 Deg. for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
13
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$14.93
14
3200803 Elbow Fitting, 1/2" MJIC x 5/8" MORB for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
15
1800864 Label, 12GPM 2500 PSI for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
Call for Price call for price call for price
16
1800169 DP S/N Nameplate for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$21.24
17
1800865 Rotation Label for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.31
18
3200367 08-ORING x 08-MJIC 45�� for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
19
6070446 16.00 Hand Saw Rear Hydraulic Tube for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$41.97
20
6070445 16.00" Hand Saw Front Hydraulic Tube for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$43.44
21
2502911 Valve Cap, Hand Saw 20" & 24" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$91.19
22
2900126 1/4" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
23
2900392 1/4-20 x 1.75" HHCS for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$2.99
24
2505906 U-Cup Seal, 1.00 ID x 1.50 OD for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$7.98
25
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
26
3201271 Water Valve, 1/4"NPT for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$32.28
27
3201875 Hose Assy, 3/8" x 12, 3/4" F.Garden x 1/4"MPT for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$43.04
28
2506350 Push-Connect Fitting, 1/4" Tube x 1/8"MPT for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$14.95
29
3201094 1/8" Solid Hex-Socket Plug for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$3.99
30
2502914 1/4" Cable/Hose Loop Clamp for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.48
31
6030205 Inner Flange 4" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$72.00
32
6030206 Outer Flange 4" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$59.62
33
2900605 3/8 x 7/8 Dowel Pin for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.16
34
2900167 1-14 LH Jam Nut for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$24.70
36
1104098 1/4 O.D. Flexible Tubing (Sold Per Inch) for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
Call for Price call for price call for price
37
2903040 3/8-16 x 4.00 Carriage Bolt for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.99
38
2900018 Lock Nut, 3/8-16 Nylon for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$2.99
39
2900567 5/16" Flat Washer for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$2.99
