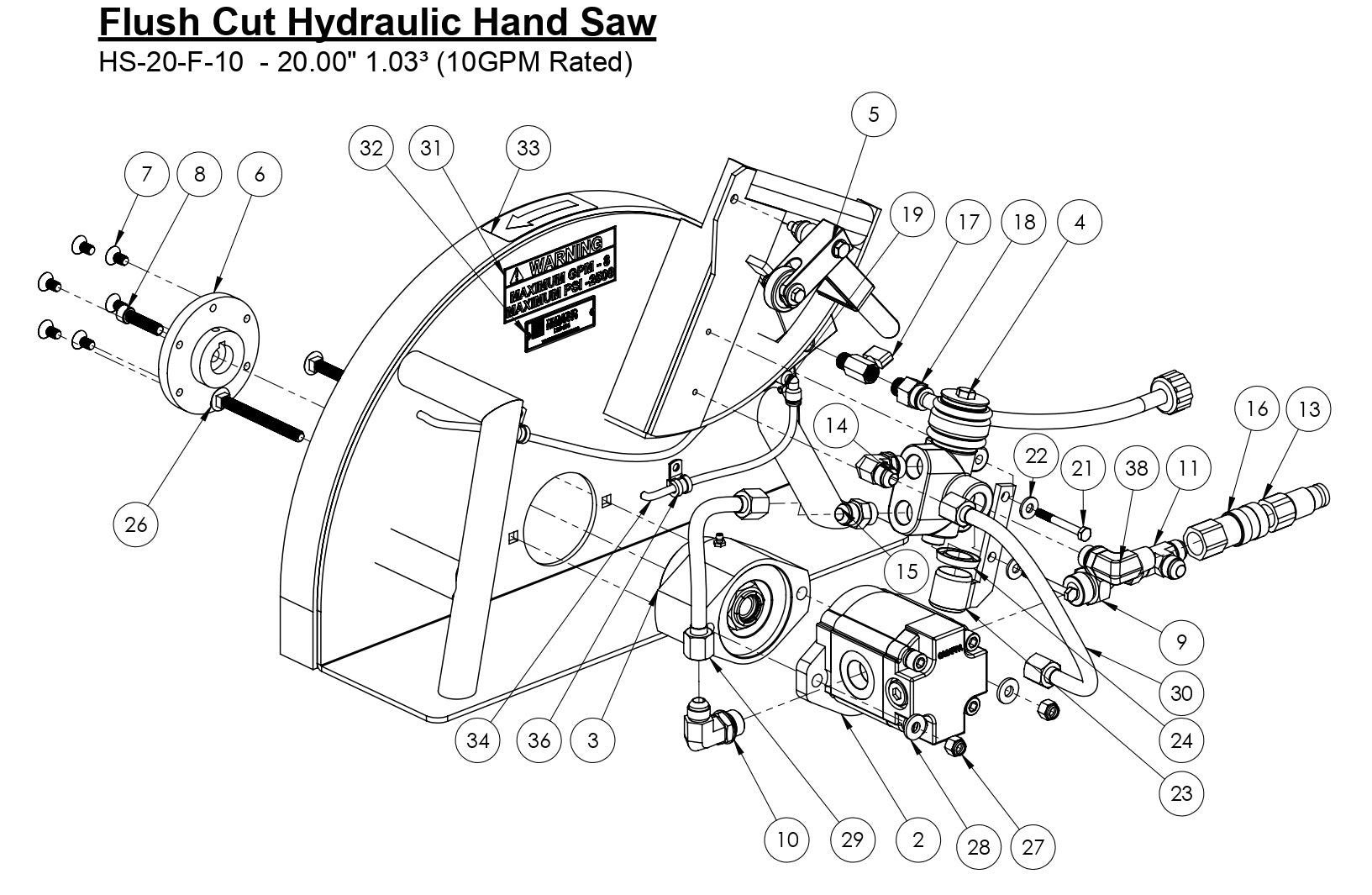

HS-20-F-10 Flush Cut Hydraulic Hand Saw (20.00" 10GPM) Assembly Parts

HS-20-F-10 Flush Cut Hydraulic Hand Saw (20.00" 10GPM) Assembly Parts

  • HS-20-F-10 Flush Cut Hydraulic Hand Saw (20.00" 10GPM)
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2503512 20.00" Core Cut Hand Saw for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$940.80
2
2600460 Cassappa Hyd. Motor, 1.03ci W/Anti-Cav Plate for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$1,066.23
3
6040437 Bearing Block, Core Cut for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$922.68
4
6070252 HS Metro Valve Assembly for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$437.58
5
6070416 Hydrualic Hand Saw Single Trigger Assembly for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$285.12
6
2502545 Core Cut Hub for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$596.97
7
2903013 5/16-18 Flat Socket Head Cap Screw for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
8
2900357 3/8-16 x 1.50" SHCS for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$3.99
9
2502920 Adaptor, #12 O-Ring x 1/2 MJIC for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$10.76
10
3200803 Elbow Fitting, 1/2" MJIC x 5/8" MORB for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
11
3200332 Swivel Run Tee, 08-MJIC x 08-MJIC x 08-FJIC for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
12
3201274 Adaptor Fitting, 1/2" MPT x 1/2" FJIC for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$20.45
13
3200105 Nipple, 1/2" Q.D. for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$59.14
14
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$14.93
15
2702689 Fitting, 1/2"MORB x 1/2" MJIC for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$6.91
16
3200104 Coupler, 1/2" Q.D. for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$102.89
17
3201271 Water Valve, 1/4"NPT for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$32.28
18
3201875 Hose Assy, 3/8" x 12, 3/4" F.Garden x 1/4"MPT for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$43.04
19
2506348 Push Quick Fitting, Male Elbow 1/8NPT x .250 OD for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$13.99
20
2506350 Push-Connect Fitting, 1/4" Tube x 1/8"MPT for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$14.95
21
2901000 1/4-20 x 2.25" HHCS for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
22
2900126 1/4" USS Flat Washer for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
23
2502911 Valve Cap, Hand Saw 20" & 24" for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$91.19
24
2505906 U-Cup Seal, 1.00 ID x 1.50 OD for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$7.98
25
2900010 1/4-20 Nylon-Insert Hex Locknut for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
26
2903040 3/8-16 x 4.00 Carriage Bolt for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$6.99
27
2900018 Lock Nut, 3/8-16 Nylon for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
28
2900567 5/16" Flat Washer for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
29
6070466 20.00" Hand Saw Front Tube Assembly for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
30
6070467 20.00" Hand Saw Rear Hydraulic Tube Warning for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
31
1800863 Label, 10GPM 2500 PSI for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
32
1800169 DP S/N Nameplate for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$21.24
33
1800865 Rotation Label for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$6.31
34
1104098 1/4" O.D. Flexible Tubing (Sold Per Inch) for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
36
2502914 1/4" Cable/Hose Loop Clamp for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$6.48
37
3201094 1/8" Solid Hex-Socket Plug for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$3.99
38
3205555 Elbow, 1/2" MORB x 1/2" MPT 90 Deg. for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$37.66
