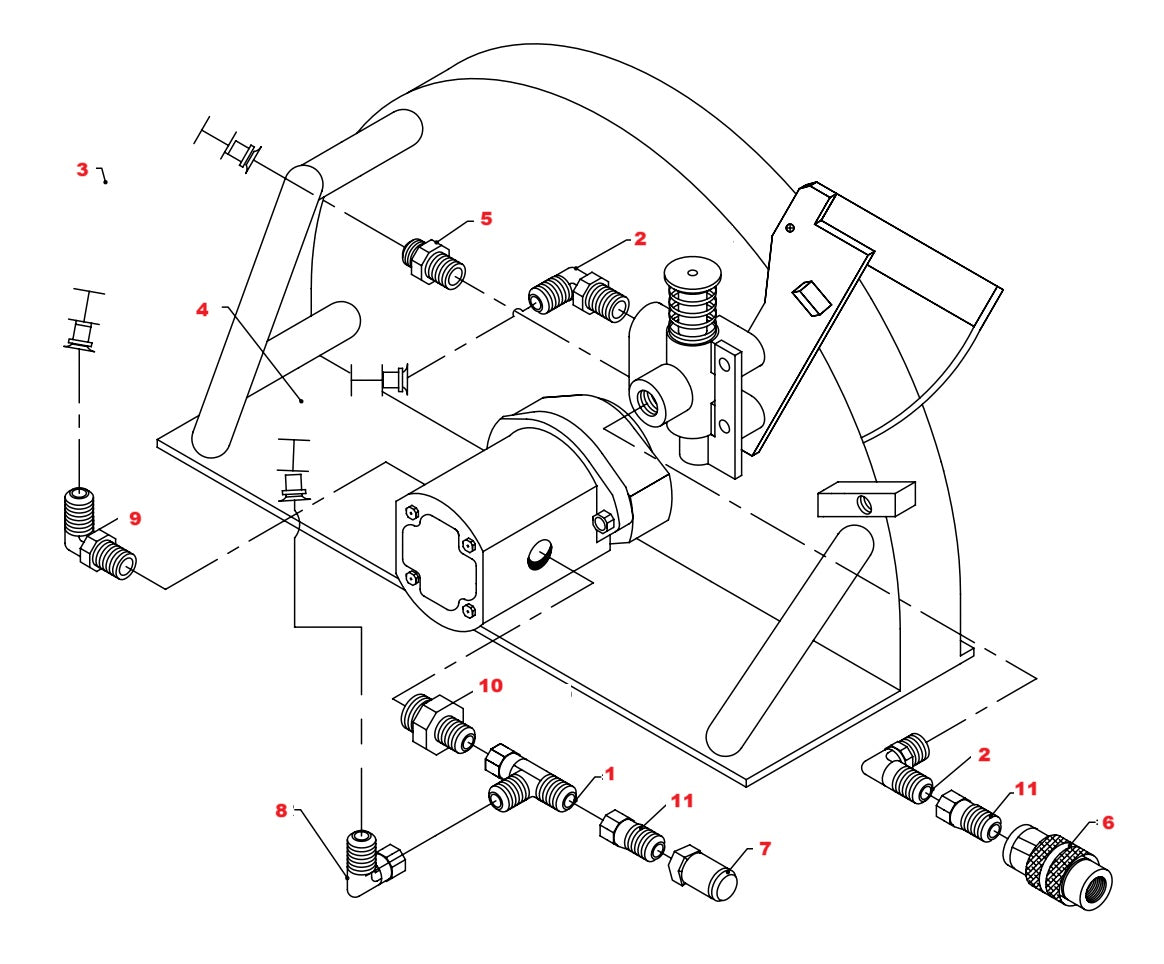

HS-20F Flush Cut Hydraulic Hand Saw Assembly Parts-3

HS-20F Flush Cut Hydraulic Hand Saw Assembly Parts-3

  • HS-20F Flush Cut Hydraulic Hand Saw Assembly Parts-3
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502921 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502924 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$14.93
3
2503334 Tube Assembly for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$109.00
4
2503335 Tube Assembly for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$104.67
5
2702689 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.91
6
3200764 1/2 QD Female for HS-20 Hand Saw by Diamond Products
$220.77
7
3200765 1/2 inch QD Male Nipple for HS-20 Hand Saw by Diamond Products
$82.86
8
3200802 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
9
3200803 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
10
3200805 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$21.52
11
3201274 1/2" Swivel Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$20.45
