HS-2204-BMH1, HS-2204-CMH1 Pump Assembly Parts by Mi-T-M

HS-2204-BMH1, HS-2204-CMH1 Pump Assembly Parts by Mi-T-M

  • HS-2204-BMH1, HS-2204-CMH1 Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
3
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
4
28-0601 Washer for MiTM Pressure Washers 280601
$85.11
6
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
7
39-0020 Plug/Valve for AC1-HE15-05M Air Compressor by Mi-T-M 390020
$45.24
8
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
9
28-0210 Washer for MiTM Pressure Washers 280210
$7.65
10
46-0060 Pump Manifold for AC1-HE15-05M Air Compressor by Mi-T-M 460060
$1,001.67
19
46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659
$21.32
21
46-0057 Adapter Female for AC1-HE15-05M Air Compressor by Mi-T-M 460057
$27.47
22
25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015
$4.55
23
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
24
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
25
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
26
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
27
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
28
48-0004 TAPER ROLLER BEARING BY MITM
$57.38
29
46-0047 Crankcase for AC1-HE15-05M Air Compressor by Mi-T-M 460047
$625.54
30
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
31
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
32
28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
33
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
34
46-0109 Teflon Back-Up Ring for MiTM Pressure Washers 460109
$8.93
35
46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052
$75.11
36
46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146
$5.99
37
46-0055 PISTON ROD BY MITM
$130.08
38
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
39
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
40
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
41
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
42
46-0064 CRANKCASE COVER BY MITM
Call for Price call for price call for price
43
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
44
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
46
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
47
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
48
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
49
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
50
26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049
$30.95
51
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
52
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
54
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
852-0122 Kit Packing Assy 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 8520122
$192.65
View full details

Frequently asked questions

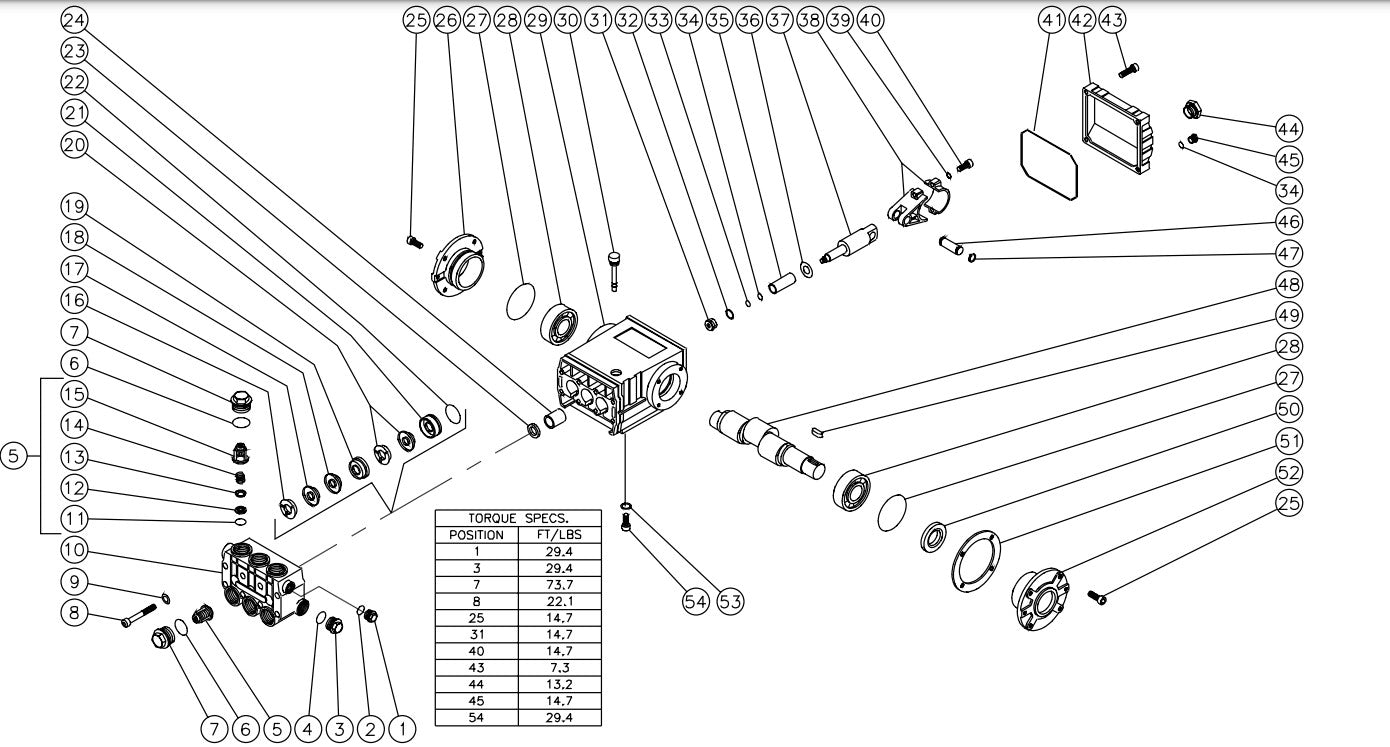

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
