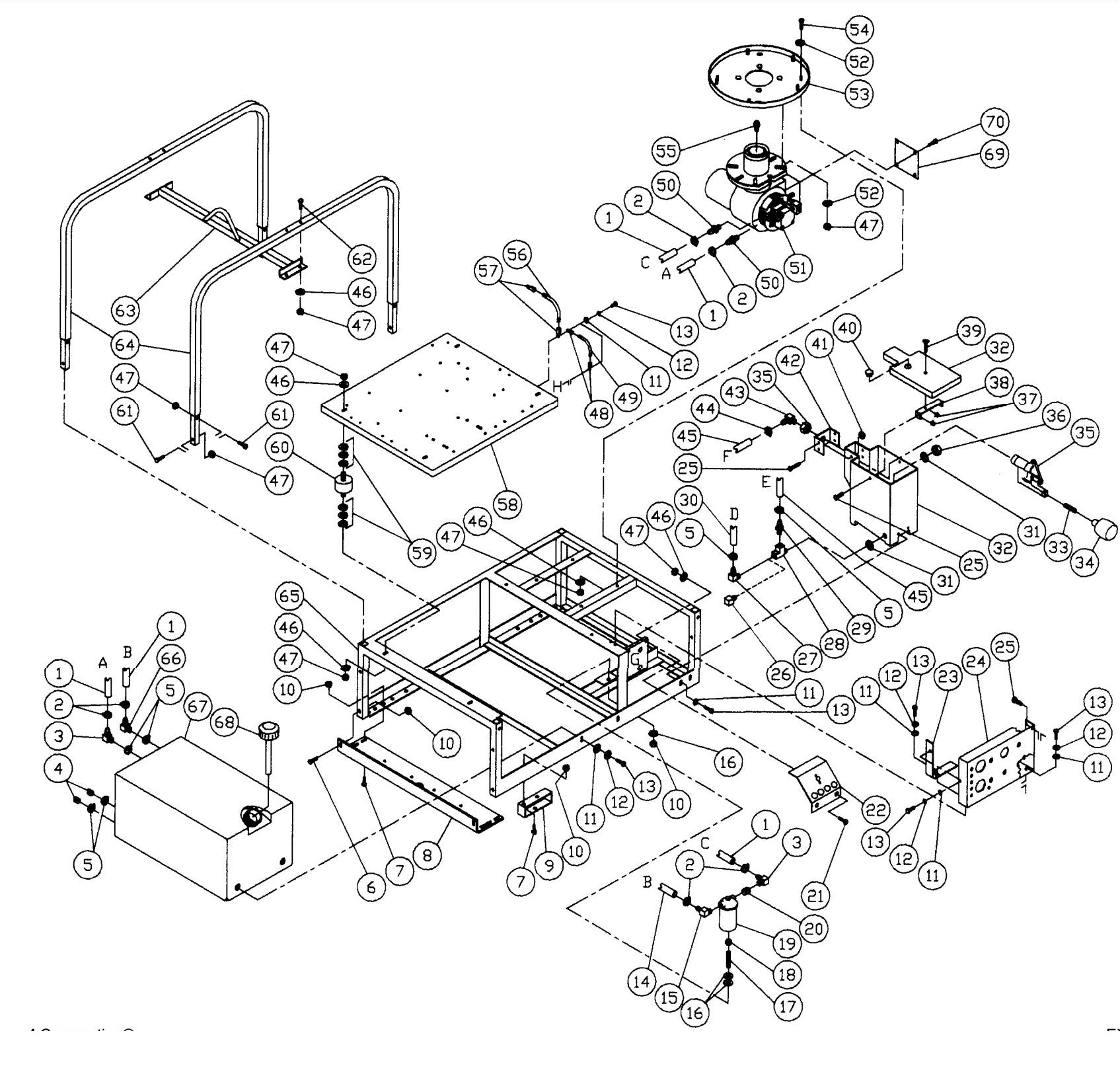

HS-2204-BMH1, HS-3005-DMK0, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M

HS-2204-BMH1, HS-3005-DMK0, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M

  • HS-2204-BMH1, HS-3005-DMK0, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
2
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
3
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
4
24-0009 Plug 1/4"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240009
$3.99
8
20-0251A01 UNDERBRACKET BY MITM
Call for Price call for price call for price
9
20-0312A01 FOOT BY MITM
Call for Price call for price call for price
11
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
11
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
12
23-0074 Elbow 3/8M X 3/8 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230074
$21.00
12
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
15
19-0012 Filter Oil Fuel for AC1-HE15-05M Air Compressor by Mi-T-M 190012
$69.49
18
19-0010 Filter Fuel Replacement for AC1-HE15-05M Air Compressor by Mi-T-M 190010
Call for Price call for price call for price
19
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
19
20-0221A01 PANEL ("B" VERSION ONLY) (BMH1) BY MITM
Call for Price call for price call for price
20
20-0259A01 PANEL BRACE ("C" VERSION ONLY) (CMH1/CMV1) BY MITM
Call for Price call for price call for price
22
62-0034 Panel-Instr Small "C" Version for AC1-HE15-05M Air Compressor by Mi-T-M 620034
$140.32
23
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
24
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
25
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
25
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
27
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
28
12-0035 FLOAT TANK AND LID ASSEMBLY BY MITM
Call for Price call for price call for price
29
31-3318 STUD BY MITM
Call for Price call for price call for price
31
22-0059 Float 1/4-20 Polyethyne for AC1-HE15-05M Air Compressor by Mi-T-M 220059
$7.70
32
22-0058 FLOAT VALVE BY MITM
Call for Price call for price call for price
33
30-9506 NUT BY MITM
$5.40
34
30-2104 U-CLIP NUT BY MITM
Call for Price call for price call for price
35
56-0020 LID BRACKET BY MITM
$0.68
36
27-2953 SCREW BY MITM
$1.35
37
39-0052 PLUG BY MITM
Call for Price call for price call for price
38
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
39
20-0188A01 FLOAT SUPPORT BRACKET BY MITM
$10.80
40
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
41
42-0003 HOSE CLAMP BY MITM
$2.16
42
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
43
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
44
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
45
32-0004 Terminal 10Ga 1/4 Ring Yellow for AC1-HE15-05M Air Compressor by Mi-T-M 320004
Call for Price call for price call for price
46
32-0091 Wire 12Ga Black Strd for AC1-HE15-05M Air Compressor by Mi-T-M 320091
$2.85
47
4-0009 Burner Oil Sm 120V for AC1-HE15-05M Air Compressor by Mi-T-M 40009
$661.40
48
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
49
850-0066 Weldment Spun Pan 15-1/2 Lg for AC1-HE15-05M Air Compressor by Mi-T-M 8500066
$102.09
51
18-0177 FUEL NOZZLE HS-2204-BMH1/CMH1 BY MITM
$13.85
52
18-0178 Nozzle Oil 2.75X80Deg A Hollow for AC1-HE15-05M Air Compressor by Mi-T-M 180178
$20.32
53
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
55
32-0098 TERMINAL ("C" VERSION ONLY) (CMH1/CMV1) BY MITM
$4.05
55
5-0071A01 ISOLATION PLATE BY MITM
Call for Price call for price call for price
56
28-0057 WASHER BY MITM
$0.68
57
33-0028 Vib/Iso 1-3/8"Dia X 1"Height for AC1-HE15-05M Air Compressor by Mi-T-M 330028
$10.84
58
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
59
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
60
20-0306A01 LIFT HOOK ASSEMBLY BY MITM
Call for Price call for price call for price
61
5-0091A01 SKID FRAME BY MITM
$475.88
62
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
63
12-0036 FUEL TANK BY MITM
$168.75
65
12-0037 FUEL CAP BY MITM
$66.15
66
33-0017 BLANK COVER BY MITM
$5.21
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
