HS-2204-BMH1 Motor//Pump Assembly Parts by Mi-T-M

HS-2204-BMH1 Motor//Pump Assembly Parts by Mi-T-M

  • HS-2204-BMH1 Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
3
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
4
13-0084A01 BRACKET TIGHTENER BY MITM
Call for Price call for price call for price
5
6-0040A01 BELT GUARD BY MITM
Call for Price call for price call for price
6
27-0526 BOLT BY MITM
$0.68
7
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
8
20-0220A01 ANGLE TIGHTENER BY MITM
Call for Price call for price call for price
9
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
10
850-0096 32-0103 Generator W/Nut Welded for AC1-HE15-05M Air Compressor by Mi-T-M 8500096
$1,433.69
13
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
16
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
17
8-0012 Unloader K 7.0 Regulating for AC1-HE15-05M Air Compressor by Mi-T-M 80012
$245.19
18
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
20
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
21
15-0015 Obsolete for AC1-HE15-05M Air Compressor by Mi-T-M 150015
Call for Price call for price call for price
22
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
23
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
24
24-0004 Elbow 3/8Mpx1/4Fp 90Steelforge for AC1-HE15-05M Air Compressor by Mi-T-M 240004
$24.89
25
22-0046 Safety Valve 1/4M 3Kpsi 6Gpm for AC1-HE15-05M Air Compressor by Mi-T-M 220046
$45.99
26
42-0003 HOSE CLAMP BY MITM
$2.16
27
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
28
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
29
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
30
24-0009 Plug 1/4"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240009
$3.99
32
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
33
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
36
51-0010 Manifold Unloader for AC1-HE15-05M Air Compressor by Mi-T-M 510010
$75.16
37
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
38
850-0173 NIPPLE BY MITM
$46.71
39
23-0071 Cross 1/2" All F Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230071
$43.47
40
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
41
24-0057 Elbow 3/8Mx3/8Fswiv 90 Deg-Stl for AC1-HE15-05M Air Compressor by Mi-T-M 240057
$20.90
42
3-0008 Pump Rh 4.5 Gpm At 2200 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 30008
$1,244.52
43
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
44
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
45
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
47
10-0061 Sheave 3Bk45H for AC1-HE15-05M Air Compressor by Mi-T-M 100061
$71.78
48
10-0006 SHEAVE-PUMP BY MITM
Call for Price call for price call for price
50
11-0030 Belt Ax41 for AC1-HE15-05M Air Compressor by Mi-T-M 110030
$35.72
51
1-0039 Engine- 11.0 Hp Honda for MiTM Air Compressors by MiTM 10039
Call for Price call for price call for price
52
26-0136 GASKET BY MITM
$2.10
53
20-0240 OIL PLUG-ADAPTER BY MITM
$25.65
54
22-0080 VALVE BY MITM
$31.05
55
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
56
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
58
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
59
850-0100 COUPLER ASSEMBLY FOR 3005 ONLY BY MITM
$36.45
60
27-0176 BOLE BY MITM
$0.68
61
11-0029 Belt 4L250 for AC1-HE15-05M Air Compressor by Mi-T-M 110029
$16.14
62
28-0005 Washer for MiTM Pressure Washers by MiTM 280005
$4.49
63
10-0028 Sheave Bk40H for AC1-HE15-05M Air Compressor by Mi-T-M 100028
$30.51
65
20-0241A01 BRACE TIGHTENER BY MITM
Call for Price call for price call for price
67
20-0219A01 PUMP MOUNT BY MITM
Call for Price call for price call for price
69
13-0050A01 PUMP TIGHTENER BY MITM
$9.45
70
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
72
27-0178 BOLT BY MITM
$0.81
73
27-0170 Bolt for MiTM Pressure Washers 270170
$7.65
74
5-0071A01 ISOLATION PLATE BY MITM
Call for Price call for price call for price
76
15-0071 Hose 3/8X29" 3000Psi R1 Black for AC1-HE15-05M Air Compressor by Mi-T-M 150071
$27.20
78
46-0066 PUMP FOOT BY MITM
Call for Price call for price call for price
79
43-0073 Key 3/16" X 1-7/8" for AC1-HE15-05M Air Compressor by Mi-T-M 430073
$8.06
80
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
View full details

Frequently asked questions

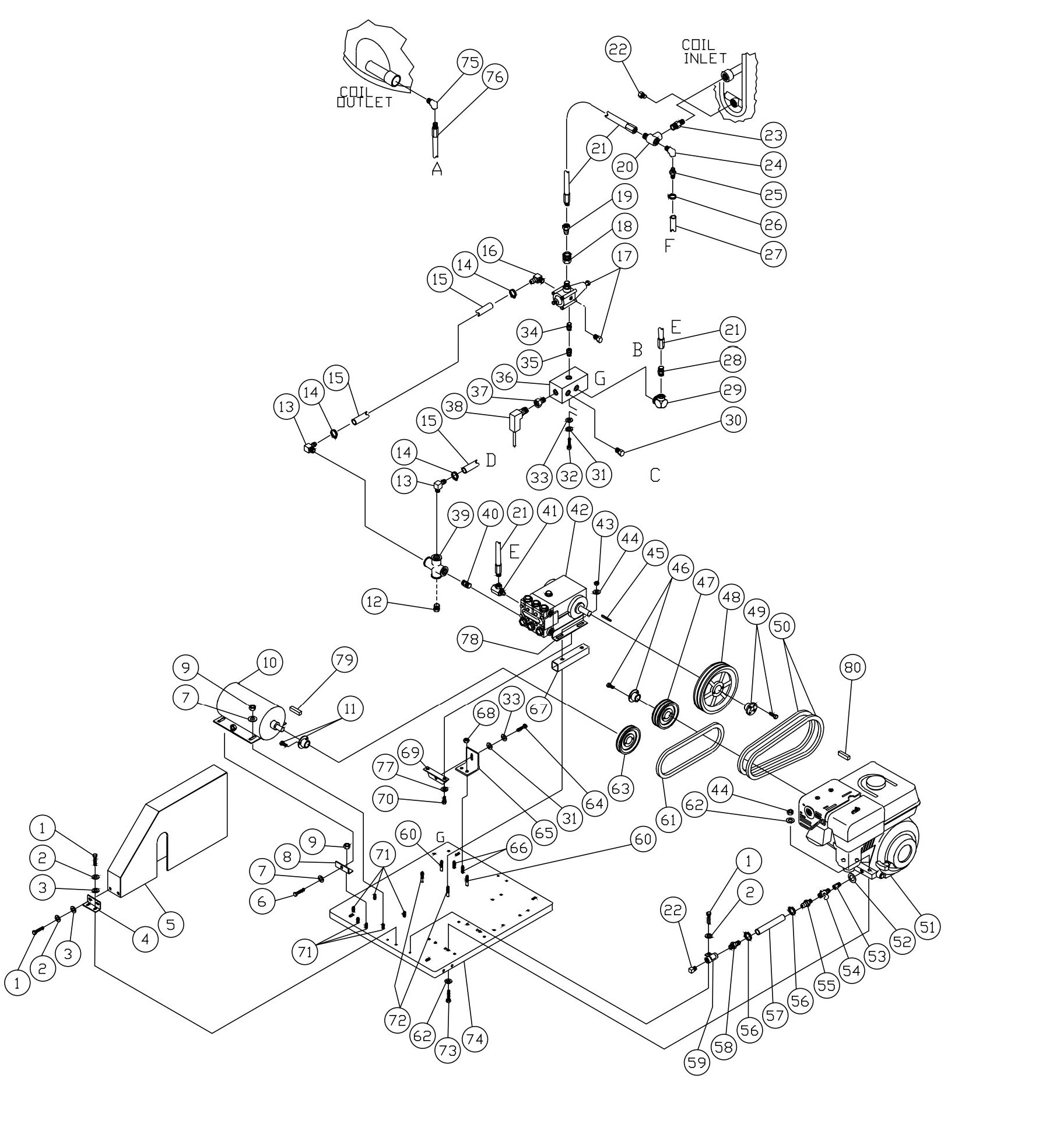

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
