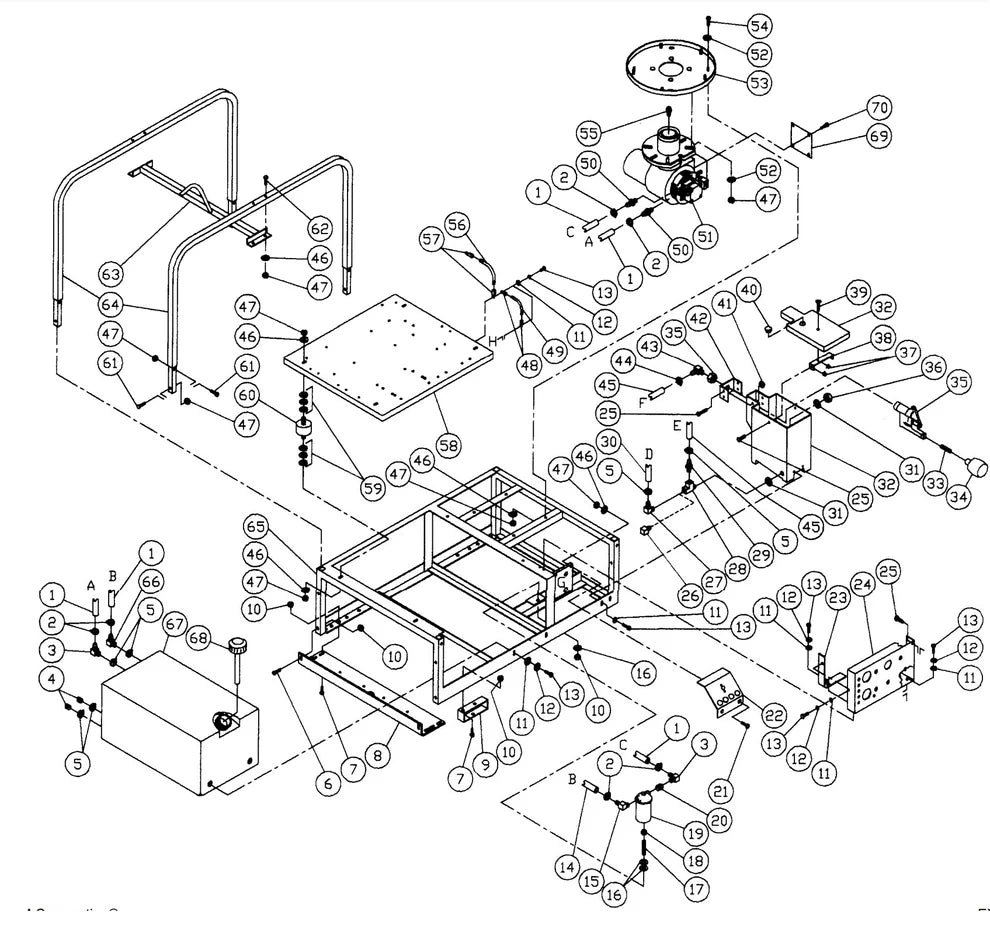

HS-2204-BMH1, HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M

HS-2204-BMH1, HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M

  • HS-2204-BMH1, HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
15-0008 FUEL HOSE *(NINE FEET REQUIRED) (VANGUARD) BY MITM
$4.05
2
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
3
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
4
*24-0009 Plug 1/4"Npt Sq Head Zinc for Mi-T-M CA-2403-0MHB by MiTM 240009
$3.95
5
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
6
27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121
$1.99
7
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
8
20-0251A01 UNDERBRACKET BY MITM
Call for Price call for price call for price
9
20-0312A01 SKID FOOT BY MITM
Call for Price call for price call for price
10
30-0159 LOCKNUT BY MITM
$0.68
11
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
11
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
12
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
12
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
13
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
13
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
14
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
15
23-0074 Elbow 3/8M X 3/8 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230074
$21.00
16
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
18
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
19
19-0012 Filter Oil Fuel for AC1-HE15-05M Air Compressor by Mi-T-M 190012
$69.49
19
19-0010 Filter Fuel Replacement for AC1-HE15-05M Air Compressor by Mi-T-M 190010
Call for Price call for price call for price
20
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
21
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
22
20-0221A01 PANEL ("B" VERSION ONLY) (BMH1) BY MITM
Call for Price call for price call for price
23
20-0259A01 PANEL BRACE ("C" VERSION ONLY) (CMH1/CMV1) BY MITM
Call for Price call for price call for price
24
62-0034 Panel-Instr Small "C" Version for AC1-HE15-05M Air Compressor by Mi-T-M 620034
$140.32
25
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
25
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
26
39-0016 Plug 1/2" Zinc for AC1-HE02-05M by Mi-T-M 390016
$5.99
27
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
28
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
29
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
30
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
31
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
32
12-0035 FLOAT TANK AND LID ASSEMBLY BY MITM
Call for Price call for price call for price
33
31-3318 STUD BY MITM
Call for Price call for price call for price
34
22-0059 Float 1/4-20 Polyethyne for AC1-HE15-05M Air Compressor by Mi-T-M 220059
$7.70
35
22-0058 FLOAT VALVE BY MITM
Call for Price call for price call for price
36
30-9506 NUT BY MITM
$5.40
37
30-2104 U-CLIP NUT BY MITM
Call for Price call for price call for price
38
56-0020 LID BRACKET BY MITM
$0.68
39
27-2953 SCREW BY MITM
$1.35
40
39-0052 PLUG BY MITM
Call for Price call for price call for price
41
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
42
20-0188A01 FLOAT SUPPORT BRACKET BY MITM
$10.80
43
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
44
42-0003 HOSE CLAMP BY MITM
$2.16
45
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
46
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
47
30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
48
32-0004 Terminal 10Ga 1/4 Ring Yellow for AC1-HE15-05M Air Compressor by Mi-T-M 320004
Call for Price call for price call for price
49
32-0091 Wire 12Ga Black Strd for AC1-HE15-05M Air Compressor by Mi-T-M 320091
$2.85
50
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
51
4-0009 Burner Oil Sm 120V for AC1-HE15-05M Air Compressor by Mi-T-M 40009
$661.40
52
28-0022 Washer for MiTM Pressure Washers by MiTM 280022
$4.49
53
850-0066 Weldment Spun Pan 15-1/2 Lg for AC1-HE15-05M Air Compressor by Mi-T-M 8500066
$102.09
54
27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
55
18-0177 FUEL NOZZLE HS-2204-BMH1/CMH1 BY MITM
$13.85
55
18-0178 Nozzle Oil 2.75X80Deg A Hollow for AC1-HE15-05M Air Compressor by Mi-T-M 180178
$20.32
56
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
57
32-0098 TERMINAL ("C" VERSION ONLY) (CMH1/CMV1) BY MITM
$4.05
58
5-0071A01 ISOLATION PLATE BY MITM
Call for Price call for price call for price
59
28-0057 WASHER BY MITM
$0.68
60
33-0028 Vib/Iso 1-3/8"Dia X 1"Height for AC1-HE15-05M Air Compressor by Mi-T-M 330028
$10.84
61
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
62
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
63
20-0306A01 LIFT HOOK ASSEMBLY BY MITM
Call for Price call for price call for price
64
20-0305A01 SIDE RAIL ASSEMBLY BY MITM
Call for Price call for price call for price
65
5-0091A01 SKID FRAME BY MITM
$475.88
66
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
67
12-0036 FUEL TANK BY MITM
$168.75
68
12-0037 FUEL CAP BY MITM
$66.15
69
33-0017 BLANK COVER BY MITM
$5.21
17
Call for Price call for price call for price
