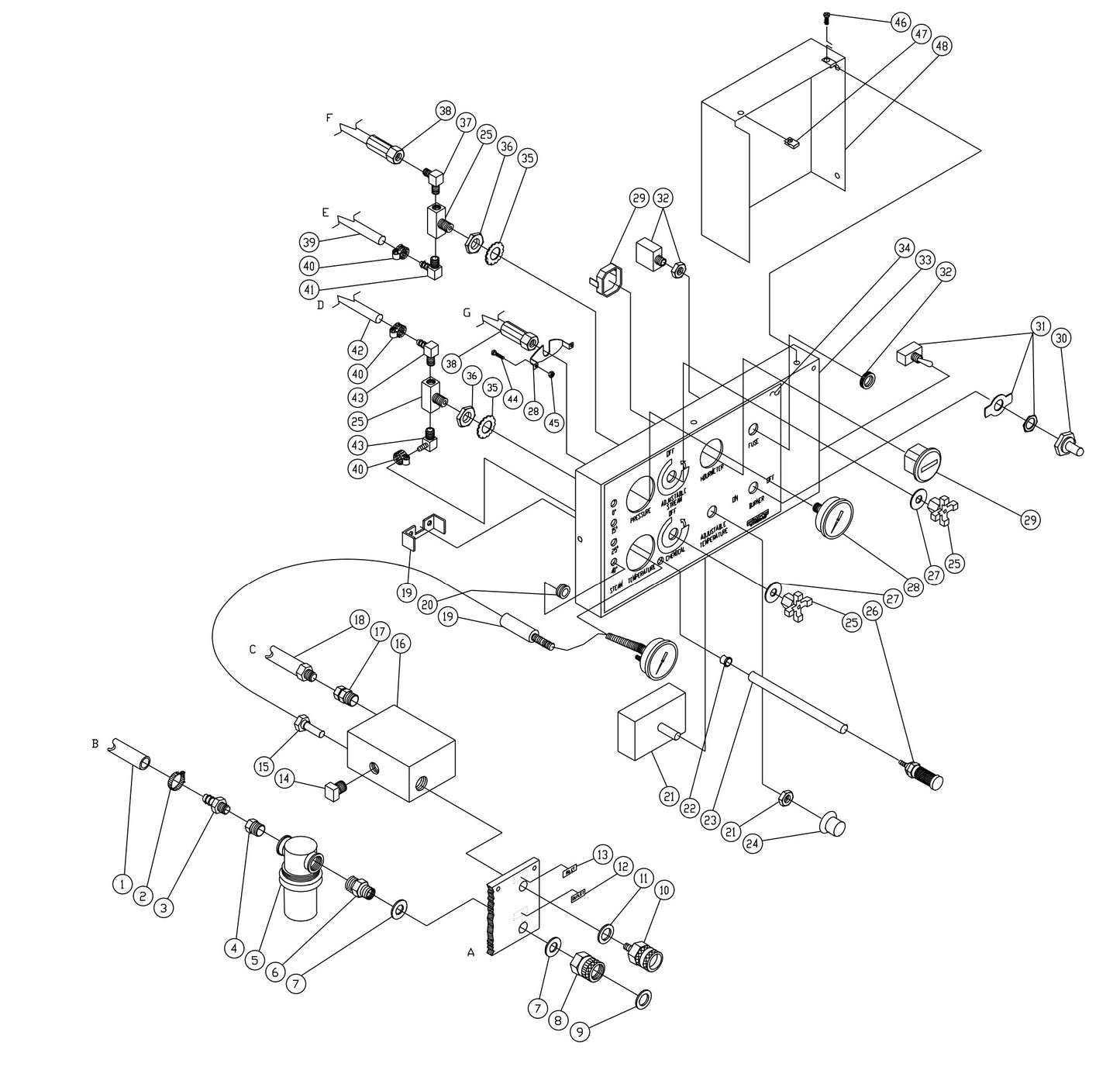

HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Control Panel Assembly Parts by Mi-T-M

HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Control Panel Assembly Parts by Mi-T-M

  • HS-2204-CMH1, HS-2505-CMV1, HS-3005-CMV1 Control Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
2
42-0003 HOSE CLAMP BY MITM
$2.16
3
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
4
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230023
$12.75
5
19-0004 Filter Water 3/4F 19 Sq In for AC1-HE15-05M Air Compressor by Mi-T-M 190004
$65.27
6
23-0082 Nipple 3/4M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230082
$13.88
7
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
9
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
11
28-0050 WASHER BY MITM
$0.68
12
34-0237 DECAL-INLET BY MITM
Call for Price call for price call for price
13
34-0236 DECAL-OUTLET BY MITM
Call for Price call for price call for price
14
24-0009 Plug 1/4"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240009
$3.99
15
23-0128 Thermowell Socket for AC1-HH04-05M Air Compressor by Mi-T-M 230128
$47.81
16
56-0017 OUTLET MANIFOLD BY MITM
Call for Price call for price call for price
17
24-0049 Connect 3/8M X 3/8F Swiv-Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240049
Call for Price call for price call for price
18
15-0071 Hose 3/8X29" 3000Psi R1 Black for AC1-HE15-05M Air Compressor by Mi-T-M 150071
$27.20
19
22-0098 Thermometer 30-300 Degree for AC1-HH04-05M Air Compressor by Mi-T-M 220098
$120.86
21
22-0117 Pakstat Temp.Control for AC1-HH04-05M Air Compressor by Mi-T-M 220117
$199.49
24
7-0054 KNOB BY MITM
$14.31
25
22-0108 Needle Valve 1/4F Cross Knob for AC1-HH04-05M Air Compressor by Mi-T-M 220108
$225.56
26
19-0050 Strainer Chemical Wo/Ck for AC1-HE15-05M Air Compressor by Mi-T-M 190050
$5.99
27
70-0066 WASHER BY MITM
Call for Price call for price call for price
28
22-0073 GAUGE BY MITM
Call for Price call for price call for price
29
32-0259 Hourmeter 120V Round for AC1-HH04-05M Air Compressor by Mi-T-M 320259
$189.33
30
33-0003 Boot Toggle Switch for AC1-HE15-05M Air Compressor by Mi-T-M 330003
$6.48
31
22-0053 Switch Toggle Spst 20A 125V for AC1-HE15-05M Air Compressor by Mi-T-M 220053
$25.43
32
32-0240 Fuse 10Amp 250Vac Sp for AC1-HH04-05M Air Compressor by Mi-T-M 320240
$38.10
33
62-0034 Panel-Instr Small "C" Version for AC1-HE15-05M Air Compressor by Mi-T-M 620034
$140.32
34
34-0221 DECAL BY MITM
Call for Price call for price call for price
35
29-0113 LOCKWASHER BY MITM
$0.68
27
23-0130 Elbow 1/4M X 1/4M 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230130
$18.25
37
15-0078 HOSE ASSEMBLY BY MITM
Call for Price call for price call for price
38
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
40
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
42
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
43
30-0202 HEX NUT BY MITM
$0.68
45
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
46
30-2104 U-CLIP NUT BY MITM
Call for Price call for price call for price
47
62-0035 Cover Electrical Skid 10X10X4 for AC1-HH04-05M Air Compressor by Mi-T-M 620035
$87.77
