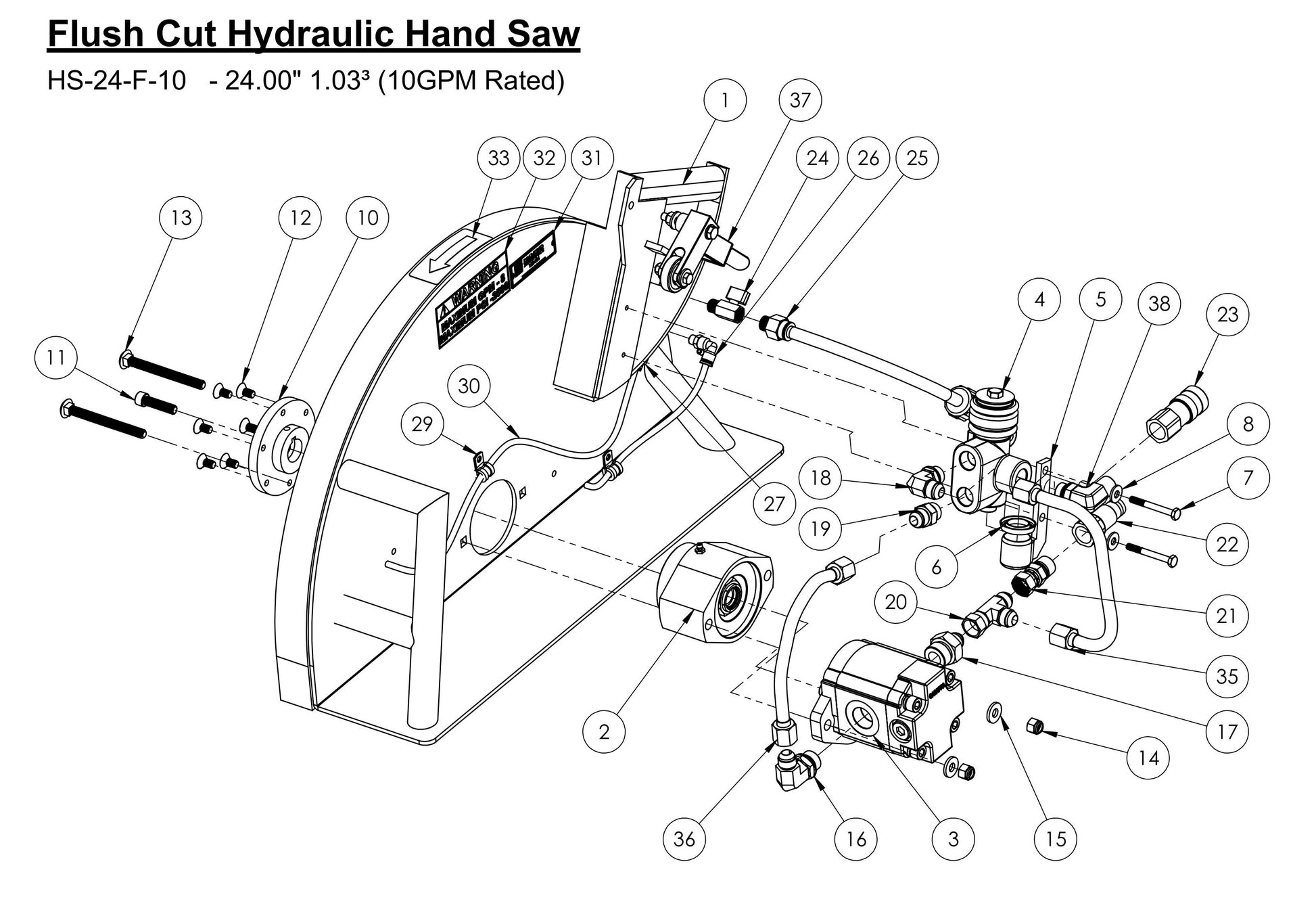

HS-24-F-10 Flush Cut Hydraulic Hand Saw Assembly Parts

HS-24-F-10 Flush Cut Hydraulic Hand Saw Assembly Parts

  • HS-24-F-10 Flush Cut Hydraulic Hand Saw Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 24" FLUSHCUT FRAME ONLY 2503511
$1,798.75
2
6040437 Bearing Block, Flush Cut for HS-20-F-12 20.00���- 1.29iN�� (12GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$922.68
3
2600460 Cassappa Hyd. Motor, 1.03ci W/Anti-Cav Plate for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$1,066.23
4
6070252 HS Metro Valve Assembly for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$437.58
5
2502911 Valve Cap, Hand Saw 20" & 24" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$91.19
6
2505906 U-Cup Seal, 1.00 ID x 1.50 OD for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$7.98
7
2901000 1/4-20 x 2.25" HHCS for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
2900126 1/4" Flat Washers for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
9
2900010 1/4-20 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
10
2502545 Flush Cut Hub for HS-20-F-12 20.00���- 1.29iN�� (12GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$596.97
11
2900357 3/8-16 x 1.50" SHCS for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
12
2903013 5/16-18 Flat Socket Head Cap Screw for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
13
2903040 3/8-16 x 4.00 Carriage Bolt for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.99
14
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900567 5/16" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
16
3200803 Elbow Fitting, 1/2" MJIC x 5/8" MORB for CS-2000-100 CURB SAW Core Cut by Diamond Products
$15.07
17
2502920 Adaptor, #12 O-Ring x 1/2 MJIC for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$10.76
18
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for CS-2000-100 CURB SAW Core Cut by Diamond Products
$14.93
19
2702689 Fitting, 1/2"MORB x 1/2" MJIC for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.91
20
3200332 Swivel Run Tee, 08-MJIC x 08-MJIC x 08-FJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
21
3201274 Adaptor Fitting, 1/2" MPT x 1/2" FJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$20.45
22
3200105 Nipple, 1/2" Q.D. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
23
3200104 Coupler, 1/2" Q.D. for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
24
3201271 Water Valve, 1/4"NPT for HS-20-8 Hydraulic Hand Saw Core Cut by Diamond Products
$32.28
25
3201875 Hose Assy, 3/8" x 12, 3/4" F.Garden x 1/4"MPT for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$43.04
26
2506348 Push Quick Fitting, Male Elbow 1/8NPT x .250 OD for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$13.99
27
2506350 Push-Connect Fitting, 1/4" Tube x 1/8"MPT for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$14.95
28
2502914 1/4" Cable/Hose Loop Clamp for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.48
29
1104098 1/4 O.D. Flexible Tubing (Sold Per Inch) for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
Call for Price call for price call for price
30
1800169 DP S/N Nameplate for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$21.24
31
1800863 Label, 10GPM 2500 PSI for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
32
1800865 Rotation Label for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.31
33
3201094 1/8" Solid Hex-Socket Plug for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$3.99
34
6070416 Hydrualic Hand Saw Single Trigger Assembly for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$285.12
37
3205555 Elbow, 1/2" MORB x 1/2" MPT 90 Deg. for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$37.66
35
Call for Price call for price call for price
36
Call for Price call for price call for price
View full details
