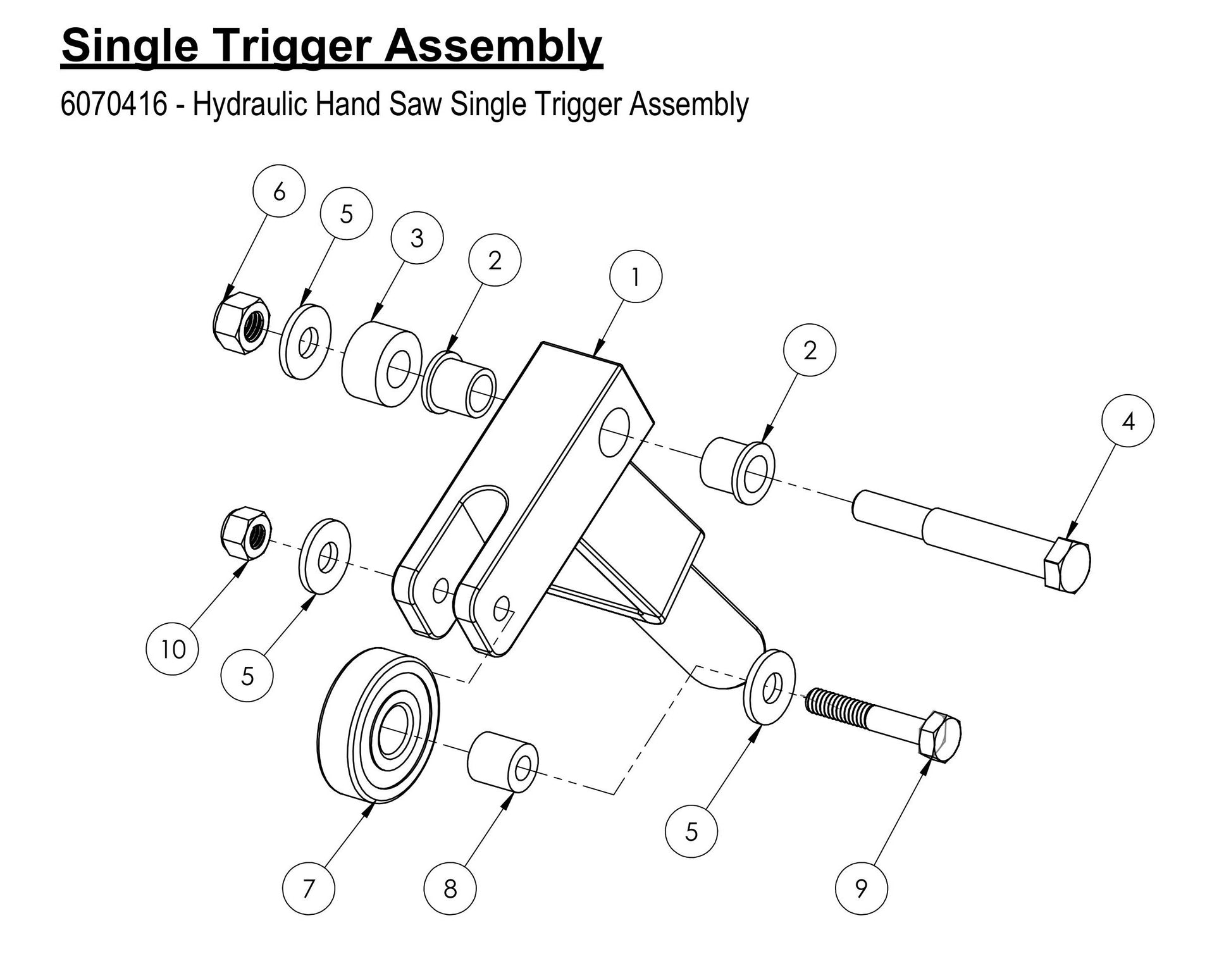

HS-24-F-10 Single Trigger Assembly Parts

HS-24-F-10 Single Trigger Assembly Parts

  • HS-24-F-10 Single Trigger Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040498 Single Trigger for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$138.60
2
2501583 Bearing, 3/8" ID Flanged Bronze for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.99
3
2501515 Bushing UHMW for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$12.91
4
2502120 Pivot Bolt, HSFC for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$62.41
5
2900126 1/4" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
6
2900039 5/16-18 x .625" Nylon-Insert Hex Locknut for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
7
2502897 Bearing for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$116.08
8
2502576 1/4" x 1/2" Sleeve Bushing for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$12.80
9
2900048 1/4-20 x 1.50" HHCS (Grade 5) for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$2.99
10
2900010 1/4-20 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
