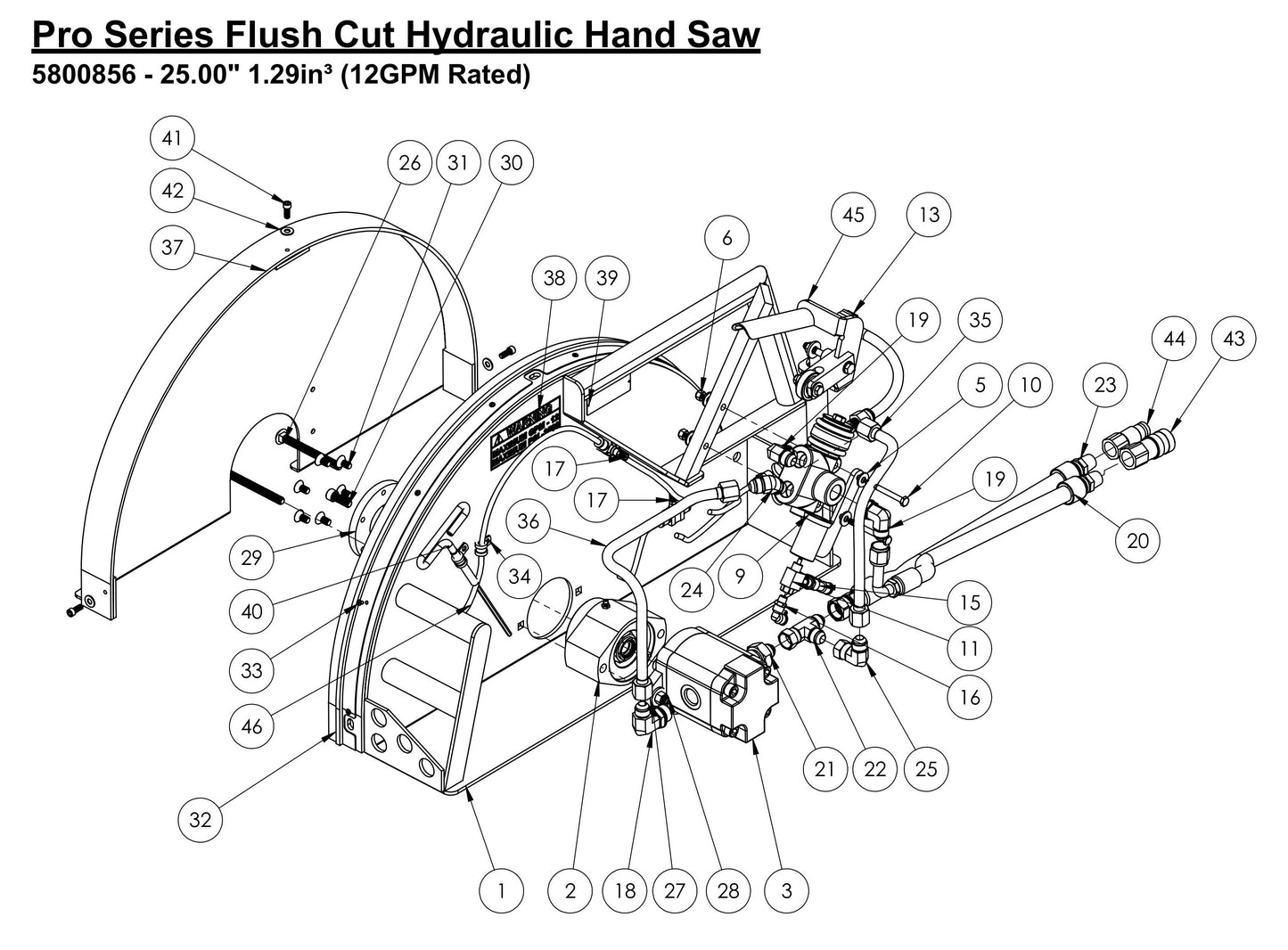

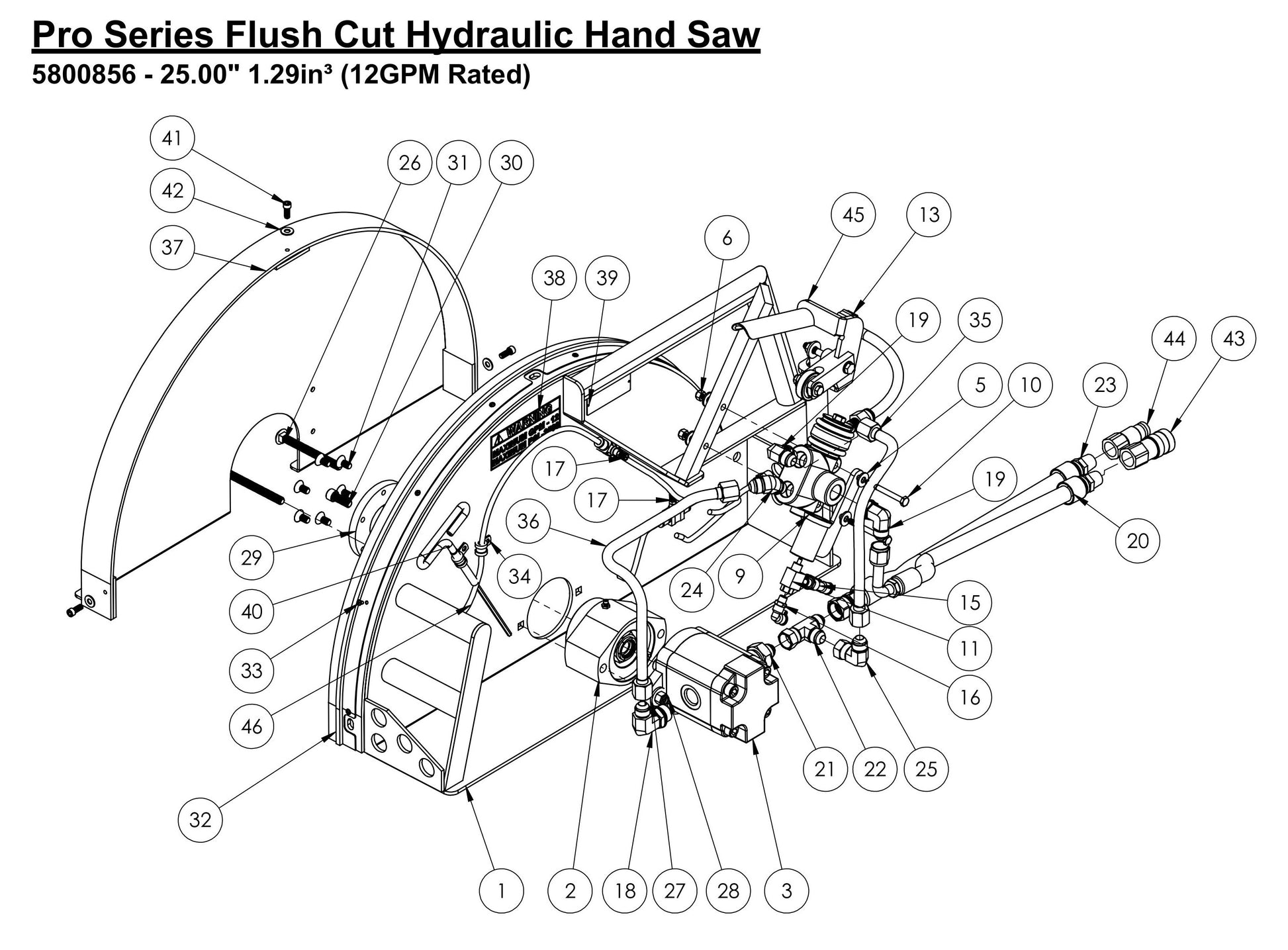

HS-24-F-15 Pro Series Flush Cut Hydraulic Hand Saw Assembly Parts

HS-24-F-15 Pro Series Flush Cut Hydraulic Hand Saw Assembly Parts

  • HS-24-F-15 Pro Series Flush Cut Hydraulic Hand Saw Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 25" HSFC FRAME 6075087
$1,806.25
2
6040437 Bearing Block, Flush Cut for HS-20-F-15 20.00"- 1.61iN�� (15GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$922.68
3
2600458 Cassappa Hyd. Motor, 1.29ci W/Anti-Cav Plate for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$1,006.80
5
2900126 1/4" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
6
2900010 1/4-20 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
7
6070252 HS Metro Valve Assembly for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$437.58
8
Diamond Products VALVE CAP, W/ TRIGGER ACTIVATED WATER 6075084
$91.30
9
2505906 U-Cup Seal, 1.00 ID x 1.50 OD for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$7.98
10
2901001 1/4-20 x 2.50" Hex Head Cap Screw for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2.99
11
Diamond Products HS 3 WAY VALVE 2506345
$135.63
12
Diamond Products 1/4"NPT BULK HD COUPLER 3205539
$36.80
13
3201875 Hose Assy, 3/8" x 12, 3/4" F.Garden x 1/4"MPT for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$43.04
16
2506348 Push Quick Fitting, Male Elbow 1/8NPT x .250 OD for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$13.99
18
3200803 Elbow Fitting, 1/2" MJIC x 5/8" MORB for CS-2000-100 CURB SAW Core Cut by Diamond Products
$15.07
19
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for CS-2000-100 CURB SAW Core Cut by Diamond Products
$14.93
20
Diamond Products 24.00" WHIP HOSE,PRESSURE 6075097
$212.85
21
2502920 Adaptor, #12 O-Ring x 1/2 MJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$10.76
22
3200332 Swivel Run Tee, 08-MJIC x 08-MJIC x 08-FJIC for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
23
Diamond Products 24.00" WHIP HOSE, RETURN 6075098
$167.31
24
3200367 08-ORING x 08-MJIC 45�� for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
25
3200802 Elbow Fitting, 1/2"MJIC x 1/2" FJIC 90 Deg. for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$15.07
26
2903040 3/8-16 x 4.00 Carriage Bolt for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.99
27
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
28
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
29
2502545 Flush Cut Hub for HS-20-F-12 20.00���- 1.29iN�� (12GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$596.97
30
2900175 Cap Screw, Soc. Hd., 3/8-16 x 1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
31
2903013 5/16-18 Flat Socket Head Cap Screw for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
32
Diamond Products HS 25" SWEEP 6075094
$162.36
33
Diamond Products 6-32-1/4 MS 2907006
$2.99
34
2502914 1/4" Cable/Hose Loop Clamp for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.48
37
Diamond Products 25.00 HYD. HANDSAW COVER 6075090
$496.25
38
1800864 Label, 12GPM 2500 PSI for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
Call for Price call for price call for price
39
1800169 Serial Number Plate US US for CC5555-3 Concrete Saw Core Cut by Diamond Products
$21.24
40
Diamond Products T-HANDLE HEX KEY 3/16" F/C HAND SAW 2900750
$21.38
41
2907005 1/4-20 x 5/8 SHCS for HS-20-F-10 Hydraulic Hand Saw Core Cut by Diamond Products
$3.99
42
2900009 1/4 SAE Flat Washer for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2.99
43
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
44
3200105 Nipple, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
45
Diamond Products DUAL TRIGGER ASSEMBLY FOR HYDRAULIC HAND SAWS 2505905
$375.00
46
1104098 1/4 O.D. Flexible Tubing (Sold Per Inch) for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
Call for Price call for price call for price
4
Call for Price call for price call for price
14
Call for Price call for price call for price
15
Call for Price call for price call for price
17
Call for Price call for price call for price
35
Call for Price call for price call for price
36
Call for Price call for price call for price
