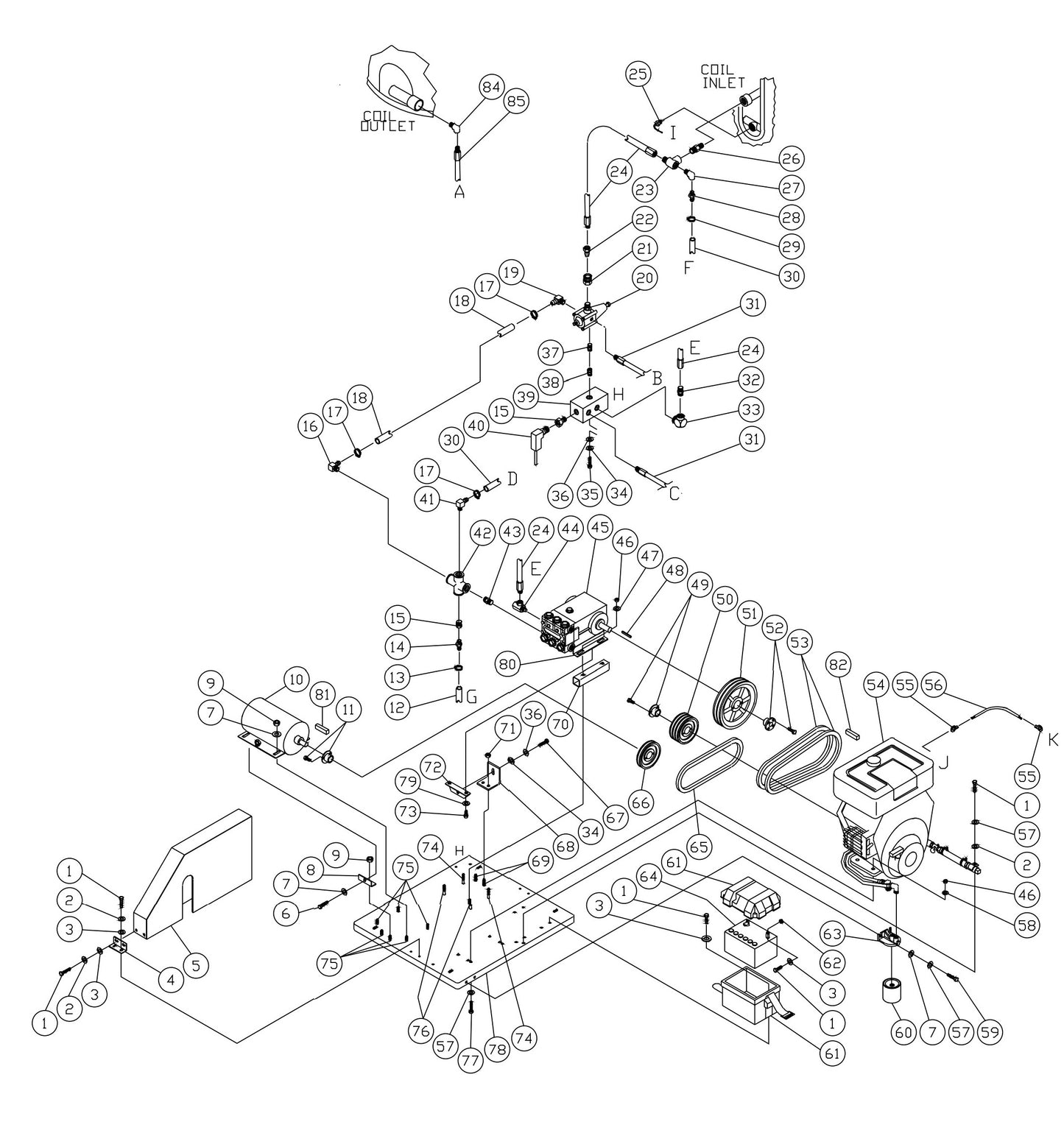

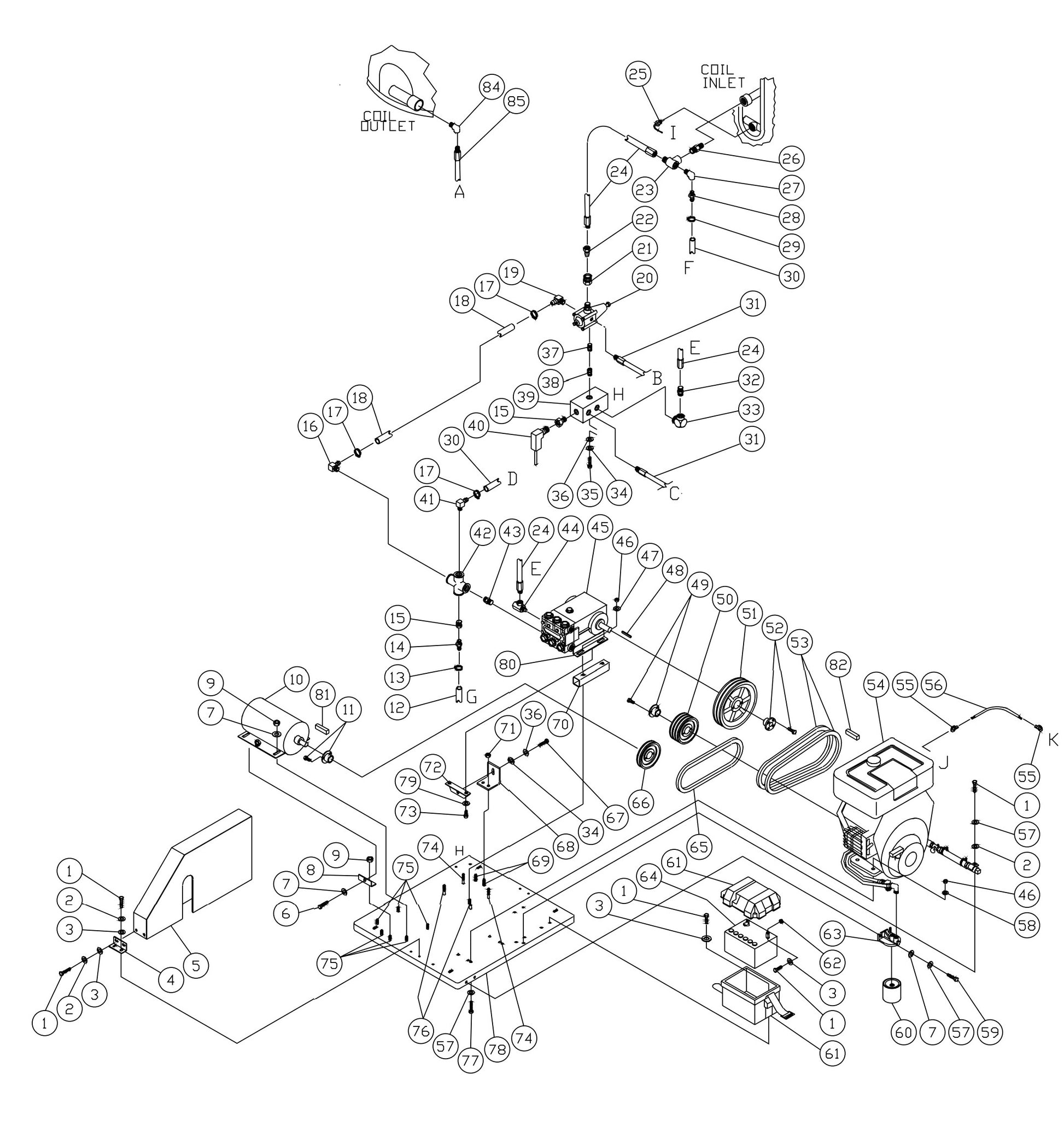

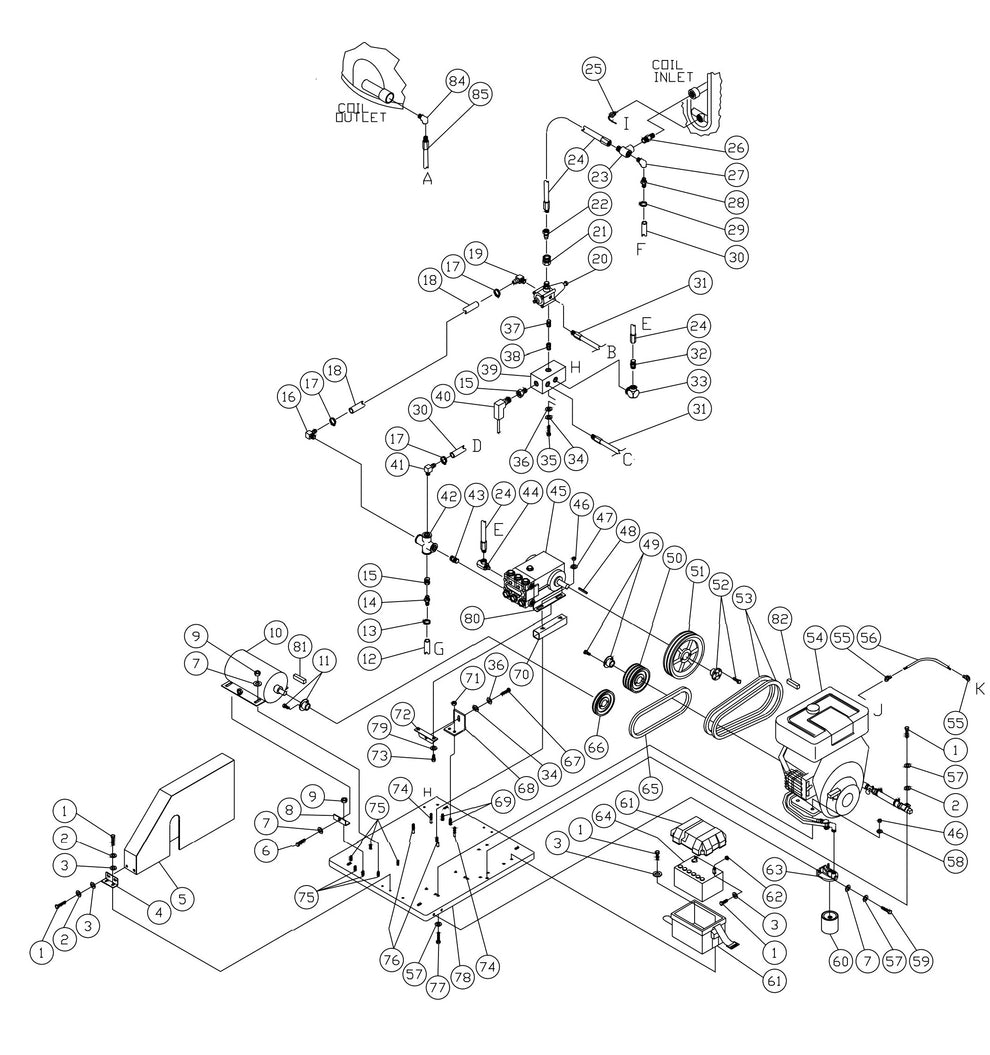

HS-2505-CMV1, HS-3005-CMV1 Motor//Pump Assembly Parts by Mi-T-M

HS-2505-CMV1, HS-3005-CMV1 Motor//Pump Assembly Parts by Mi-T-M

  • HS-2505-CMV1, HS-3005-CMV1 Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
3
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
4
13-0084A01 BRACKET TIGHTENER BY MITM
Call for Price call for price call for price
5
6-0040A01 BELT GUARD BY MITM
Call for Price call for price call for price
6
27-0526 BOLT BY MITM
$0.68
7
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
8
20-0220A01 ANGLE TIGHTENER BY MITM
Call for Price call for price call for price
9
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
10
850-0096 32-0103 Generator W/Nut Welded for AC1-HE15-05M Air Compressor by Mi-T-M 8500096
$1,433.69
12
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
13
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
15
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
16
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
19
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
20
8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013
$238.05
21
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
23
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
24
15-0015 Obsolete for AC1-HE15-05M Air Compressor by Mi-T-M 150015
Call for Price call for price call for price
25
22-0118 Thermo Control Rtd (Pakstat) for AC1-HH04-05M Air Compressor by Mi-T-M 220118
$164.47
26
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
27
24-0004 Elbow 3/8Mpx1/4Fp 90Steelforge for AC1-HE15-05M Air Compressor by Mi-T-M 240004
$24.89
28
22-0046 Safety Valve 1/4M 3Kpsi 6Gpm for AC1-HE15-05M Air Compressor by Mi-T-M 220046
$45.99
29
42-0003 HOSE CLAMP BY MITM
$2.16
30
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
31
15-0078 HOSE ASSEMBLY BY MITM
Call for Price call for price call for price
32
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
33
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
35
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
36
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
39
51-0010 Manifold Unloader for AC1-HE15-05M Air Compressor by Mi-T-M 510010
$75.16
40
850-0173 NIPPLE BY MITM
$46.71
41
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
42
23-0071 Cross 1/2" All F Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230071
$43.47
43
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
44
24-0057 Elbow 3/8Mx3/8Fswiv 90 Deg-Stl for AC1-HE15-05M Air Compressor by Mi-T-M 240057
$20.90
45
3-0079 Pump for MiTM Pressure Washers 30079
$2,081.96
45
3-0011 Pump for MiTM Pressure Washers 30011
$2,081.96
46
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
47
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
48
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
50
10-0011 Sheave 3Bk50H Cast Iron for AC1-HR45-05M Air Compressor by Mi-T-M 100011
$58.89
51
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
53
11-0008 Cog Belt Ax40 for AC1-HR45-05M Air Compressor by Mi-T-M 110008
$27.27
54
850-0152 ENGINE - VANGUARD (2505) BY MITM
Call for Price call for price call for price
54
850-0151 ENGINE - VANGUARD (3005) BY MITM
Call for Price call for price call for price
55
32-0098 Terminal 4Ga 1/4 Ring for AC1-HE15-05M Air Compressor by Mi-T-M 320098
$5.99
56
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
58
28-0005 Washer for MiTM Pressure Washers by MiTM 280005
$4.49
60
19-0072 OIL FILTER (REPLACEMENT) BY MITM
$29.70
61
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
63
45-0022 OIL FILTER ADAPTOR BY MITM
Call for Price call for price call for price
64
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
65
11-0033 Belt 4L260 for AC1-HR45-05M Air Compressor by Mi-T-M 110033
$21.56
66
10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049
$28.90
68
20-0241A01 BRACE TIGHTENER BY MITM
Call for Price call for price call for price
70
20-0219A01 PUMP MOUNT BY MITM
Call for Price call for price call for price
72
13-0050A01 PUMP TIGHTENER BY MITM
$9.45
73
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
74
27-0176 BOLE BY MITM
$0.68
76
27-0178 BOLT BY MITM
$0.81
77
27-0170 Bolt for MiTM Pressure Washers 270170
$7.65
78
15-0071A01 BASE PLATE BY MITM
Call for Price call for price call for price
80
46-0066 PUMP FOOT BY MITM
Call for Price call for price call for price
81
43-0073 Key 3/16" X 1-7/8" for AC1-HE15-05M Air Compressor by Mi-T-M 430073
$8.06
82
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
85
15-0071 Hose 3/8X29" 3000Psi R1 Black for AC1-HE15-05M Air Compressor by Mi-T-M 150071
$27.20
