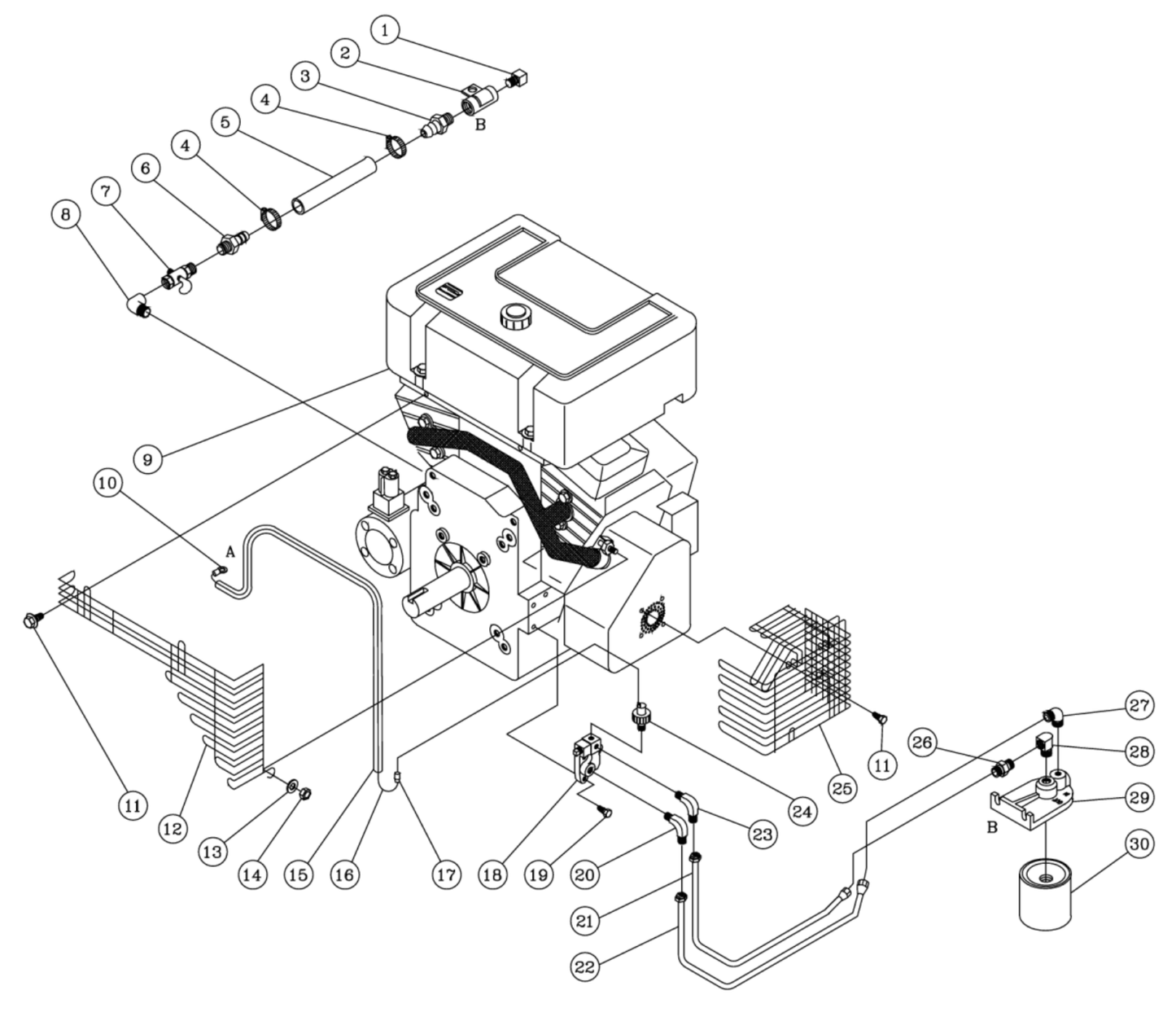

HS-2505-CMV1, HS-3005-CMV1 Engine Assembly Parts by Mi-T-M

HS-2505-CMV1, HS-3005-CMV1 Engine Assembly Parts by Mi-T-M

  • HS-2505-CMV1, HS-3005-CMV1 Engine Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HH04-05M Air Compressor by Mi-T-M 240034
$4.85
2
850-0100 COUPLER ASSEMBLY FOR 3005 ONLY BY MITM
$36.45
3
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
4
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
5
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
6
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
7
22-0080 VALVE BY MITM
$31.05
8
24-0004 Elbow 3/8Mpx1/4Fp 90Steelforge for AC1-HE15-05M Air Compressor by Mi-T-M 240004
$24.89
9
1-0056 Engine B&S 16Hpvanguard W/Tank for AC1-HR45-05M Air Compressor by Mi-T-M 10056
$2,900.52
10
32-0099 Terminal 14 Ga #10 Ring Blue for AC1-HR45-05M Air Compressor by Mi-T-M 320099
$1.99
13
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
14
30-0004 Nut BY MITM
$0.68
15
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
16
32-0092 Wire 16 Gauge Red Strd for AC1-HR45-05M Air Compressor by Mi-T-M 320092
$2.85
17
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-PE02-20M Air Compressor by Mi-T-M 320221
$2.85
18
45-0021 Adaptor-Remote Oil Filter(Eng) for AC1-PE02-20M Air Compressor by Mi-T-M 450021
$162.31
20
23-0145 ELBOW BY MITM
$4.73
21
33-0141 REMOTE OIL LINE BY MITM
Call for Price call for price call for price
22
33-0140 REMOTE OIL LINE BY MITM
Call for Price call for price call for price
23
23-0144 ELBOW BY MITM
$4.73
25
6-0065 MUFFLER GUARD BY MITM
$127.13
26
23-0146 CONNECTOR BY MITM
$2.97
27
23-0143 ELBOW BY MITM
$2.03
28
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
29
45-0022 OIL FILTER ADAPTOR BY MITM
Call for Price call for price call for price
30
19-0072 OIL FILTER (REPLACEMENT) BY MITM
$29.70
9
Call for Price call for price call for price
11
Call for Price call for price call for price
12
Call for Price call for price call for price
