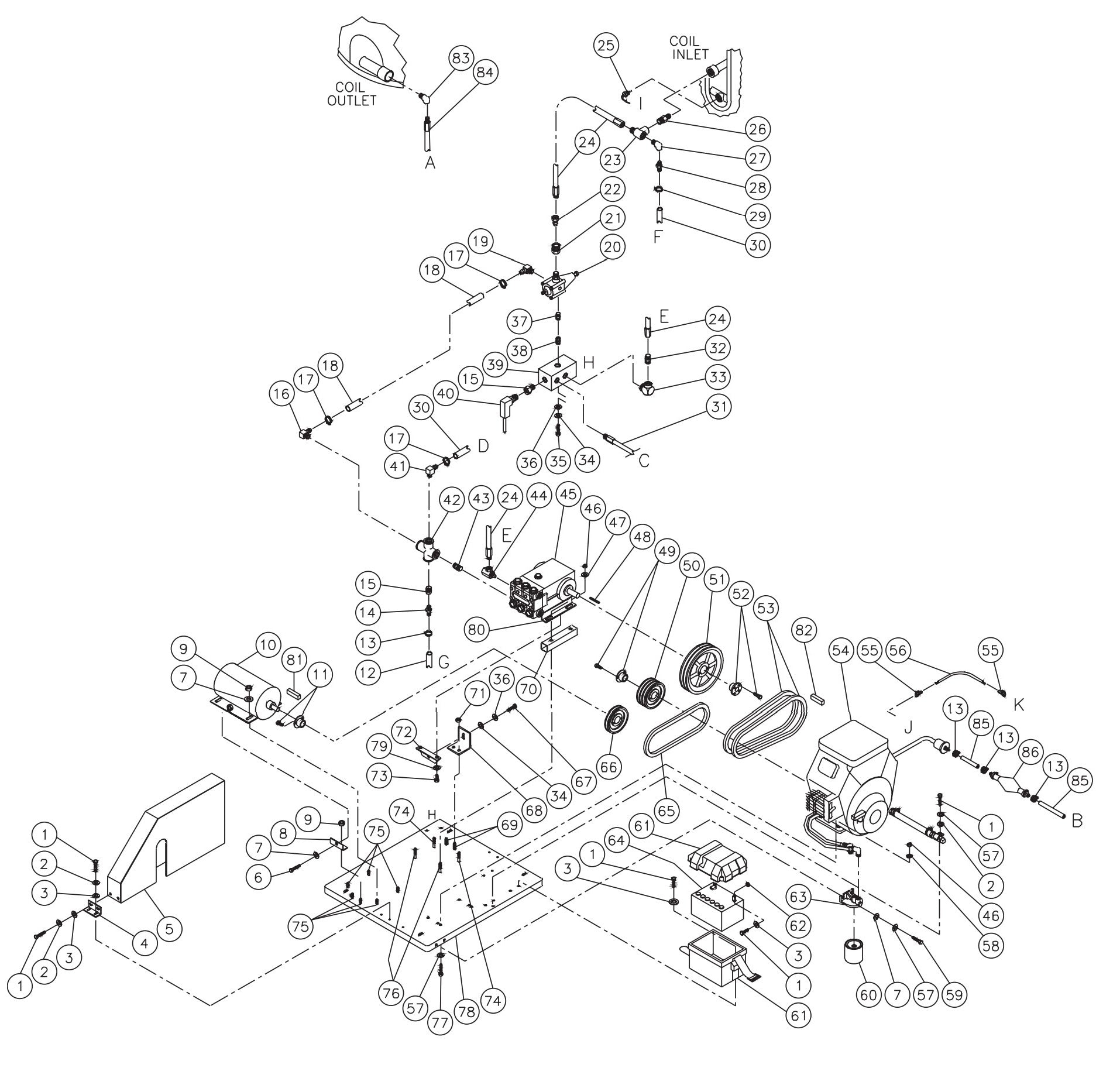

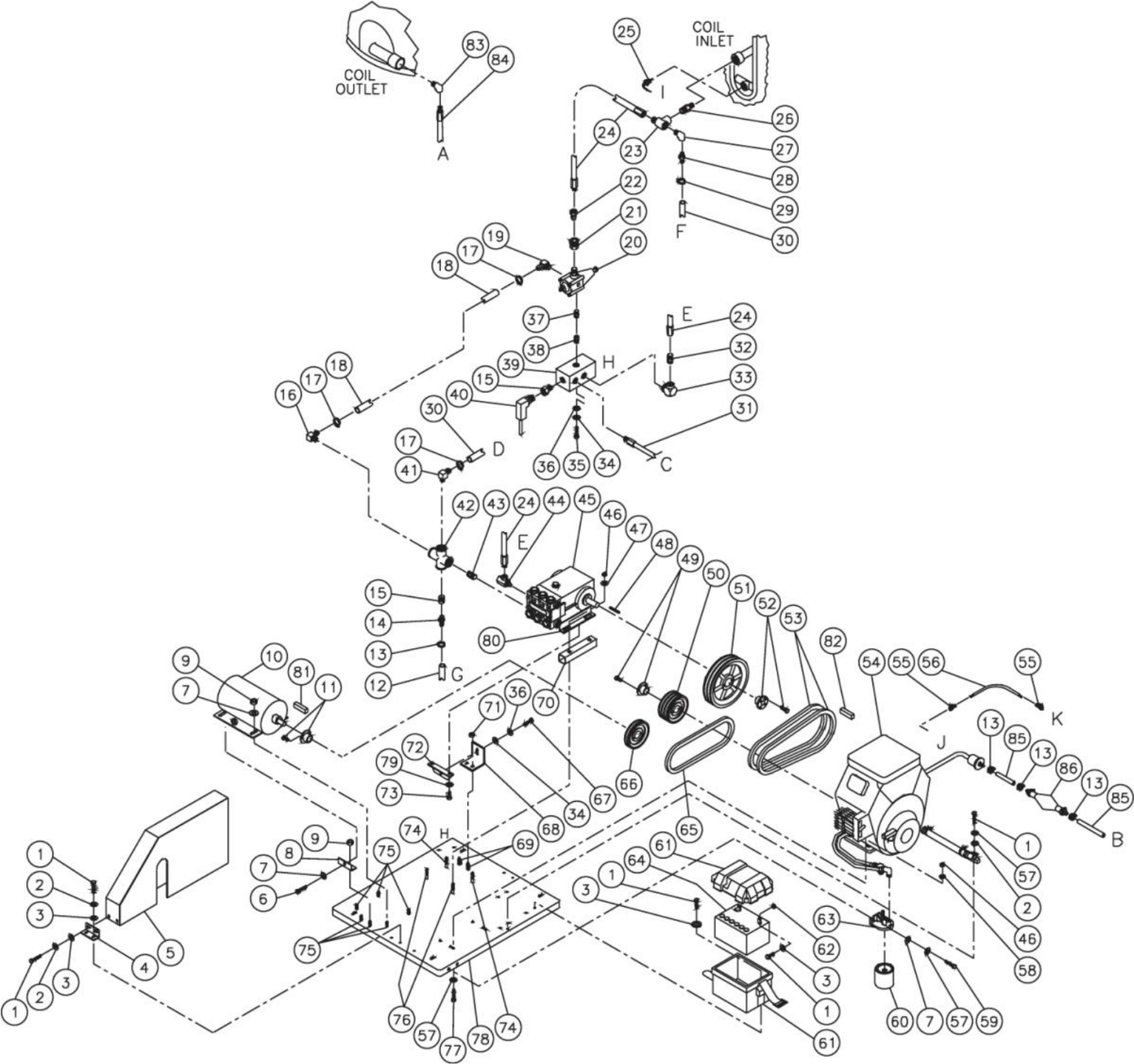

HS-3005-CMV2 Motor/Pump Assembly Parts by Mi-T-M

HS-3005-CMV2 Motor/Pump Assembly Parts by Mi-T-M

  • HS-3005-CMV2 Motor/Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
2
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
3
28-0002 Washer for MiTM Pressure Washers by MiTM 280002
$5.93
4
13-0084A01 BRACKET TIGHTENER BY MITM
Call for Price call for price call for price
5
6-0040A01 BELT GUARD BY MITM
Call for Price call for price call for price
6
27-0526 BOLT BY MITM
$0.68
7
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
54
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
8
20-0220A01 ANGLE TIGHTENER BY MITM
Call for Price call for price call for price
9
30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
10
850-0096 32-0103 Generator W/Nut Welded for AC1-HE15-05M Air Compressor by Mi-T-M 8500096
$1,433.69
11
9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037
$19.22
12
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
13
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
54
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
14
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
15
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
16
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
17
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
18
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
19
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
20
8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013
$238.05
21
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
22
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
23
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
24
15-0015 Obsolete for AC1-HE15-05M Air Compressor by Mi-T-M 150015
Call for Price call for price call for price
25
22-0118 Thermo Control Rtd (Pakstat) for AC1-HH04-05M Air Compressor by Mi-T-M 220118
$164.47
26
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
27
24-0004 Elbow 3/8Mpx1/4Fp 90Steelforge for AC1-HE15-05M Air Compressor by Mi-T-M 240004
$24.89
54
24-0004 Elbow 3/8Mpx1/4Fp 90Steelforge for AC1-HE15-05M Air Compressor by Mi-T-M 240004
$24.89
28
22-0046 Safety Valve 1/4M 3Kpsi 6Gpm for AC1-HE15-05M Air Compressor by Mi-T-M 220046
$45.99
29
42-0003 HOSE CLAMP BY MITM
$2.16
30
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
31
15-0078 HOSE ASSEMBLY BY MITM
Call for Price call for price call for price
32
*24-0010 Nipple 3/8" Hex Steel for Mi-T-M CA-2403-0MRB by MiTM 240010
$7.89
33
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
34
29-0008 Lockwasher for ABS Air Compressor by Mi-T-M 290008
$1.99
35
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
36
28-0022 Washer for MiTM Pressure Washers by MiTM 280022
$4.49
37
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
38
24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037
$26.35
39
51-0010 Manifold Unloader for AC1-HE15-05M Air Compressor by Mi-T-M 510010
$75.16
40
22-0243 Pressure Switch 1/4Bsp 25 Bar for AC1-HE02-05M by Mi-T-M 220243
$75.90
41
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
42
23-0071 Cross 1/2" All F Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230071
$43.47
43
*23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012
$11.07
44
24-0057 Elbow 3/8Mx3/8Fswiv 90 Deg-Stl for AC1-HE15-05M Air Compressor by Mi-T-M 240057
$20.90
45
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
46
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
47
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
48
43-0048 KEY BY MITM
$6.35
49
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
50
10-0011 Sheave 3Bk50H Cast Iron for AC1-HR45-05M Air Compressor by Mi-T-M 100011
$58.89
51
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
52
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
53
11-0008 Cog Belt Ax40 for AC1-HR45-05M Air Compressor by Mi-T-M 110008
$27.27
54
850-0280 ENGINE ASSEMBLY BY MITM
Call for Price call for price call for price
54
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
54
850-0100 COUPLER ASSEMBLY FOR 3005 ONLY BY MITM
$36.45
54
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
54
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
54
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
54
1-0105 Engine 16 Hp Vanguard for AC1-PE02-20M Air Compressor by Mi-T-M 10105
$2,423.01
54
32-0099 Terminal 14 Ga #10 Ring Blue for AC1-HR45-05M Air Compressor by Mi-T-M 320099
$1.99
54
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
54
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
54
6-0065 MUFFLER GUARD BY MITM
$127.13
54
30-0004 Nut BY MITM
$0.68
54
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
54
32-0092 Wire 16 Gauge Red Strd for AC1-HR45-05M Air Compressor by Mi-T-M 320092
$2.85
54
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221
$2.85
54
45-0021 Adaptor-Remote Oil Filter(Eng) for AC1-HR45-05M Air Compressor by Mi-T-M 450021
$162.31
54
23-0145 ELBOW BY MITM
$4.73
54
33-0141 REMOTE OIL LINE BY MITM
Call for Price call for price call for price
54
33-0140 REMOTE OIL LINE BY MITM
Call for Price call for price call for price
54
23-0144 ELBOW BY MITM
$4.73
54
23-0146 CONNECTOR BY MITM
$2.97
54
23-0143 ELBOW BY MITM
$2.03
54
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
54
45-0022 OIL FILTER ADAPTOR BY MITM
Call for Price call for price call for price
63
45-0022 OIL FILTER ADAPTOR BY MITM
Call for Price call for price call for price
55
32-0098 Terminal 4Ga 1/4 Ring for AC1-HE15-05M Air Compressor by Mi-T-M 320098
$5.99
56
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
57
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
58
28-0005 Washer for MiTM Pressure Washers by MiTM 280005
$4.49
59
27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
60
19-0072 OIL FILTER (REPLACEMENT) BY MITM
$29.70
61
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
62
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
64
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
65
11-0033 Belt 4L260 for AC1-HR45-05M Air Compressor by Mi-T-M 110033
$21.56
66
10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049
$28.90
67
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
68
20-0241A01 BRACE TIGHTENER BY MITM
Call for Price call for price call for price
69
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
70
20-0219A01 PUMP MOUNT BY MITM
Call for Price call for price call for price
71
30-0159 Locknut for ABS Air Compressor by Mi-T-M 300159
$2.85
72
13-0050A01 PUMP TIGHTENER BY MITM
$9.45
73
27-8471 BOLT BY MITM
$7.65
74
27-0176 BOLE BY MITM
$0.68
75
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
76
27-0178 BOLT BY MITM
$0.81
77
27-0170 Bolt for MiTM Pressure Washers 270170
$7.65
78
15-0071A01 BASE PLATE BY MITM
Call for Price call for price call for price
79
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
80
46-0066 PUMP FOOT BY MITM
Call for Price call for price call for price
81
43-0073 Key 3/16" X 1-7/8" for AC1-HE15-05M Air Compressor by Mi-T-M 430073
$8.06
82
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
83
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
84
15-0071 Hose 3/8X29" 3000Psi R1 Black for AC1-HE15-05M Air Compressor by Mi-T-M 150071
$27.20
85
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
86
33-0040 Primer Bulb for AC1-PE15-20M Air Compressor by Mi-T-M 330040
$19.71
