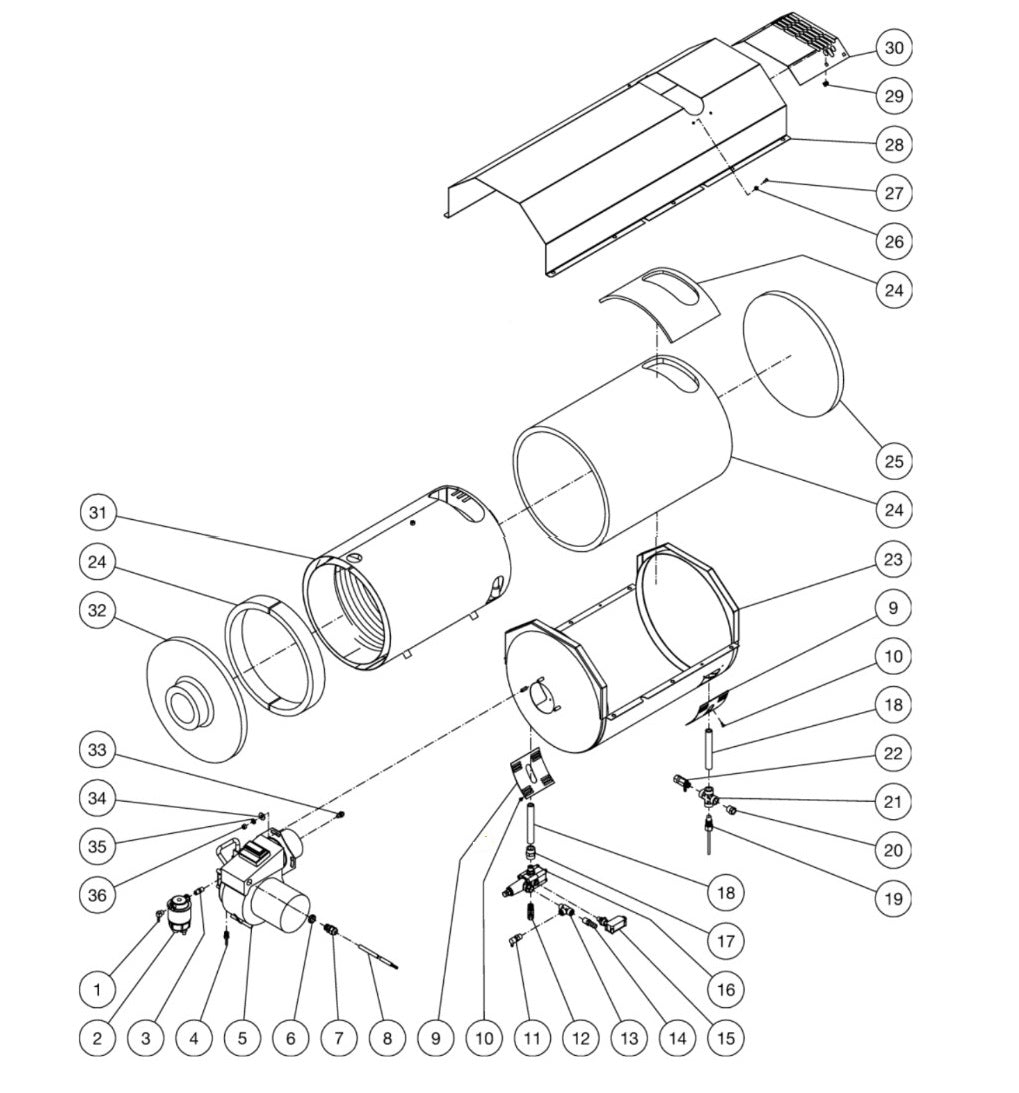

HS-3005, HS-3006, HS-3008, HS-3504, HS-3505 Gasoline-Diesel Models Heat Exchange Assembly Parts by Mi-T-M

HS-3005, HS-3006, HS-3008, HS-3504, HS-3505 Gasoline-Diesel Models Heat Exchange Assembly Parts by Mi-T-M

  • HS-3005, HS-3006, HS-3008, HS-3504, HS-3505 Gasoline-Diesel Models Heat Exchange Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
2
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
3
24-0145 Hex Nipple 1/4 Mnpt X 1/4 Mnpt for AC1-PE03-20M Air Compressor by Mi-T-M 240145
Call for Price call for price call for price
8
32-0247 Cord 16/4 So for AC1-PE03-20M Air Compressor by Mi-T-M 320247
$6.48
9
20-0537A18 PATCH PLATE BY MITM
$7.43
10
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
11
22-0432 HEAT DUMP VALVE BY MITM
$10.80
13
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
14
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
16
850-0304 Unloader Assy-K7.2 W/#1 Bypass for AC1-PE03-20M Air Compressor by Mi-T-M 8500304
$272.33
16
8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013
$238.05
16
850-0345 Unloader Assy-K7.1 W/#0 Bypass for AC1-PE03-20M Air Compressor by Mi-T-M 8500345
$253.15
18
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
19
32-0667 Switch/Hi Limit 1/2Npt for AC1-PE03-20M Air Compressor by Mi-T-M 320667
$53.48
19
32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
22
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
23
20-0666A18 BOTTOM WRAP BY MITM
$429.17
26
28-0001 Washer for MiTM Pressure Washers 280001
$5.93
27
27-8912 SCREW BY MITM
Call for Price call for price call for price
28
20-0664A18 TOP WRAP BY MITM
$221.40
29
30-6028 CLIP NUT BY MITM
$1.35
30
21-0171 EXHAUST GUARD BY MITM
$40.64
33
18-0361 Nozzle Oil 2.75 90 Deg B for AC1-PE03-20M Air Compressor by Mi-T-M 180361
$20.32
37
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
4
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
5
4-0017 Sm-115Volt 3.375Inch Air Tube for AC1-HE02-05M by Mi-T-M 40017
$794.25
6
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
7
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
12
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
15
22-0243 Pressure Switch 1/4Bsp 25 Bar for AC1-HE02-05M by Mi-T-M 220243
$48.10
17
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
20
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
21
24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241
$68.11
25
33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346
$45.32
31
66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014
$1,577.83
32
33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345
$73.72
34
18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090
$20.32
35
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
36
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
14
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
24
850-0314 INSULATION BLANKET BY MITM
$233.97
