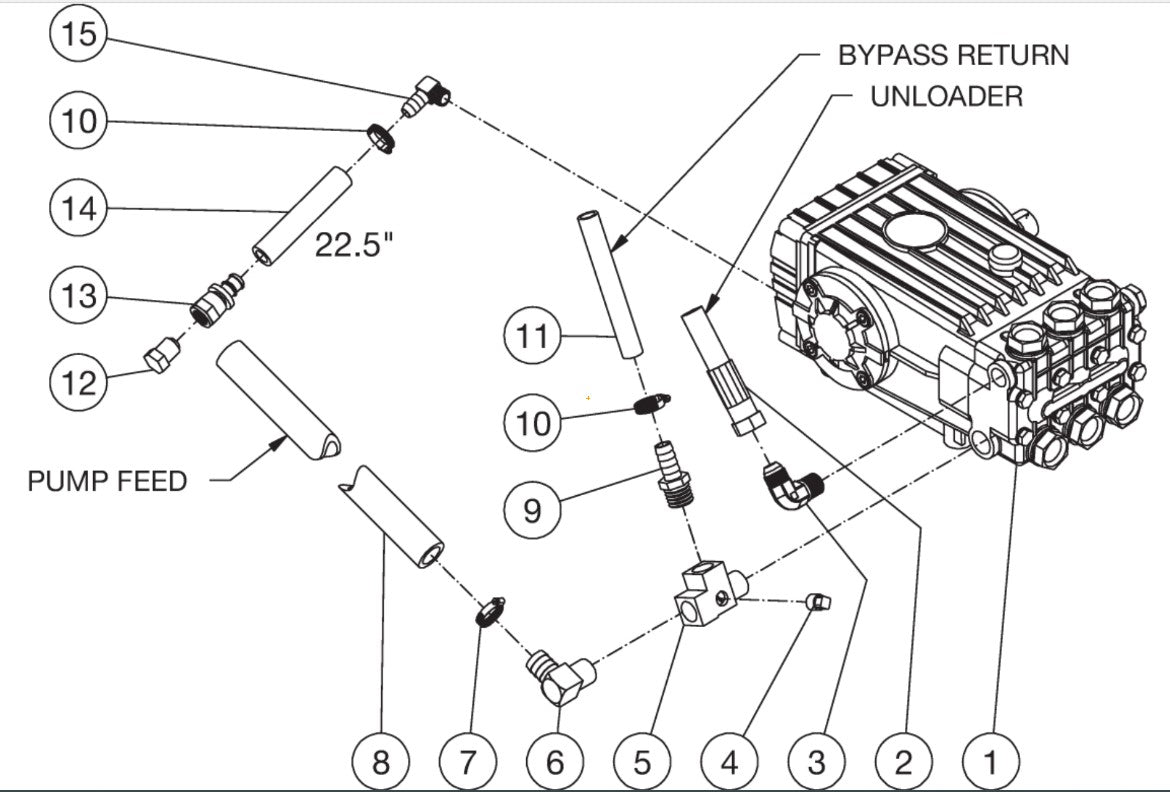

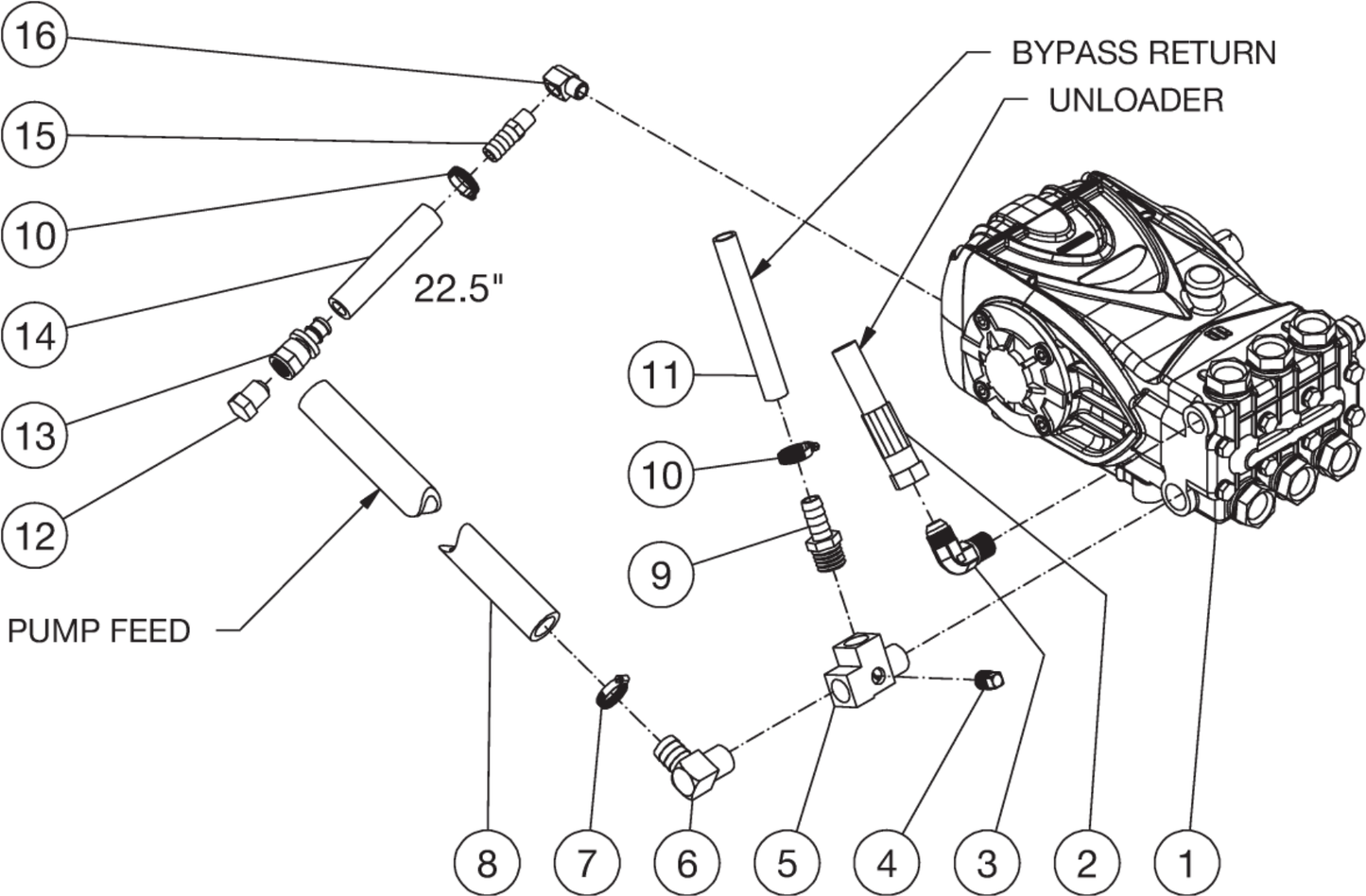

HS-3005/HS-3504/HS-3506/HS-3505-0MGK/0MGV/1MGH/1MGM, HS-4004-0MAH Pump Plumbing Assembly Parts by Mi-T-M

HS-3005/HS-3504/HS-3506/HS-3505-0MGK/0MGV/1MGH/1MGM, HS-4004-0MAH Pump Plumbing Assembly Parts by Mi-T-M

  • HS-3005/HS-3504/HS-3506/HS-3505-0MGK/0MGV/1MGH/1MGM, HS-4004-0MAH Pump Plumbing Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
1
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
4
24-0009 Plug 1/4"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240009
$3.99
6
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
7
42-0003 HOSE CLAMP BY MITM
$2.16
8
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
14
15-0305 HOSE BY MITM
$3.86
15
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
16
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
2
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
3
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
5
23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388
$36.69
9
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
10
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
11
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
12
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
13
23-0360 Hose Barb for AC1-HE02-05M by Mi-T-M 230360
$13.55
