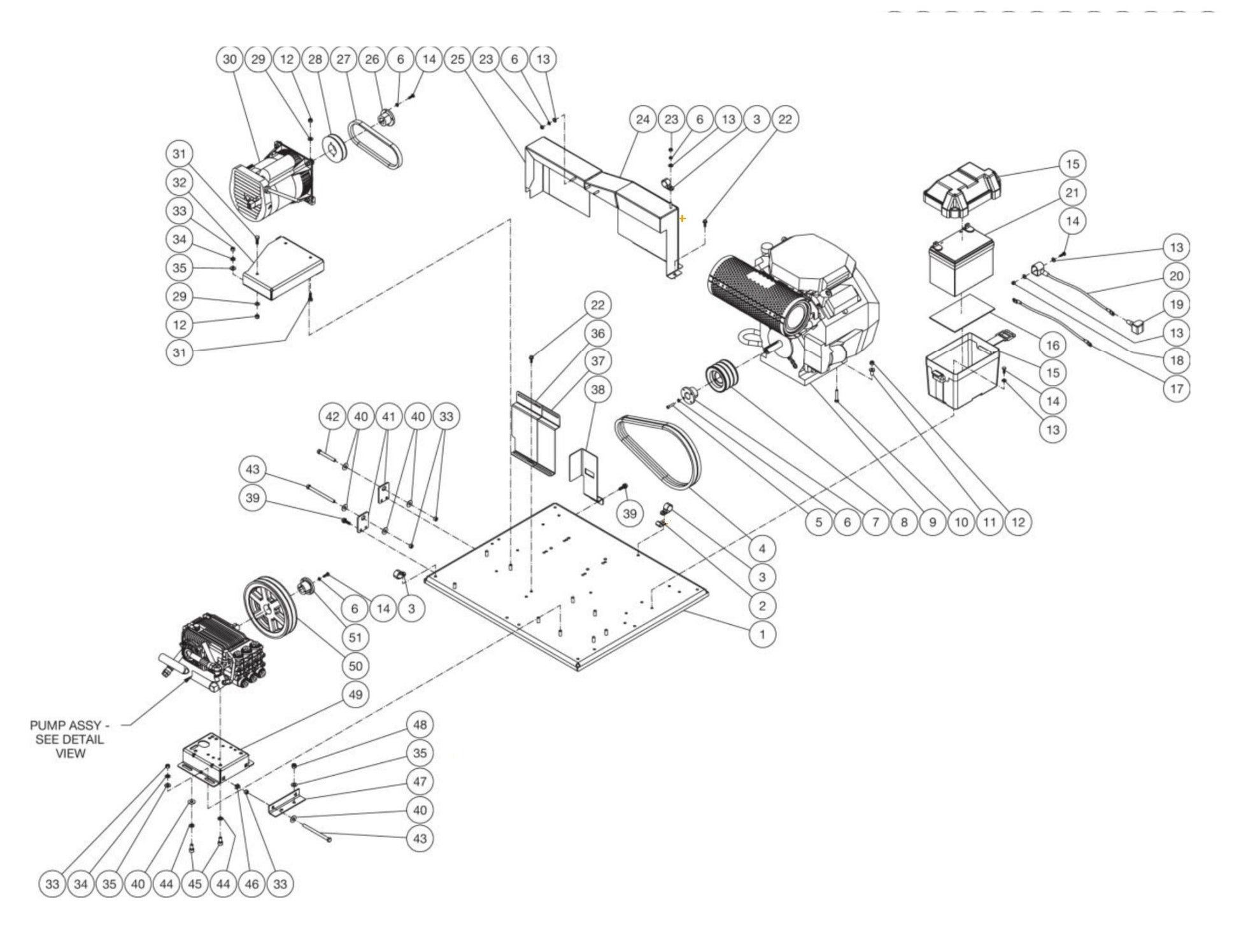

HS-3505-1MGH, HS-3506-1MGH (sn:15167939-99999999) Isolation Plate Assembly Parts by Mi-T-M

HS-3505-1MGH, HS-3506-1MGH (sn:15167939-99999999) Isolation Plate Assembly Parts by Mi-T-M

  • HS-3505-1MGH, HS-3506-1MGH (sn:15167939-99999999) Isolation Plate Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
5-0170A18 ISOLATION PLATE BY MITM
$466.70
2
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
3
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
4
11-0050 BELT (4004) BY MITM
$18.23
5
11-0052 Cog Belt Bx38 for AC1-PE03-08M Air Compressor by Mi-T-M 110052
$31.19
6
11-0101 BELT (3008) BY MITM
$21.20
7
27-0850 BOLT BY MITM
$0.68
8
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
9
9-0007 Bushing H X 1-7/16 Motor for AC1-PE02-08M Air Compressor by Mi-T-M 90007
$18.25
10
10-0011 Sheave 3Bk50H Cast Iron for AC1-HR45-05M Air Compressor by Mi-T-M 100011
$58.89
11
10-0061 Sheave 3Bk45H for AC1-HE15-05M Air Compressor by Mi-T-M 100061
$71.78
12
850-0293 ENGINE- 25 HP KOHLER (3506-0K6G) BY MITM
$4,910.90
13
850-0294 ENGINE (HDC-3005-0V6G) BY MITM
$3,746.19
14
850-0295 ENGINE- 21 HP VANGUARD (3505-0V6G) BY MITM
$4,314.47
15
850-0333 ENGINE (HDC-3505-0K6G/HDC-4004-0K6A) BY MITM
$3,719.19
16
850-0393 ENGINE (HDC-3505-1H6G; HDC-4004-1H6A) BY MITM
$4,342.28
17
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
18
27-0120 Bolt for MiTM Pressure Washers 270120
$10.49
19
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
20
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
21
30-0159 LOCKNUT BY MITM
$0.68
22
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
23
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
24
33-0509 RUBBER PAD BY MITM
$5.67
25
32-9113 CABLE BY MITM
$18.23
26
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
27
32-9114 CABLE BY MITM
$28.43
28
27-1200 BOLT BY MITM
$1.52
29
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
30
6-0205A18 PUMP BELTGUARD (3-0202 PUMP ONLY) BY MITM
$72.84
31
6-0092A18 PUMP BELTGUARD BY MITM
$43.20
32
6-0091A18 BELTGUARD BY MITM
$31.05
33
9-0033 BUSHING BY MITM
$11.69
34
11-0048 Belt -Bx22 for AC1-PE03-08M Air Compressor by Mi-T-M 110048
$27.93
35
10-0028 Sheave Bk40H for AC1-HE15-05M Air Compressor by Mi-T-M 100028
$30.51
36
10-0039 SHEAVE (3008 HONDA/KOHLER) BY MITM
$30.38
37
850-0352 Alternator Assy for AC1-PE03-20M Air Compressor by Mi-T-M 8500352
$725.37
38
20-0583A18 GENERATOR HAT BY MITM
$36.45
39
30-0006 Hex Nut BY MITM
$0.68
40
29-0008 LOCKWASHER BY MITM
$2.55
41
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
42
20-1642A18 BRACKET BY MITM
$12.83
43
20-0589A18 BELTGUARD COVER BY MITM
$12.15
44
20-1684A18 KEY SWITCH BRACKET (HONDA ENGINE) BY MITM
$3.65
45
27-1201 BOLT BY MITM
$0.35
46
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
47
20-0587A18 GENERATOR TENSION BRACKET BY MITM
$5.40
48
27-8471 BOLT BY MITM
$7.65
49
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
50
30-6025 CLIP NUT BY MITM
$7.13
51
20-0584A18 Tension Bracket BY MITM
$10.13
52
5-0153A18 Pump Hat BY MITM
$34.43
53
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
54
10-0012 Sheave 2Bk90H for AC1-PE02-20M1 Air Compressor by Mi-T-M 100012
$85.49
