HS-3505-CMH1 Pump Assembly Parts by Mi-T-M

HS-3505-CMH1 Pump Assembly Parts by Mi-T-M

  • HS-3505-CMH1 Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
3
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
4
28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
7
46-0889 Cap Valve for AC1-PE02-20M Air Compressor by Mi-T-M 460889
$51.14
8
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
9
28-1039 Washer for MiTM Pressure Washers by MiTM 281039
$7.49
10
46-0890 Obsolete See 3-0202/3-0203 for AC1-PE02-20M Air Compressor by Mi-T-M 460890
Call for Price call for price call for price
19
46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659
$21.32
20
46-0886 Low Pressure Seal for AC1-PE02-20M Air Compressor by Mi-T-M 460886
$38.26
21
46-0887 Low Pressure Seal Retainer for AC1-PE02-20M Air Compressor by Mi-T-M 460887
$25.67
22
25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015
$4.55
23
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
24
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
25
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
26
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
27
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
28
48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012
$74.16
29
46-0292 Crankcase for MiTM Pressure Washers 460292
$1,293.09
30
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
31
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
32
28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
33
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
34
46-0109 Teflon Back-Up Ring for MiTM Pressure Washers 460109
$8.93
35
46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052
$75.11
36
46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146
$5.99
37
46-0056 Piston Guide for AC1-HE15-05M Air Compressor by Mi-T-M 460056
$123.88
38
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
39
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
41
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
42
46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295
$130.91
45
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
46
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
47
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
48
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
49
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
50
26-0049 Seal/Oil for AC1-HH04-05M Air Compressor by Mi-T-M 260049
$30.95
51
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
52
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
54
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030
$101.63
-
70-0299 Kit V-Packing for AC1-PE02-20M Air Compressor by Mi-T-M 700299
$152.25
-
70-0148 Kit-Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700148
$161.38
-
70-0298 Kit Low Pressure Assembly for AC1-PE02-20M Air Compressor by Mi-T-M 700298
$124.55
-
70-0300 Kit V-Packing Assembly for AC1-PE02-20M Air Compressor by Mi-T-M 700300
$110.96
View full details

Frequently asked questions

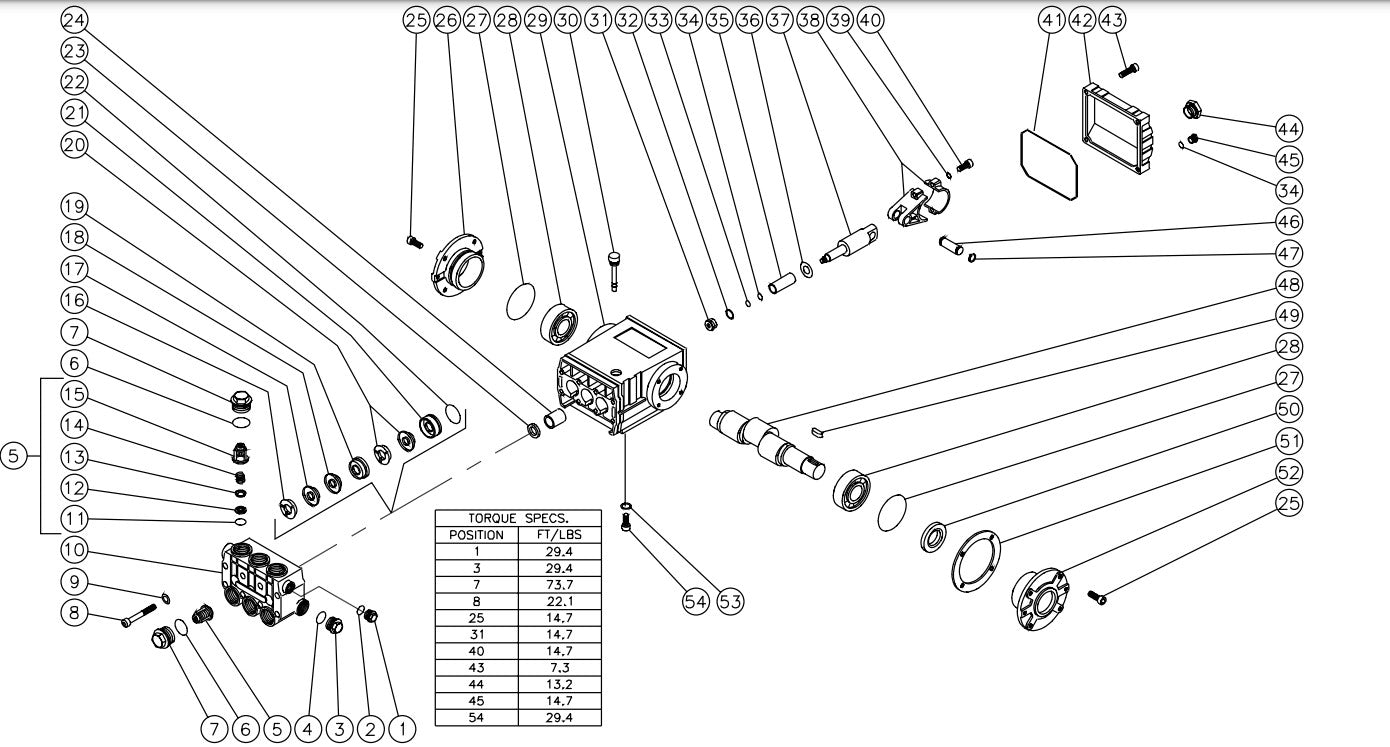

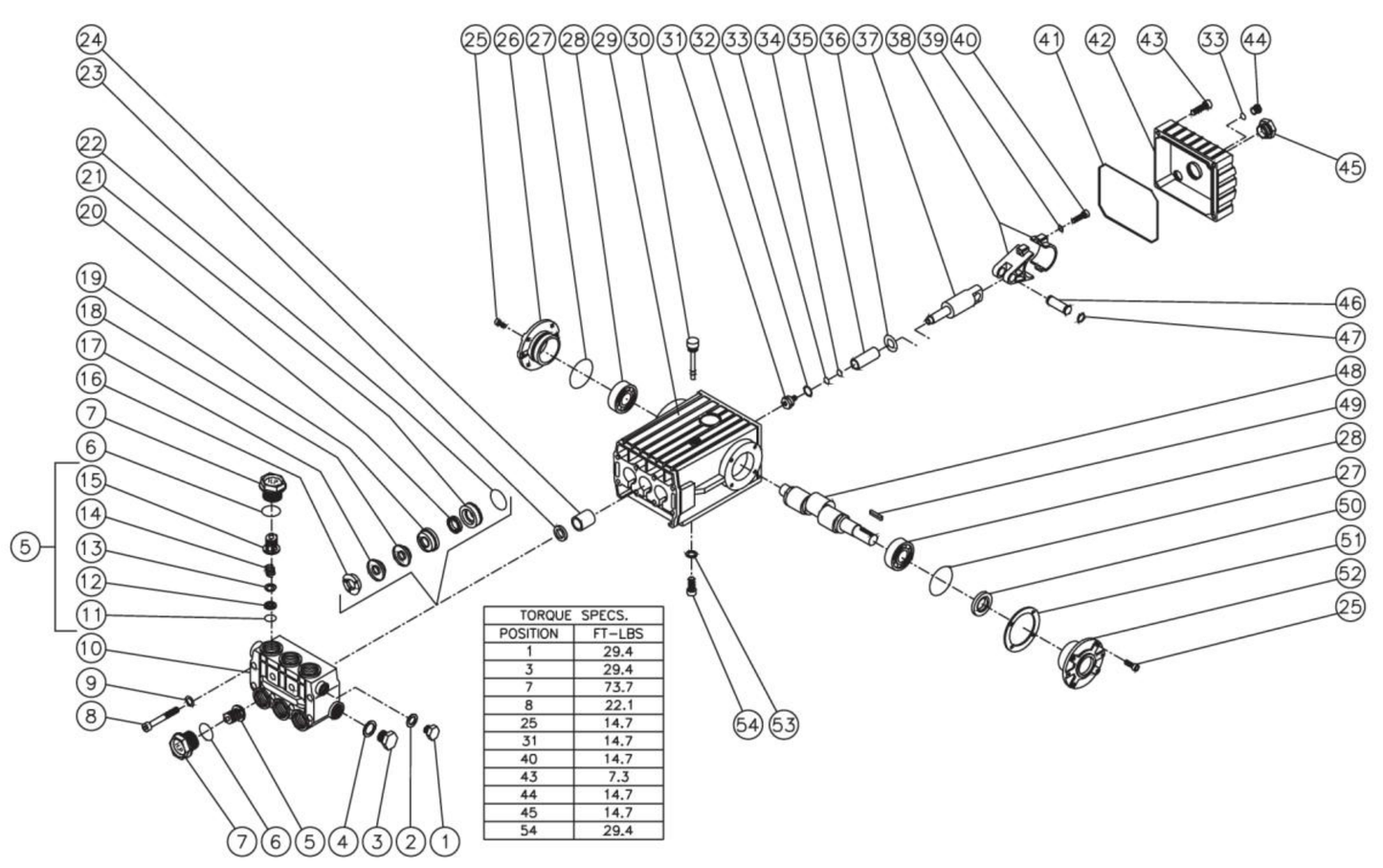

How do I use this diagram?
