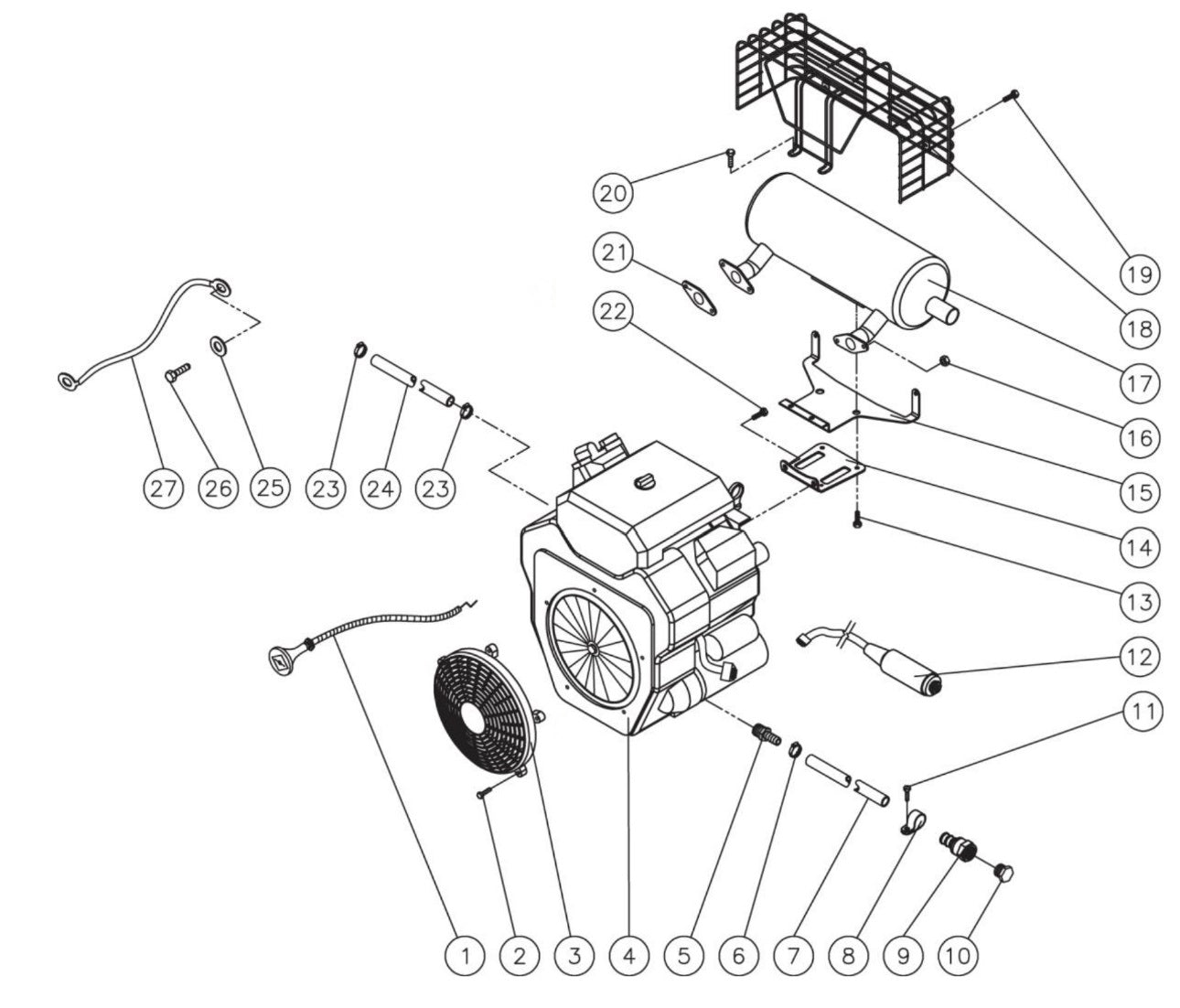

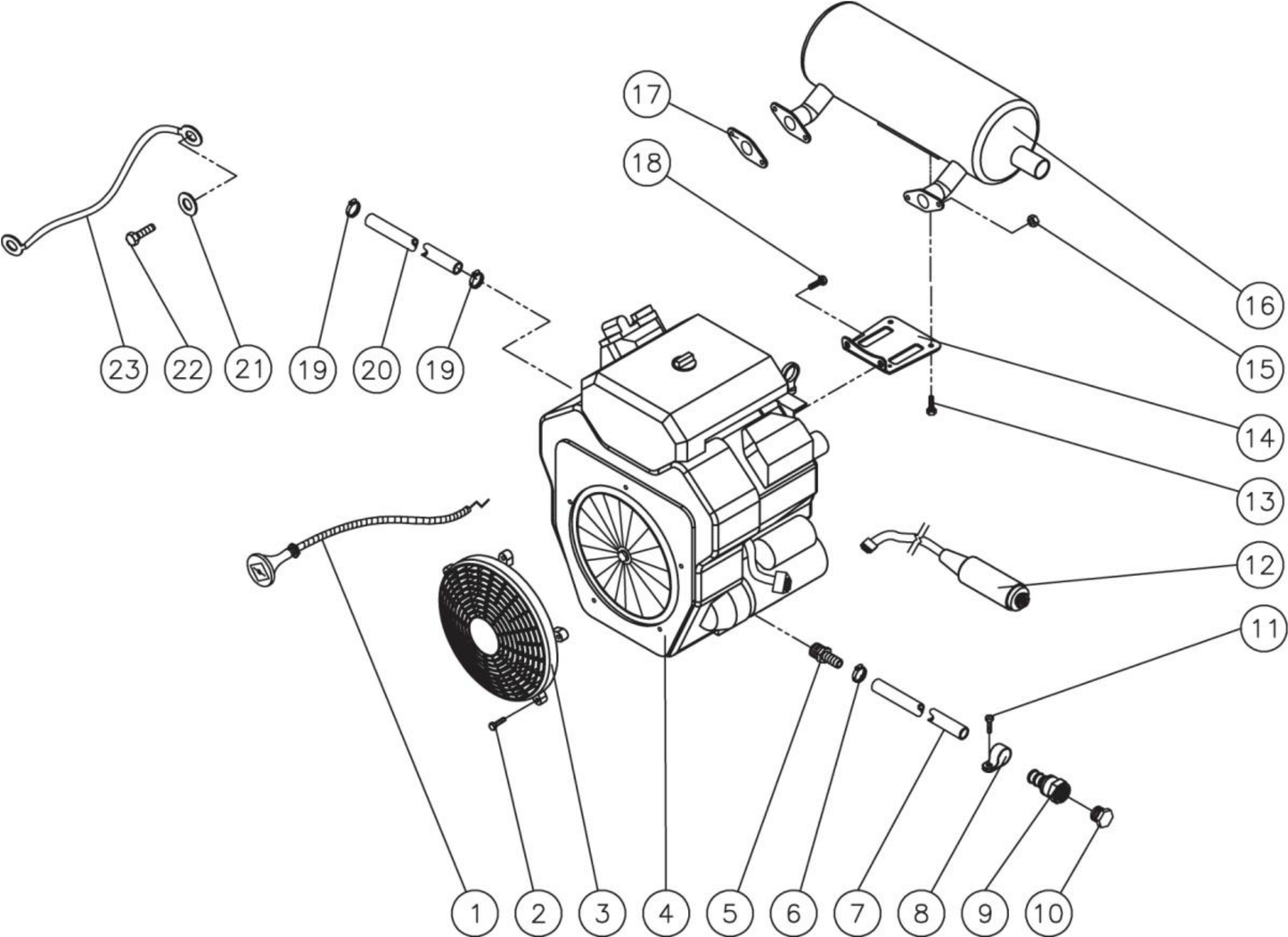

HS-3506-1MGK Engine Assembly Parts by Mi-T-M

HS-3506-1MGK Engine Assembly Parts by Mi-T-M

  • HS-3506-1MGK Engine Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
33-0081 Cable Kill Lever for AC1-PE02-20M1 Air Compressor by Mi-T-M 330081
$34.22
3
45-0072 BLOWER HOUSING FRONT GUARD W/ENGINE BY MITM
$28.35
4
1-0124 Engine-Kohler 25 Hp for AC1-PE03-20M Air Compressor by Mi-T-M 10124
$3,901.67
4
1-0165 ENGINE- 27HP KOLHER (850-0384) BY MITM
$4,549.50
5
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
6
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
7
15-0305 HOSE BY MITM
$3.86
8
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
9
23-0360 HOSE BARB BY MITM
$7.02
10
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
11
27-1200 BOLT BY MITM
$1.52
12
850-0299 Key Switch Assembly Kohler for AC1-PE03-20M Air Compressor by Mi-T-M 8500299
$349.04
16
45-0074 CANISTER MUFFLER BY MITM
$140.40
19
42-0004 HOSE CLAMP BY MITM
$5.82
20
15-0261 FUEL HOSE *(SIX FEET REQUIRED) (GASOLINE MODELS ONLY) BY MITM
$4.26
21
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
22
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
23
32-9113 CABLE BY MITM
$18.23
