HS-3506-1MGK Gasoline Models Unloader Assembly Parts by Mi-T-M

HS-3506-1MGK Gasoline Models Unloader Assembly Parts by Mi-T-M

  • HS-3506-1MGK Gasoline Models Unloader Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
30-3010 Hex Nut for MiTM Pressure Washers 303010
Call for Price call for price call for price
3
27-8434 Screw - M8 X 30Mm for MiTM Pressure Washers 278434
$5.93
4
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
5
8-0138 Body Top for AC1-HE15-05M Air Compressor by Mi-T-M 80138
$147.31
6
8-0277 Back Ring for AC1-HE15-05M Air Compressor by Mi-T-M 80277
$16.46
7
8-0124 Restrictor #1 for AC1-HE15-05M Air Compressor by Mi-T-M 80124
$44.77
9
25-0118 O-Ring 28.25 X 2.62Mm for AC1-HE15-05M Air Compressor by Mi-T-M 250118
$5.99
10
49-0026 Spring 23 X 61Lg .245 Stl for AC1-HE15-05M Air Compressor by Mi-T-M 490026
$44.59
11
8-0145 Valve Seat for AC1-HE15-05M Air Compressor by Mi-T-M 80145
$87.28
12
8-0141 Ring Back-Up 10 X 18 X 1.5 for AC1-HH04-05M Air Compressor by Mi-T-M 80141
$5.99
13
25-0121 O-Ring 3/8 X 9/16 for AC1-HH04-05M Air Compressor by Mi-T-M 250121
$2.85
15
8-0128 Orifice #1 for AC1-HE15-05M Air Compressor by Mi-T-M 80128
$39.37
16
8-0130 Nipple for AC1-HE15-05M Air Compressor by Mi-T-M 80130
$47.30
18
25-0119 O-Ring 9.92 X 2.62Mm for AC1-HE15-05M Air Compressor by Mi-T-M 250119
$5.99
19
8-0137 Body Middle for AC1-HE15-05M Air Compressor by Mi-T-M 80137
$199.35
22
25-0056 O-Ring 1-3/8 X 1-9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250056
$5.99
23
25-0120 O-Ring 3/8 X 1/2 for AC1-HH04-05M Air Compressor by Mi-T-M 250120
$1.99
24
8-0136 Piston Assembly for AC1-HE15-05M Air Compressor by Mi-T-M 80136
$121.14
25
26-0104 Seal for AC1-HE15-05M Air Compressor by Mi-T-M 260104
$35.36
27
8-0139 Washer-Br 13X 20 X 2 for AC1-HE15-05M Air Compressor by Mi-T-M 80139
$5.99
28
26-0105 Seal for AC1-HE15-05M Air Compressor by Mi-T-M 260105
$25.17
29
8-0140 Ring Back-Up 10 X 18 X 1.5 for AC1-HE15-05M Air Compressor by Mi-T-M 80140
$7.88
30
8-0134 Lower Body for AC1-HE15-05M Air Compressor by Mi-T-M 80134
$135.71
-
70-0013 Kit Unloader for AC1-HE15-05M Air Compressor by Mi-T-M 700013
$214.86
-
852-0014 Kit Unloader Orifice K7.0 for AC2-PH11-30M Air Compressor by Mi-T-M 8520014
$171.32
-
852-0015 Kit Unloader Orifice K7.1 for AC1-PE02-20M Air Compressor by Mi-T-M 8520015
$95.27
View full details

Frequently asked questions

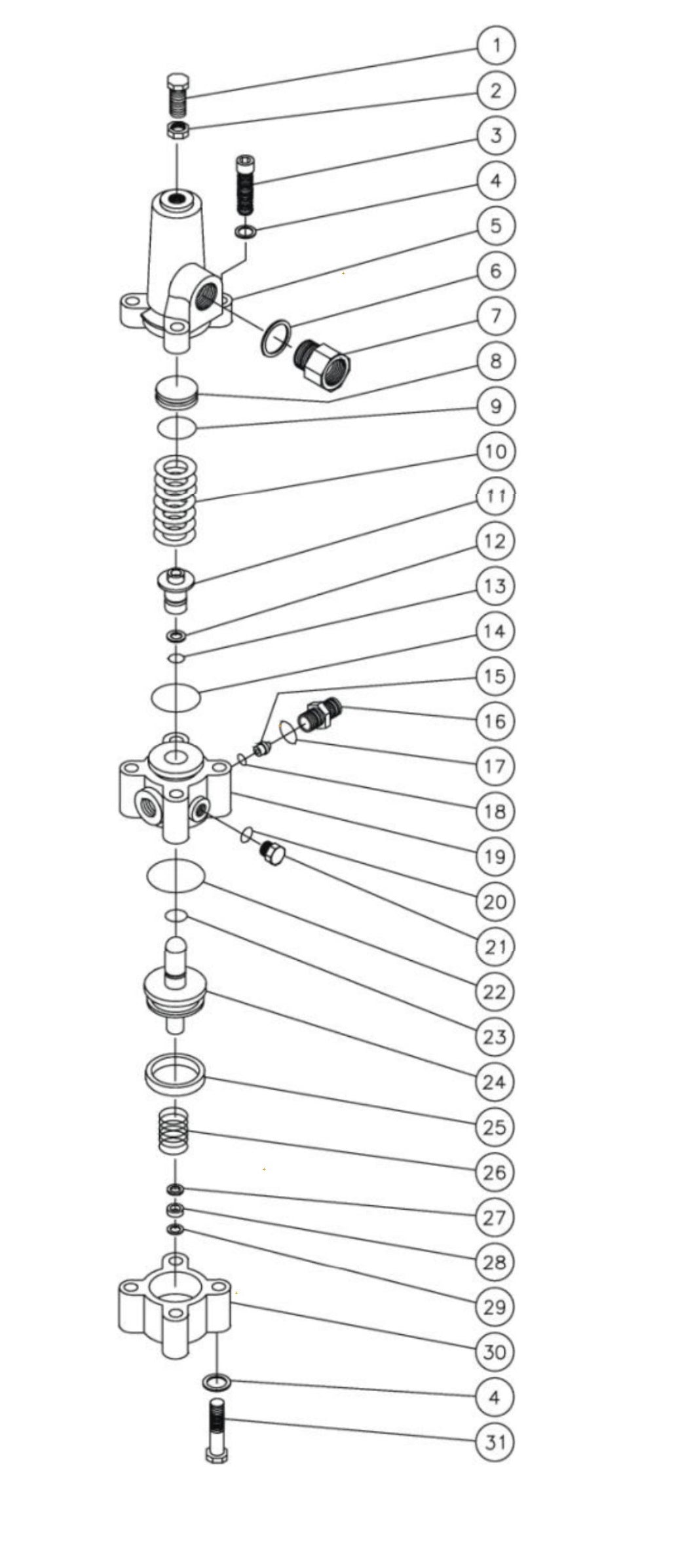

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
