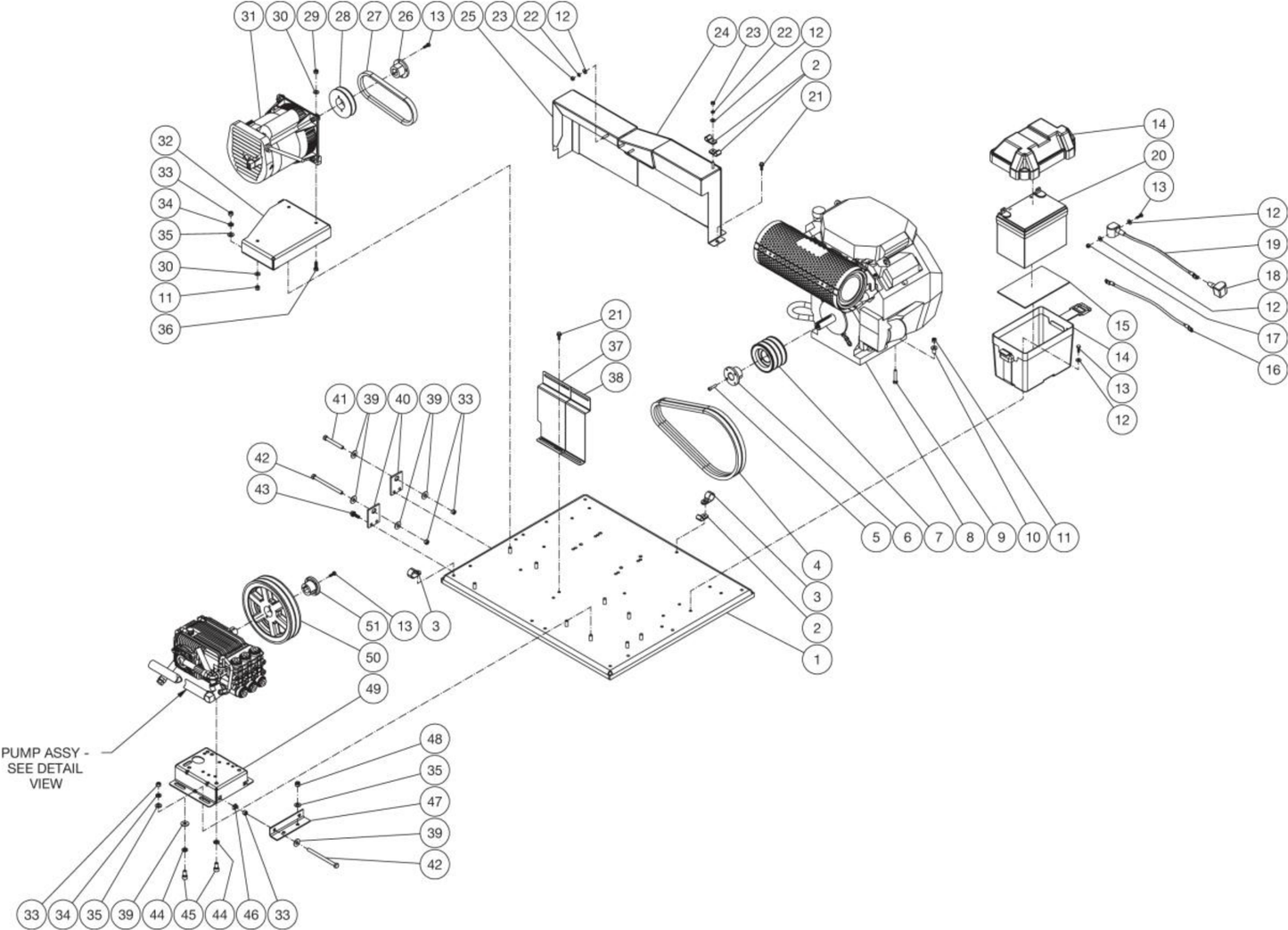

HS-3506-1MGK/HS-4004-1MAK (sn:0-99999999) Isolation Plate Assembly Parts by Mi-T-M

HS-3506-1MGK/HS-4004-1MAK (sn:0-99999999) Isolation Plate Assembly Parts by Mi-T-M

  • HS-3506-1MGK/HS-4004-1MAK (sn:0-99999999) Isolation Plate Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0170A18 ISOLATION PLATE BY MITM
$466.70
2
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
2
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
3
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
3
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
4
11-0052 Cog Belt Bx38 for AC1-PE03-08M Air Compressor by Mi-T-M 110052
$31.19
4
11-0050 BELT (4004) BY MITM
$18.23
5
27-0850 BOLT BY MITM
$0.68
6
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
6
9-0007 Bushing H X 1-7/16 Motor for AC1-PE02-08M Air Compressor by Mi-T-M 90007
$18.25
7
10-0061 Sheave 3Bk45H for AC1-HE15-05M Air Compressor by Mi-T-M 100061
$71.78
7
10-0011 Sheave 3Bk50H Cast Iron for AC1-HR45-05M Air Compressor by Mi-T-M 100011
$58.89
8
850-0294 ENGINE (HDC-3005-0V6G) BY MITM
$3,746.19
8
850-0393 ENGINE (HDC-3505-1H6G; HDC-4004-1H6A) BY MITM
$4,342.28
8
850-0295 ENGINE- 21 HP VANGUARD (3505-0V6G) BY MITM
$4,314.47
8
850-0293 ENGINE- 25 HP KOHLER (3506-0K6G) BY MITM
$4,910.90
8
850-0333 ENGINE (HDC-3505-0K6G/HDC-4004-0K6A) BY MITM
$3,719.19
9
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
9
27-0120 Bolt for MiTM Pressure Washers 270120
$10.49
10
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
10
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
29
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
10
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
34
28-0004 Washer for MiTM Pressure Washers by MiTM 280004
$4.49
11
30-0157 Locknut for ABS Air Compressor by Mi-T-M 300157
$2.85
11
30-0159 Locknut for ABS Air Compressor by Mi-T-M 300159
$2.85
47
30-0159 Locknut for ABS Air Compressor by Mi-T-M 300159
$2.85
12
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
13
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
14
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
15
33-0509 RUBBER PAD BY MITM
$5.67
16
32-9113 CABLE BY MITM
$18.23
17
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
18
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
19
32-9114 CABLE BY MITM
$28.43
20
32-1077 BATTERY BY MITM
$429.53
21
27-1200 BOLT BY MITM
$1.52
22
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
23
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
24
6-0092A18 PUMP BELTGUARD BY MITM
$43.20
25
6-0091A18 BELTGUARD BY MITM
$31.05
26
9-0033 BUSHING BY MITM
$11.69
27
11-0048 Belt -Bx22 for AC1-PE03-08M Air Compressor by Mi-T-M 110048
$27.93
28
10-0028 Sheave Bk40H for AC1-HE15-05M Air Compressor by Mi-T-M 100028
$30.51
28
10-0039 SHEAVE (3008 HONDA/KOHLER) BY MITM
$30.38
30
850-0352 Alternator Assy for AC1-PE03-20M Air Compressor by Mi-T-M 8500352
$725.37
31
20-0583A18 GENERATOR HAT BY MITM
$36.45
32
30-0006 Hex Nut BY MITM
$0.68
33
29-0008 LOCKWASHER BY MITM
$2.55
35
27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
36
20-1642A18 BRACKET BY MITM
$12.83
37
20-0589A18 BELTGUARD COVER BY MITM
$12.15
38
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
39
20-0587A18 GENERATOR TENSION BRACKET BY MITM
$5.40
40
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
41
27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133
$1.99
42
27-1201 BOLT BY MITM
$0.35
43
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
43
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
44
27-8471 BOLT BY MITM
$7.65
44
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
45
30-6025 CLIP NUT BY MITM
$7.13
46
20-0584A18 Tension Bracket BY MITM
$10.13
48
5-0153A18 Pump Hat BY MITM
$34.43
49
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
49
10-0012 Sheave 2Bk90H for AC1-PE02-20M1 Air Compressor by Mi-T-M 100012
$85.49
50
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
27
Call for Price call for price call for price
