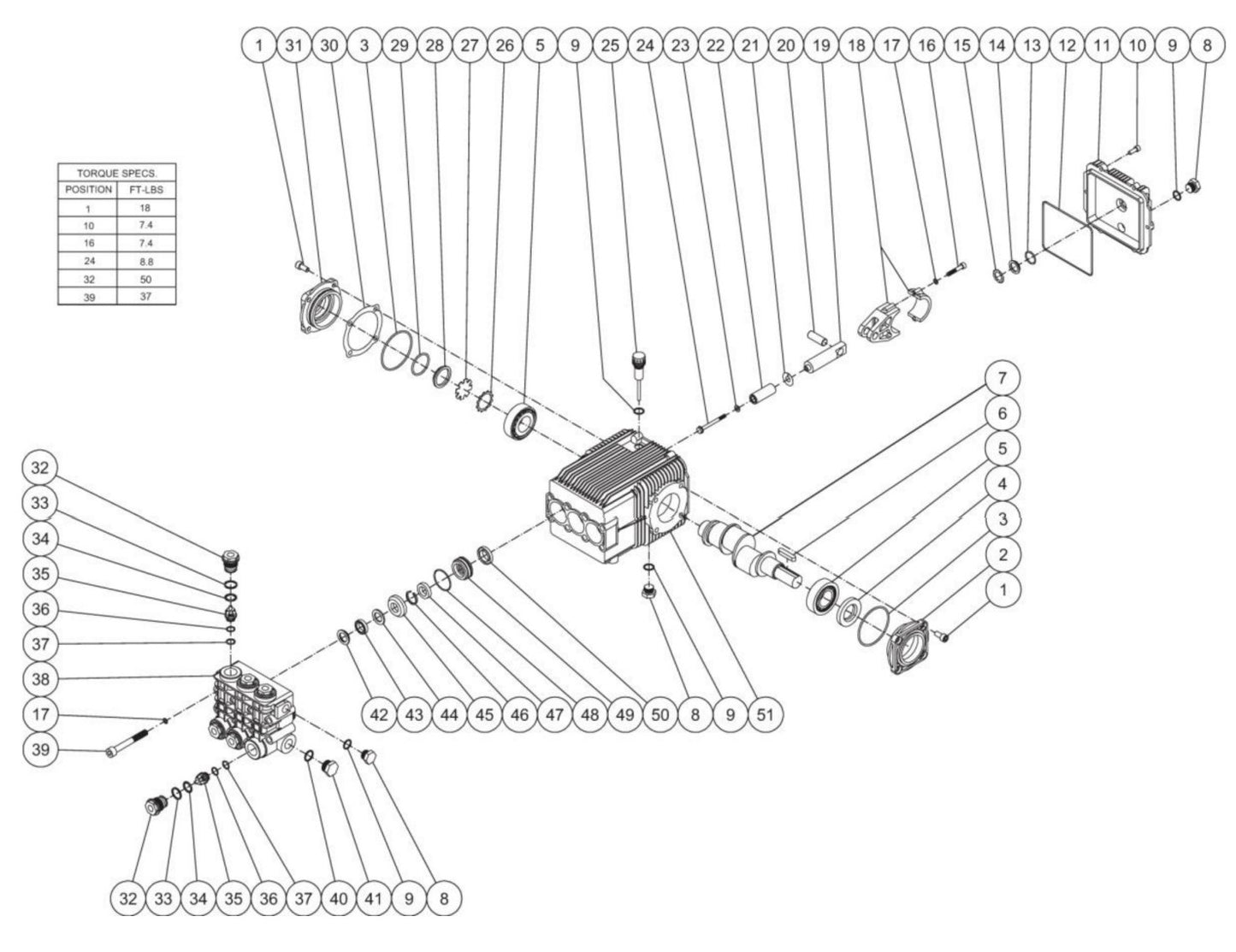

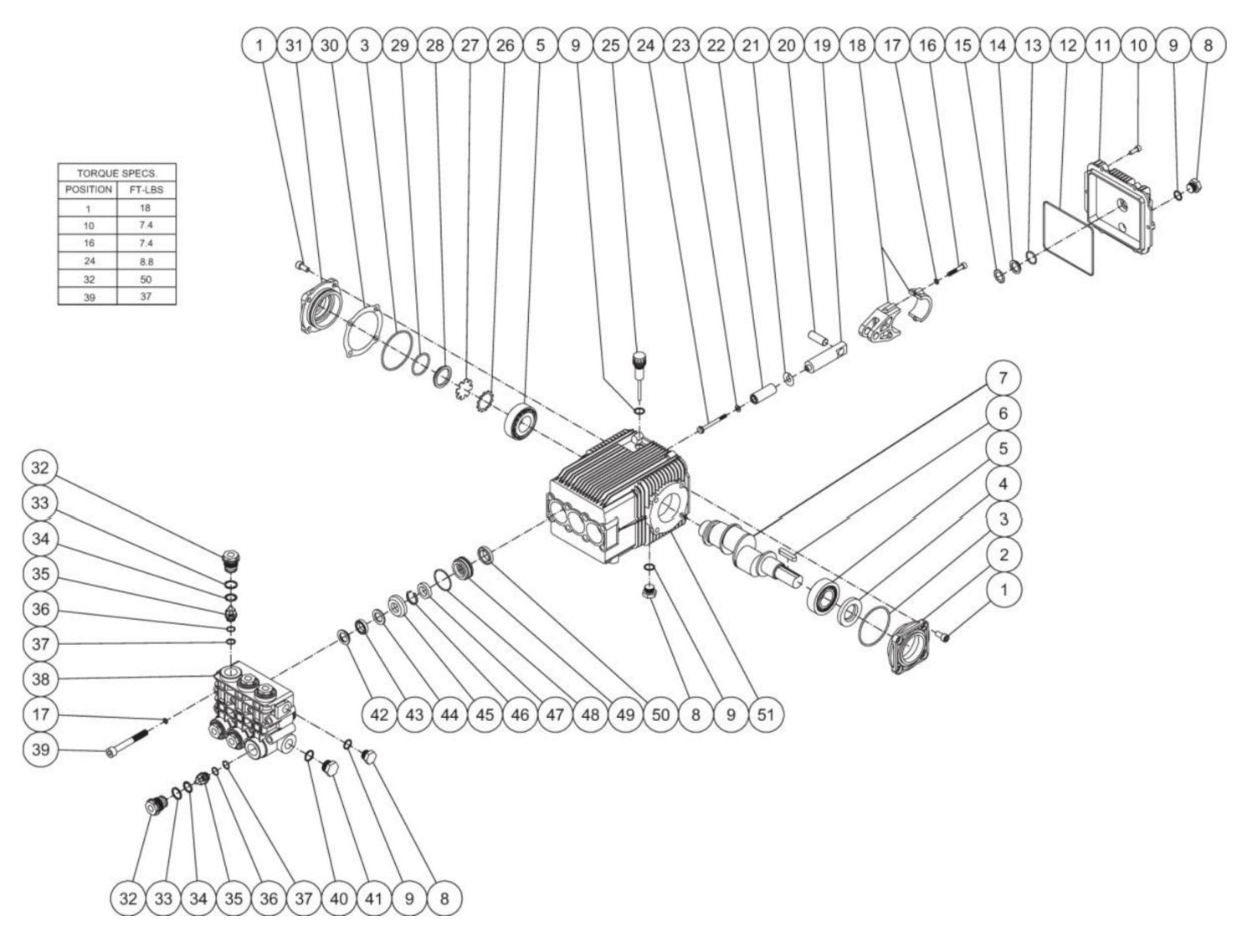

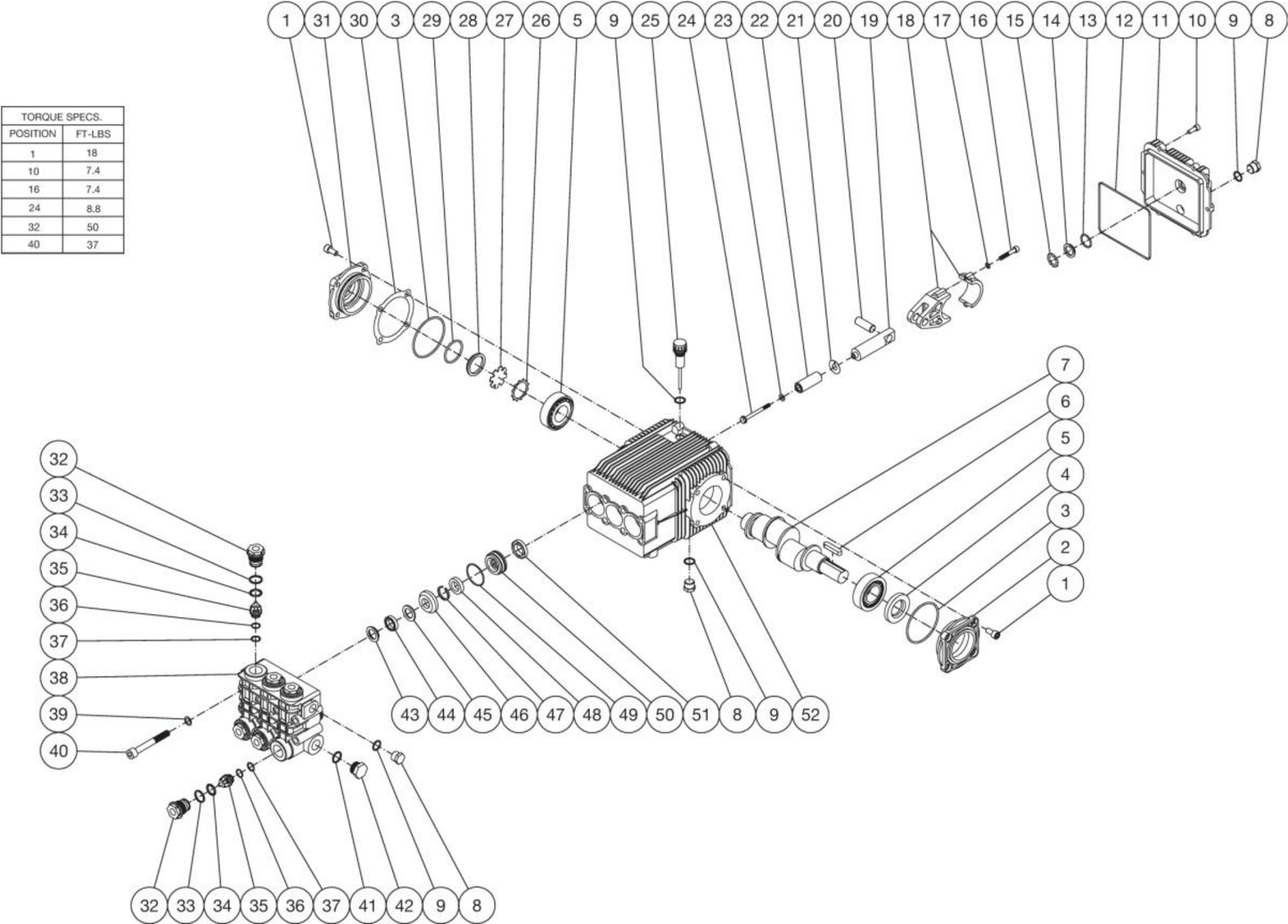

HS-4004, HVS-4004 Series Pump Assembly Parts by Mi-T-M

HS-4004, HVS-4004 Series Pump Assembly Parts by Mi-T-M

  • HS-4004, HVS-4004 Series Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
2
46-0909 Cover for MiTM Pressure Washers 460909
$128.87
3
25-0512 O-Ring for MiTM Pressure Washers 250512
$16.92
4
26-0243 Oil Seal for MiTM Pressure Washers 260243
$62.76
5
48-0073 Bearing for MiTM Pressure Washers 480073
$408.81
7
46-0944 Crankshaft for MiTM Pressure Washers 460944
$1,561.02
8
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
9
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SR09-20M Air Compressor by Mi-T-M 250510
$7.28
10
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
11
46-0912 Cover for MiTM Pressure Washers 460912
$281.79
12
25-0513 O-Ring for MiTM Pressure Washers 250513
Call for Price call for price call for price
16
27-8892 Bolt for MiTM Pressure Washers 278892
Call for Price call for price call for price
17
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
18
46-0913 Connecting Rod for MiTM Pressure Washers 460913
$303.80
19
46-0915 Plunger Rod for MiTM Pressure Washers 460915
$246.23
20
46-0914 Pin for MiTM Pressure Washers 460914
$58.86
21
46-0916 Washer for MiTM Pressure Washers 460916
$19.98
22
46-0917 Piston for MiTM Pressure Washers 460917
$293.39
23
29-0014 Washer for MiTM Pressure Washers 290014
$15.30
24
27-8965 Bolt for MiTM Pressure Washers 278965
$57.12
25
39-0204 Dipstick for MiTM Pressure Washers 390204
$59.07
26
46-0924 Retainer for MiTM Pressure Washers 460924
Call for Price call for price call for price
27
46-0925 Pump for MiTM Pressure Washers 460925
$11.03
28
46-0926 Oil Sight Glass for MiTM Pressure Washers 460926
$21.39
29
25-0514 O-Ring for MiTM Pressure Washers 250514
$7.65
30
46-0947 Shim - .05Mm for MiTM Pressure Washers 460947
$17.10
30
46-0948 Shim - .10Mm for MiTM Pressure Washers 460948
$15.30
30
46-0949 Shim - .19Mm for MiTM Pressure Washers 460949
$15.30
30
46-0950 Shim - .25Mm for MiTM Pressure Washers 460950
$15.30
31
46-0918 Cover for MiTM Pressure Washers 460918
$190.35
32
39-0201 Valve Cap for MiTM Pressure Washers 390201
$107.46
33
25-0509 Back-Up Ring for MiTM Pressure Washers 250509
$24.18
35
22-0318 Valve (See Kit 70-0314) for MiTM Pressure Washers 220318
$182.73
36
25-0516 Back-Up Ring (See Kit 70-0314) for MiTM Pressure Washers 250516
$20.40
37
25-0407 O-Ring 12.42 X 1.78Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250407
$8.88
38
46-0900 Pump Manifold for MiTM Pressure Washers 460900
$1,728.71
39
27-8470 Bolt for MiTM Pressure Washers 278470
$47.70
41
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
42
46-0901 Support Ring (See Kit 70-0317) for MiTM Pressure Washers 460901
$20.40
43
46-0902 High Pressure Seal (See Kit 70-0317) for MiTM Pressure Washers 460902
$220.14
44
46-0903 Back-Up Ring (See Kit 70-0317) for MiTM Pressure Washers 460903
$117.62
45
46-1201 Guide for MiTM Pressure Washers 461201
$155.42
46
46-0905 Back-Up Ring (See Kit 70-0317) for MiTM Pressure Washers 460905
$119.42
47
46-0906 Low Pressure Seal (See Kit 70-0317) for MiTM Pressure Washers 460906
$120.63
48
25-0511 O-Ring (See Kit 70-0317) for MiTM Pressure Washers 250511
$20.40
49
46-1200 Guide Rear for MiTM Pressure Washers 461200
$118.58
50
26-0242 Oil Seal for MiTM Pressure Washers 260242
$62.84
51
46-0911 Crankcase for MiTM Pressure Washers 460911
$686.96
-
70-0317 Water Seals Kit (Inc. 3 Each 42, 43, 44, 46, 47, 48) for MiTM Pressure Washers 700317
$534.00
-
70-0314 Valves Kit (Inc. 6 Each 35, 36, 37) for MiTM Pressure Washers 700314
$516.29
