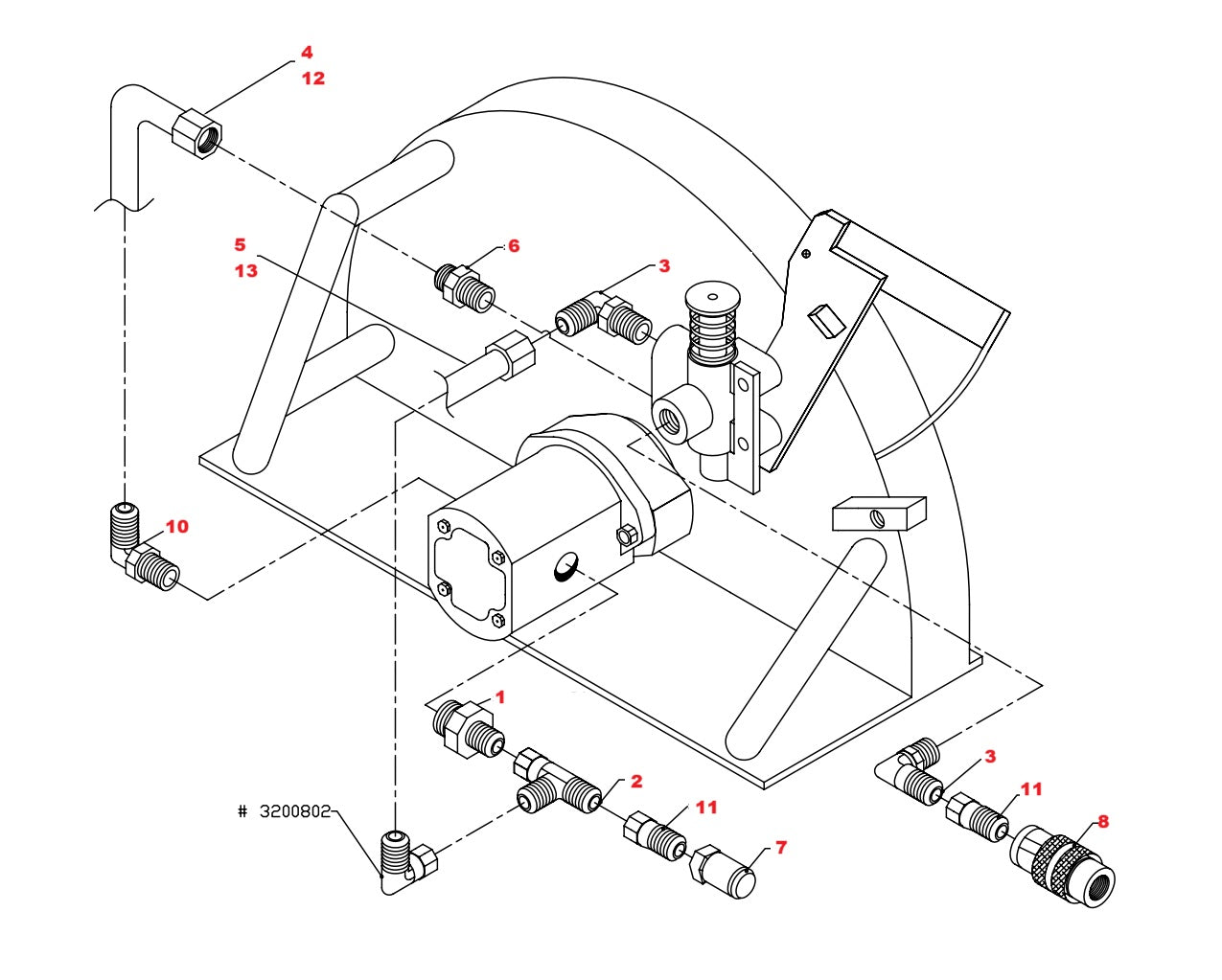

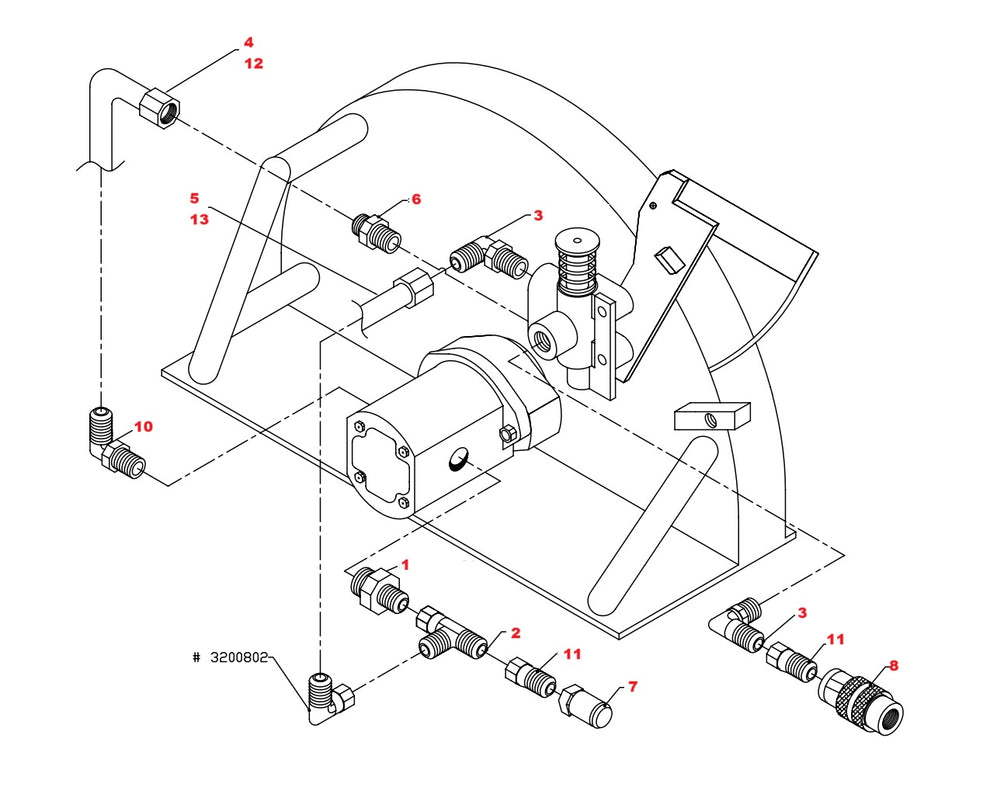

HS20-F HS24-F Hydraulic Hand Saw Flush Cut Assembly Parts-3

HS20-F HS24-F Hydraulic Hand Saw Flush Cut Assembly Parts-3

  • HS20-F HS24-F Hydraulic Hand Saw Flush Cut Assembly Parts-3
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502921 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502924 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$14.93
3
2503334 Tube Assembly for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$109.00
4
2503335 Tube Assembly for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$104.67
5
2702689 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.91
6
3200105 Male QD for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$59.14
7
3200109 Adapter, 3/8" O-Ring to 3/8" M. Pipe for WS25 Wire Saw Core Cut by Diamond Products
$6.99
8
3200802 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
9
3200803 Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
10
3201274 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$20.45
11
Diamond Products 24" FC FRONT HYD TUBE HS-24-F-8 6075032
$109.00
12
Diamond Products 24" FC REAR HYD TUBE HS-24-F-8 6075033
$108.00
View full details
