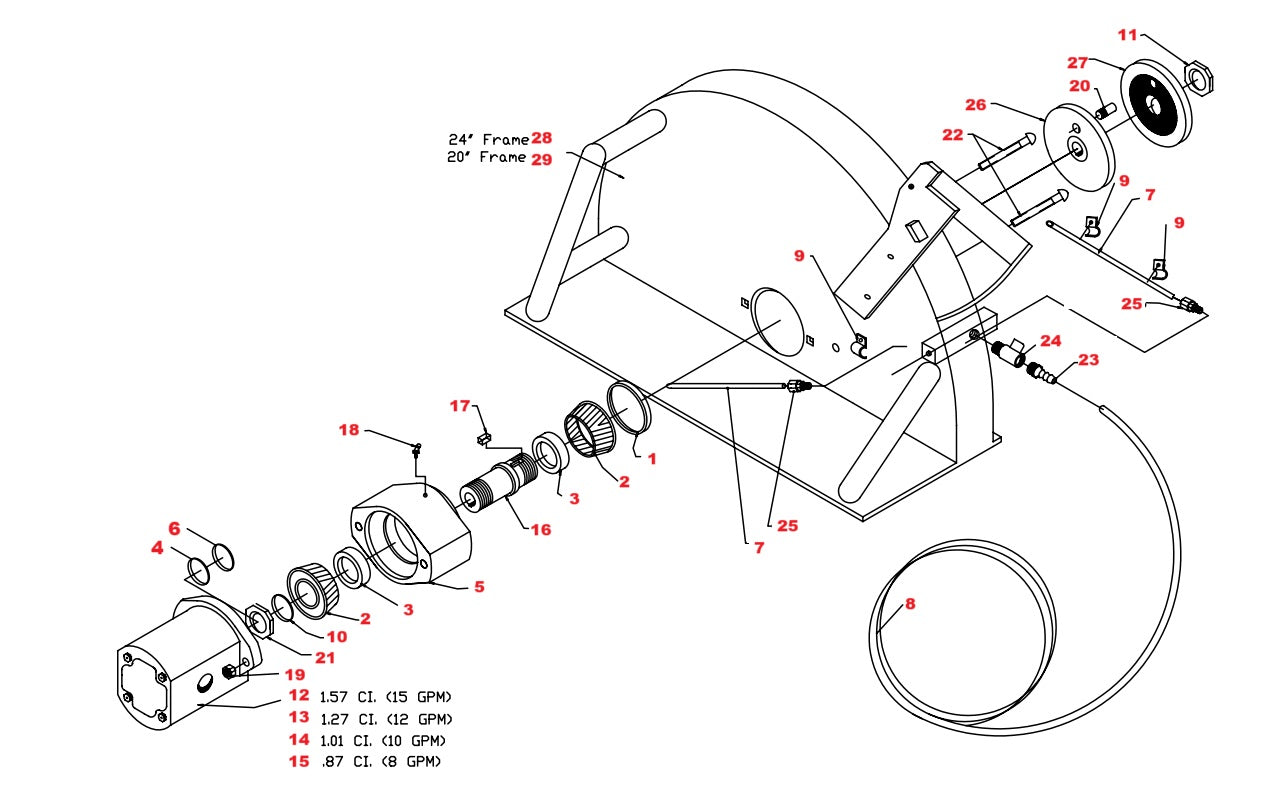

HS20 HS24 Hydraulic Hand Saw Assembly Parts-1

HS20 HS24 Hydraulic Hand Saw Assembly Parts-1

  • HS20 HS24 Hydraulic Hand Saw Assembly Parts-1
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2501494 Load Adapter Shaft Seal for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$25.67
2
2501628 Bearing for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$57.03
3
2501629 Race for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$27.98
4
2501630 Hydraulic Motor Shaft Seal for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$137.61
5
2502546 Housing for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$654.39
6
2502563 Backing Ring for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$60.26
7
2502908 1/4" Water Way Tubing for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
2502909 1/4" Red Water Hose for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
2502914 Clamp Water Tube for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.48
10
2502934 Washer for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$11.26
11
2600167 BS Nut LH Thread for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6,709.23
12
2600457 15 GPM Motor for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$1,051.20
13
2600458 12 GPM Motor for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$1,006.80
14
2600459 8 GPM Motor for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$1,298.88
15
2600460 10 GPM Motor for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$1,066.23
16
2602647 Shaft for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
2702947 Inner Collar Key for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
18
2703023 Grease Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$3.99
19
2900018 3/8" Nylock Nut for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
20
2900605 Shear Pin for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.16
21
2902961 Stover Half Nut for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$50.64
22
2903040 Carriage Bolt for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.99
23
3200669 1/4" Hose Barb for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$6.85
24
3201271 Water Valve for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$32.28
25
3201276 Compression Fitting for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$12.00
26
6030205 Inner Collar for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$72.00
27
6030206 Outer Collar for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$59.62
28
6030261 24" Frame Only for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$1,000.89
29
6030262 20" Frame Only for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$965.25
View full details
