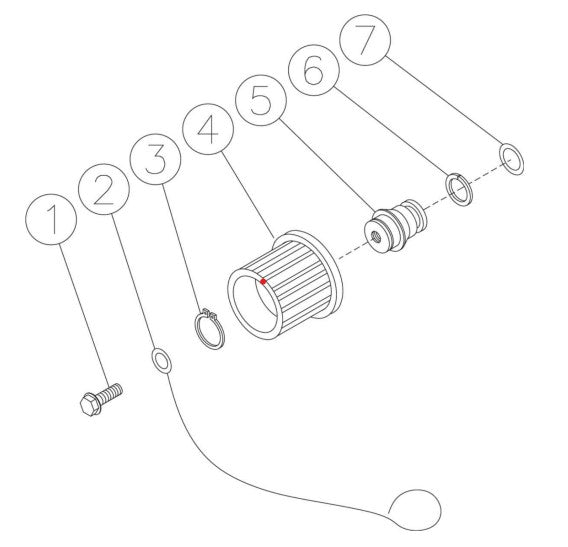

HSD Series Coil Drain Ring Assembly Parts By MiTM

HSD Series Coil Drain Ring Assembly Parts By MiTM

  • HSD Series Coil Drain Ring Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-9526 Bolt BY MITM
$1.35
2
33-0260 Cable Retainer for AC1-PE15-08M Air Compressor by Mi-T-M 330260
$8.98
3
33-0261 Retaining Ring 5/8" for AC1-PE15-08M Air Compressor by Mi-T-M 330261
Call for Price call for price call for price
4
16-0239 Hand Wheel M11D X 17,5Mm for AC1-PE15-08M Air Compressor by Mi-T-M 160239
$21.14
5
24-0147 Plug/Drain for AC1-PE15-08M Air Compressor by Mi-T-M 240147
$10.10
6
25-0424 Back Up Ring for AC1-PE15-08M Air Compressor by Mi-T-M 250424
$2.85
7
25-0423 O-Ring 9.93 X 2.62Mm for AC1-PE15-08M Air Compressor by Mi-T-M 250423
$4.85
