HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10, DH-1002, HSE-1002 High Pressure Pump Assembly Parts by Mi-T-M

HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10, DH-1002, HSE-1002 High Pressure Pump Assembly Parts by Mi-T-M

  • HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10, DH-1002, HSE-1002 High Pressure Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
46-0221 Crankcase for MiTM Pressure Washers 460221
$757.83
4
46-0229 Drip Pan for MiTM Pressure Washers 460229
$87.78
7
46-0163 Manifold Pump Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 460163
$692.93
8
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
9
27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
20
46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158
$28.58
21
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
22
25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128
$3.99
23
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
28
46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148
$107.42
33
46-0151 Crankcase Cover for MiTM Pressure Washers 460151
Call for Price call for price call for price
34
27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
39
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
40
38-0032 Flange Pump Electric for AC1-PE15-20M1 Air Compressor by Mi-T-M 380032
$87.82
8
26-0126 Seal Oil for AC1-PE15-20M1 Air Compressor by Mi-T-M 260126
$30.95
34
46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245
$4.85
45
46-0277 Crankshaft for MiTM Pressure Washers 460277
$792.50
46
46-0233 Crankshaft (Cd-2003) for MiTM Pressure Washers 460233
$1,078.28
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
48
70-0024 Kit Packing for AC1-PE15-20M1 Air Compressor by Mi-T-M 700024
$54.48
-
70-0023 Isolator 2" Od X 1.95 for AM2-PR09-30M Air Compressor by Mi-T-M 700023
$64.05
View full details

Frequently asked questions

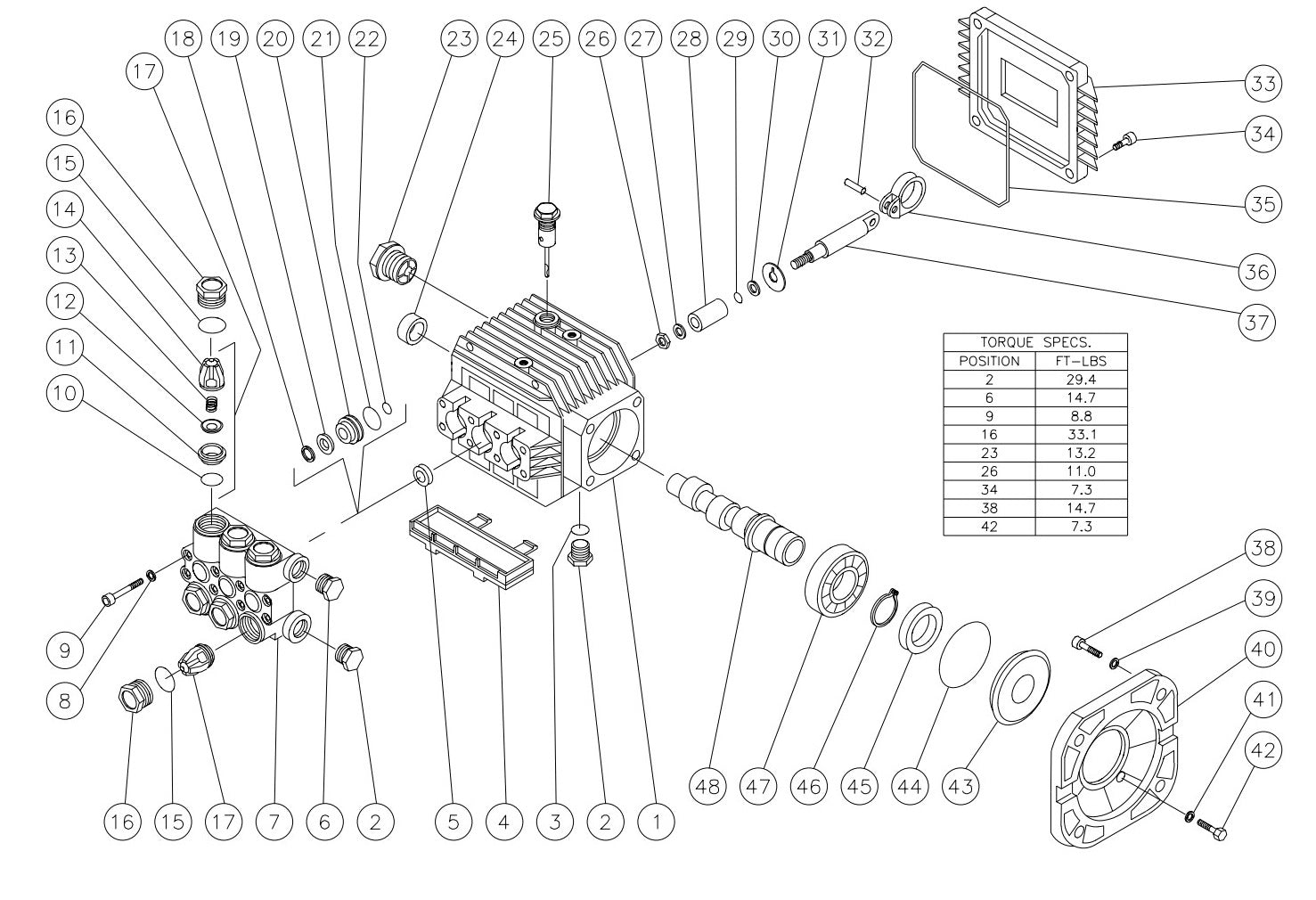

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
