HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10 Unloader Assembly Parts by Mi-T-M

HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10 Unloader Assembly Parts by Mi-T-M

  • HSE-1002-0M10, HSE-1502-0M10, HSE-2003-0M10 Unloader Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
39-0092 Adjusting Cap for AC1-PE15-20M1 Air Compressor by Mi-T-M 390092
$34.46
2
49-0120 Spring for AC1-PE15-20M1 Air Compressor by Mi-T-M 490120
$26.43
3
8-0421 Spring Retainer for AC1-PE15-20M1 Air Compressor by Mi-T-M 80421
$5.99
4
46-0324 Piston Stem for AC1-PE15-20M1 Air Compressor by Mi-T-M 460324
$44.59
5
25-0206 Back-Up Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250206
$21.32
7
8-0479 Set Screw for AC1-PE15-20M1 Air Compressor by Mi-T-M 80479
$5.99
8
46-0651 Locknut for AC1-PE15-20M1 Air Compressor by Mi-T-M 460651
$13.13
9
8-0424 Piston Retainer for AC1-PE15-20M1 Air Compressor by Mi-T-M 80424
$48.81
12
25-0203 Back-Up Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250203
$11.65
13
8-0433 Washer for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 80433
$5.99
14
8-0427 Isolator 2" Od X 1.97 for AM2-PR09-30M Air Compressor by Mi-T-M 80427
$23.97
15
23-0286 Banjo Bolt 1/4 Bsp for AC1-PE15-20M1 Air Compressor by Mi-T-M 230286
$47.10
17
46-0320 Valve And Ball Assembly for AC1-PE15-20M1 Air Compressor by Mi-T-M 460320
$37.54
18
8-0430 Bypass Seat for AC1-PE15-20M1 Air Compressor by Mi-T-M 80430
$22.71
19
25-0202 O-Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250202
$5.99
21
25-0376 O-Ring 2.4 X 10.3 for AC1-PE15-20M1 Air Compressor by Mi-T-M 250376
$13.13
22
23-0285 Banjo Connector for AC1-PE15-20M1 Air Compressor by Mi-T-M 230285
$62.26
24
25-0375 O-Ring 2.54 X 4 for AC1-PE15-20M1 Air Compressor by Mi-T-M 250375
$4.85
25
8-0426 Flow Balancer for AC1-PE15-20M1 Air Compressor by Mi-T-M 80426
$16.46
26
49-0121 Spring for AC1-PE15-20M1 Air Compressor by Mi-T-M 490121
$5.99
-
39-0091 Outlet Fitting for AC1-PE15-20M1 Air Compressor by Mi-T-M 390091
$34.46
-
8-0470 Unloader for AC1-PE15-20M1 Air Compressor by Mi-T-M 80470
$139.90
View full details

Frequently asked questions

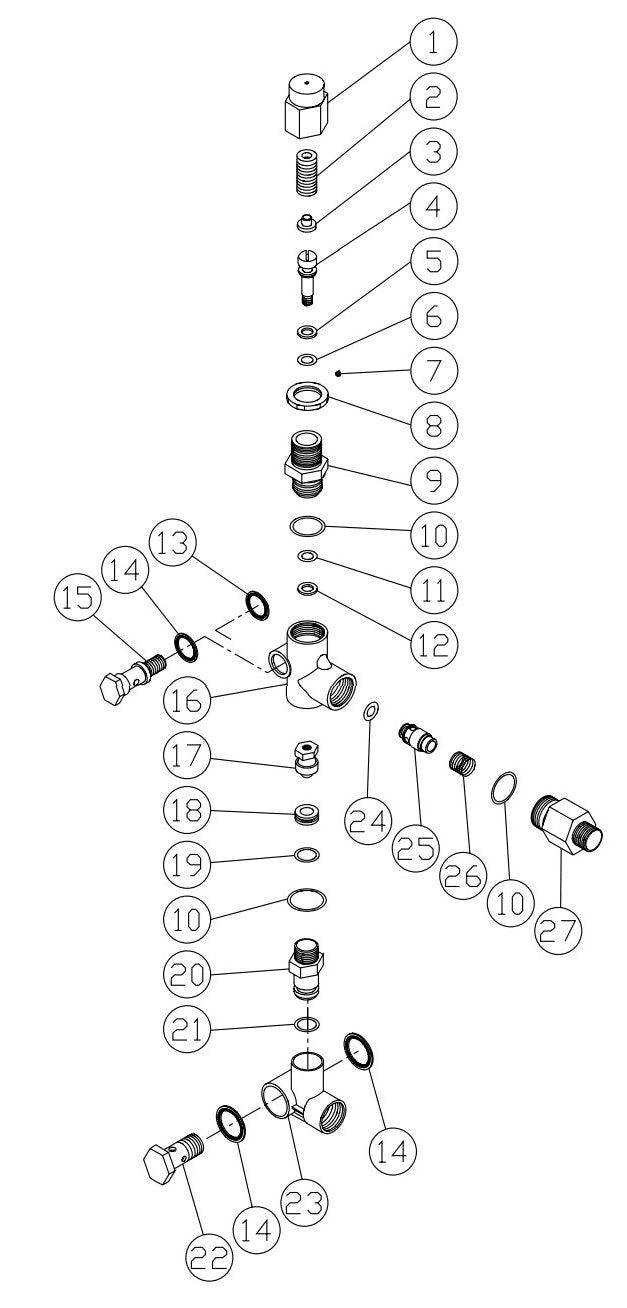

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
