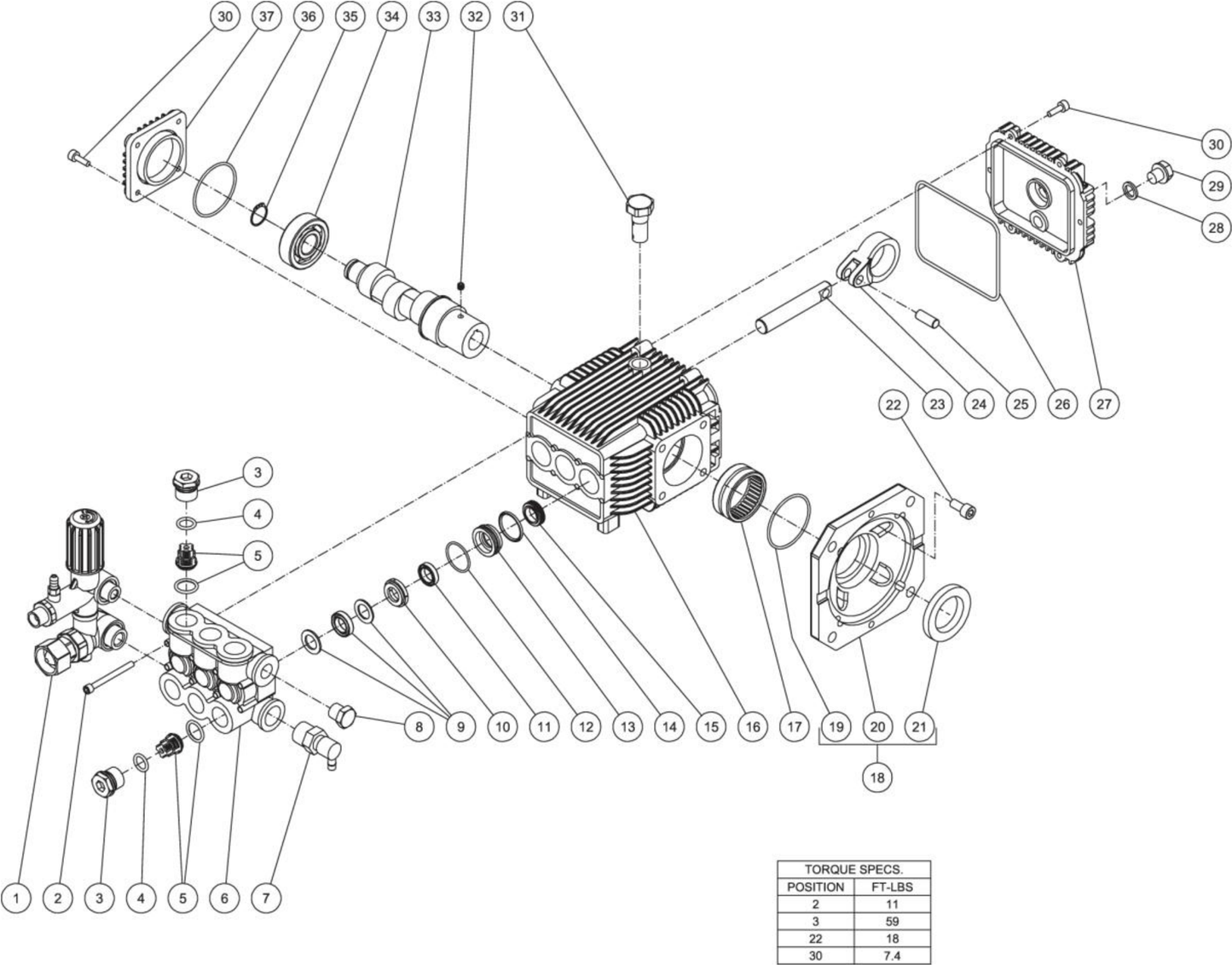

HSE-1002-0MM11 (sn:0-15105510)/(sn:15105511-15110728), HSE-1502-0MM11, HSE-2003-0MM11 (sn:15105511-15110728), (sn:0-15105510), DH-1002-SE0E1M,DH-1502-SE0E1M, DH-2003-SE0E2M (sn:0-15105510)/(sn:15105511-15110728) High Pressure Pump Assembly Parts by Mi-T-M

HSE-1002-0MM11 (sn:0-15105510)/(sn:15105511-15110728), HSE-1502-0MM11, HSE-2003-0MM11 (sn:15105511-15110728), (sn:0-15105510), DH-1002-SE0E1M,DH-1502-SE0E1M, DH-2003-SE0E2M (sn:0-15105510)/(sn:15105511-15110728) High Pressure Pump Assembly Parts by Mi-T-M

  • HSE-1002-0MM11 (sn:0-15105510)/(sn:15105511-15110728), HSE-1502-0MM11, HSE-2003-0MM11 (sn:15105511-15110728), (sn:0-15105510), DH-1002-SE0E1M,DH-1502-SE0E1M, DH-2003-SE0E2M (sn:0-15105510)/(sn:15105511-15110728) High Pressure Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
8-0628 DANAU UNLOADER WITH CHEM INJ. BY MITM 8-0628 DANAU UNLOADER WITH CHEM INJ. BY MITM
$66.63
2
27-0898 Bolt for MiTM Air Compressors by MiTM 270898 27-0898 Bolt for MiTM Air Compressors by MiTM 270898
$2.99
3
39-0231 Valve Plug M22-1.5P for AM2-VE75-80M Air Compressor by Mi-T-M 390231 39-0231 Valve Plug M22-1.5P for AM2-VE75-80M Air Compressor by Mi-T-M 390231
$11.82
4
25-0622 O-Ring 18.38 X 2.62Mm for MiTM Air Compressors by MiTM 250622 25-0622 O-Ring 18.38 X 2.62Mm for MiTM Air Compressors by MiTM 250622
$4.43
5
70-0502 Kit Valves W/O-Rings for AM2-VE75-80M Air Compressor by Mi-T-M 700502 70-0502 Kit Valves W/O-Rings for AM2-VE75-80M Air Compressor by Mi-T-M 700502
$36.36
6
46-1503 Manifold Head Brass for MiTM Air Compressors by MiTM 461503 46-1503 Manifold Head Brass for MiTM Air Compressors by MiTM 461503
$218.36
7
22-0414 HEAT DUMP VALVE BY MITM 22-0414 HEAT DUMP VALVE BY MITM
$14.45
8
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203 39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
10
46-1311 Intermediate Seal Retainer for AM2-VE75-80M Air Compressor by Mi-T-M 461311 46-1311 Intermediate Seal Retainer for AM2-VE75-80M Air Compressor by Mi-T-M 461311
$12.21
13
46-1312 Lp Retainer Ring for AM2-VE75-80M Air Compressor by Mi-T-M 461312 46-1312 Lp Retainer Ring for AM2-VE75-80M Air Compressor by Mi-T-M 461312
$8.99
14
25-0663 O-Ring 15 X 2.5 Mm for MiTM Air Compressors by MiTM 250663 25-0663 O-Ring 15 X 2.5 Mm for MiTM Air Compressors by MiTM 250663
$4.43
15
46-1313 Oil Seal 24Mm X 15Mm X 6Mm for AM2-VE75-80M Air Compressor by Mi-T-M 461313 46-1313 Oil Seal 24Mm X 15Mm X 6Mm for AM2-VE75-80M Air Compressor by Mi-T-M 461313
$14.70
17
48-0096 Bearing-Needle 52Mmx43Mmx20Mm for MiTM Air Compressors by MiTM 480096 48-0096 Bearing-Needle 52Mmx43Mmx20Mm for MiTM Air Compressors by MiTM 480096
$40.47
18
38-0070 FLANGE- PUMP - (INCLUDES 19-21) BY MITM 38-0070 FLANGE- PUMP - (INCLUDES 19-21) BY MITM
$41.18
19
25-0603 O-Ring 50.47 X 2.62Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250603 25-0603 O-Ring 50.47 X 2.62Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250603
$2.99
21
26-0385 OIL SEAL BY MITM 26-0385 OIL SEAL BY MITM
$5.13
22
27-8431 Bolt for MiTM Air Compressors by MiTM 278431 27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
23
46-1504 Piston Ceramic Coated for MiTM Air Compressors by MiTM 461504 46-1504 Piston Ceramic Coated for MiTM Air Compressors by MiTM 461504
$29.94
25
46-1505 Piston- Wrist - Pin for MiTM Air Compressors by MiTM 461505 46-1505 Piston- Wrist - Pin for MiTM Air Compressors by MiTM 461505
$11.03
26
25-0604 O-Ring 130Mm X 2.65Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250604 25-0604 O-Ring 130Mm X 2.65Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250604
$5.99
27
46-1317 1506 Backplate W/Sight Glass for AM2-VE75-80M Air Compressor by Mi-T-M 461317 46-1317 1506 Backplate W/Sight Glass for AM2-VE75-80M Air Compressor by Mi-T-M 461317
$32.57
28
26-0322 Gasket 17.5Mm X 12Mm X 2Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260322 26-0322 Gasket 17.5Mm X 12Mm X 2Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260322
$2.99
29
39-0232 Drain Plug M13-1.3P X 10Mm for AM2-VE75-80M Air Compressor by Mi-T-M 390232 39-0232 Drain Plug M13-1.3P X 10Mm for AM2-VE75-80M Air Compressor by Mi-T-M 390232
$5.99
30
27-8401 Bolt for MiTM Air Compressors by MiTM 278401 27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
31
70-0503 Kit Dipstick Complete for AM2-VE75-80M Air Compressor by Mi-T-M 700503 70-0503 Kit Dipstick Complete for AM2-VE75-80M Air Compressor by Mi-T-M 700503
$7.28
32
27-8886 Screw for MiTM Air Compressors by MiTM 278886 27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
34
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063 48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
35
46-1506 Snap Ring for MiTM Pressure Washers by MiTM 461506 46-1506 Snap Ring for MiTM Pressure Washers by MiTM 461506
$2.99
36
25-0603 O-Ring 50.47 X 2.62Mm for AO1-HE15-04M Air Compressor by Mi-T-M 250603 25-0603 O-Ring 50.47 X 2.62Mm for AO1-HE15-04M Air Compressor by Mi-T-M 250603
$2.99
37
46-1507 Crankshaft Cover for MiTM Pressure Washers by MiTM 461507 46-1507 Crankshaft Cover for MiTM Pressure Washers by MiTM 461507
$18.60
-
70-0501 Kit High Pressure Seal Kit for AM2-VE75-80M Air Compressor by Mi-T-M 700501 70-0501 Kit High Pressure Seal Kit for AM2-VE75-80M Air Compressor by Mi-T-M 700501
$53.04
-
70-0502 Kit Valves W/O-Rings for AO1-HE15-04M Air Compressor by Mi-T-M 700502 70-0502 Kit Valves W/O-Rings for AO1-HE15-04M Air Compressor by Mi-T-M 700502
$36.36
