HSE-1002, HSE-1502, DH-1002, DH-1502, DH-2003 (sn:0-15143412) Motor/Pump Assembly Parts by Mi-T-M

HSE-1002, HSE-1502, DH-1002, DH-1502, DH-2003 (sn:0-15143412) Motor/Pump Assembly Parts by Mi-T-M

  • HSE-1002, HSE-1502, DH-1002, DH-1502, DH-2003 (sn:0-15143412) Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
850-0213 Motor Assembly 1.5Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500213
$538.14
1
850-0215 MOTOR ASSEMBLY - 2.0HP (INC 2-12) (1502) BY MITM
$629.51
1
850-0216 Motor Assembly 4.0Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500216
$996.36
2
32-0440 12/3 Cord *(Two Feet Required) for MiTM Pressure Washers 320440
$26.91
4
32-0441 Boot, Circuit Breaker for AC1-PE15-20M1 Air Compressor by Mi-T-M 320441
$14.41
5
27-8389 Hex Screw for MiTM Pressure Washers 278389
$5.93
6
52-0041A01 MOTOR CAPACITOR BOX BY MITM
$42.60
7
32-0439 Circuit Breaker for AC1-PH55-20M Air Compressor by Mi-T-M 320439
$27.36
7
32-0438 Circuit Breaker for AC1-PE15-20M1 Air Compressor by Mi-T-M 320438
$19.38
8
32-0450 Capacitor/Run for AC1-PH55-20M Air Compressor by Mi-T-M 320450
$171.27
8
32-0413 Capacitor-Run 2-0083 & 2-0084 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320413
$156.24
9
32-0449 Capacitor/Start for AC1-PH55-20M Air Compressor by Mi-T-M 320449
$171.27
9
32-0412 Capacitor-Start-2-0084 for AM2-PE75-30M Air Compressor by Mi-T-M 320412
$210.26
9
32-0411 Capacitor-Start-2-0083 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320411
$138.76
10
52-0042 Motor Box Strap for MiTM Pressure Washers 520042
$5.93
11
25-0338 O-Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250338
$5.99
15
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230014
$9.18
16
3-0168 Pump Direct Drive for AC1-PE15-20M1 Air Compressor by Mi-T-M 30168
$810.96
16
3-0071 Pump 2.11 Gpm At 1500 Psi for AC1-PE15-20M1 Air Compressor by Mi-T-M 30071
$768.07
17
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
19
22-0213 Valve-Thermal Relief Banjo for AC1-PE15-20M1 Air Compressor by Mi-T-M 220213
$70.34
20
8-0470 Unloader for AC1-PE15-20M1 Air Compressor by Mi-T-M 80470
$179.80
21
23-0139 Barb 3/8X1/4 90Deg Barb-Brass for AC2-PH11-20M Air Compressor by Mi-T-M 230139
$37.95
23
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230307
$21.24
24
15-0090 HIGH PRESSURE HOSE BY MITM
$29.84
27
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
3
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
13
43-0072 Key 3/16" X 1-3/8" for AC1-HE02-05M1 Air Compressor by Mi-T-M 430072
$9.98
14
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
18
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
22
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
25
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
26
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

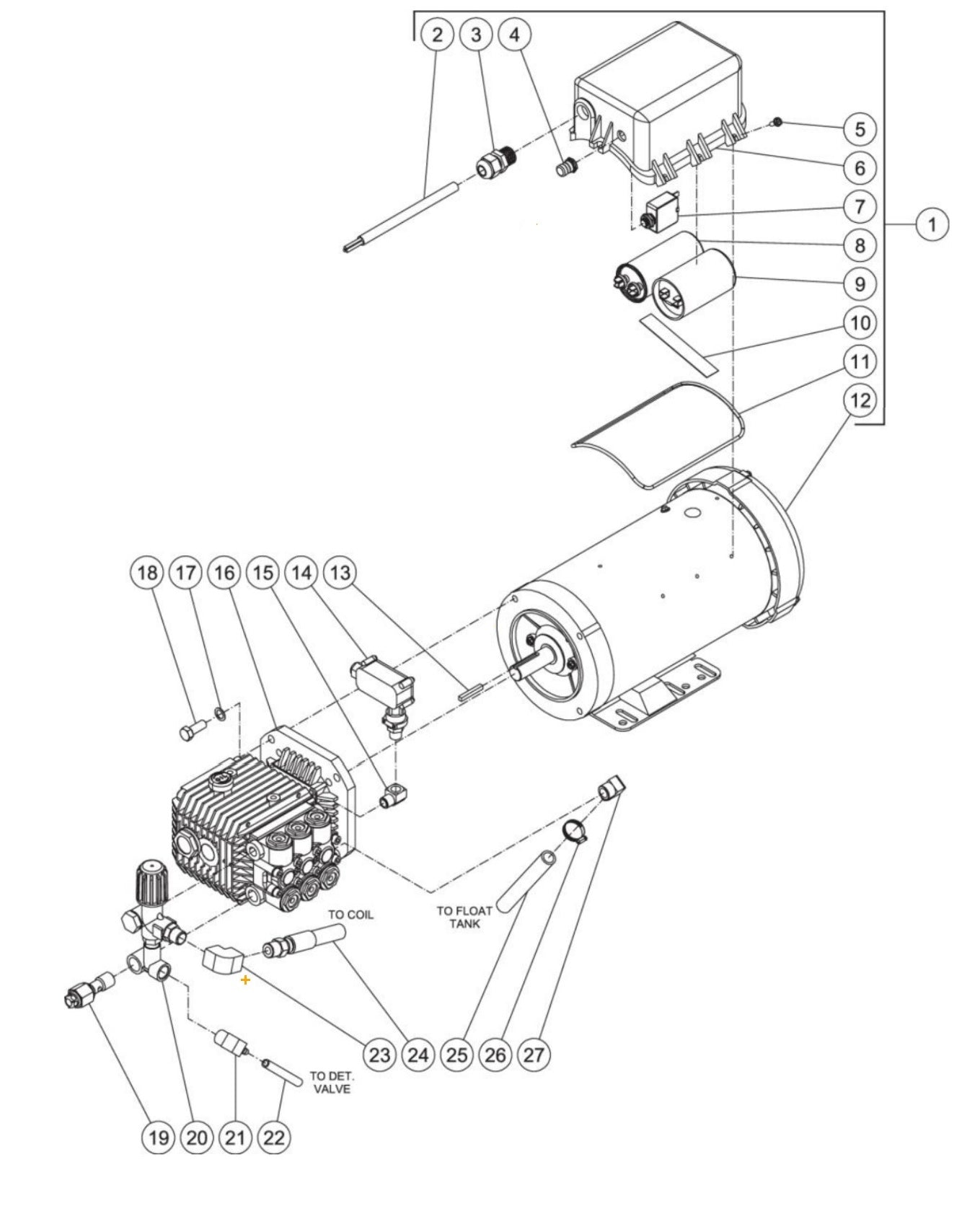

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
