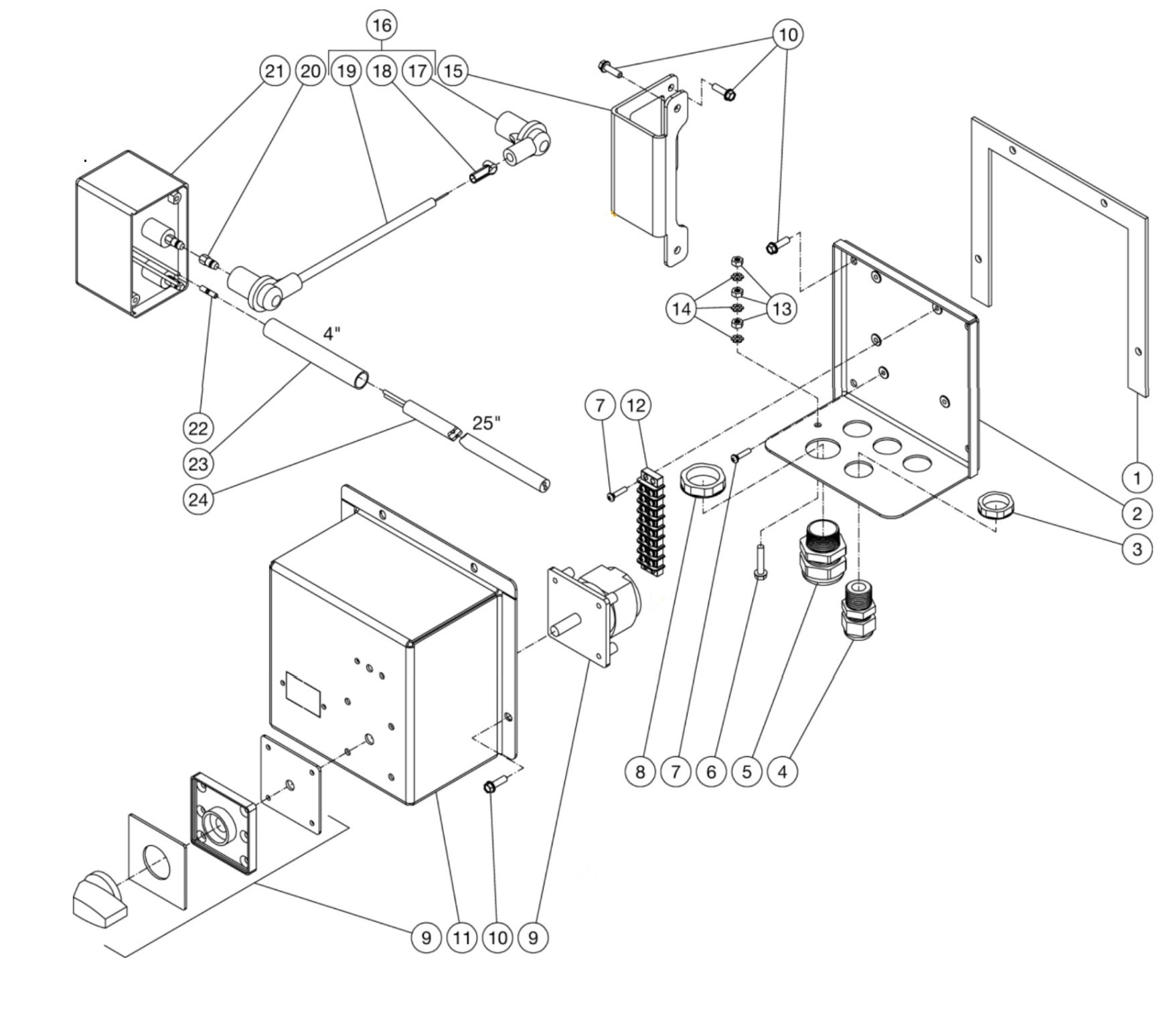

HSE-1002, HSE-1502, HSE-1400, DH-1002, DH-1502 Electric Box Assembly Parts by Mi-T-M

HSE-1002, HSE-1502, HSE-1400, DH-1002, DH-1502 Electric Box Assembly Parts by Mi-T-M

  • HSE-1002, HSE-1502, HSE-1400, DH-1002, DH-1502 Electric Box Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
26-0384 GASKET BY MITM
$5.00
2
20-1308A18 ELECTRIC BOX BACK BY MITM
$28.97
5
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
6
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
7
27-8881 SCREW (HX-0106 OPTION) BY MITM
$0.68
8
32-0292 Locknut Elect 3/4"-Diecast for AC1-PH65-08M Air Compressor by Mi-T-M 320292
$2.85
9
32-1137 CAM SWITCH - OFF/ON/BURNER (HX-0232, HX-0239, HX-0245, HX-0246) BY MITM
$190.35
10
27-9526 Bolt BY MITM
$1.35
11
20-1309A18 ELECTRIC BOX COVER BY MITM
$42.74
13
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
14
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
15
20-1307A18 IGNITER BRACKET BY MITM
$11.75
16
850-0427 SPARK PLUG WIRE ASSY BY MITM
$34.10
17
32-0999 Boot-Electrode for AC1-PE15-20M1 Air Compressor by Mi-T-M 320999
$14.27
18
44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
19
32-0988 ELECTRODE WIRE BY MITM
$16.55
20
32-1163 TERMINAL BY MITM
$2.97
21
44-0166 IGNITOR BY MITM
$97.20
22
32-0402 BUTT SPLICE BY MITM
Call for Price call for price call for price
23
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
24
32-0075 Cord 16/2 So Per Ft for AC2-PH11-20M Air Compressor by Mi-T-M 320075
$7.28
3
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
4
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
9
32-0679 Cam Switch for AC1-HE02-05M1 Air Compressor by Mi-T-M 320679
$122.69
9
32-0434 Switch/Cam for AC1-HE02-05M by Mi-T-M 320434
$76.34
12
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
