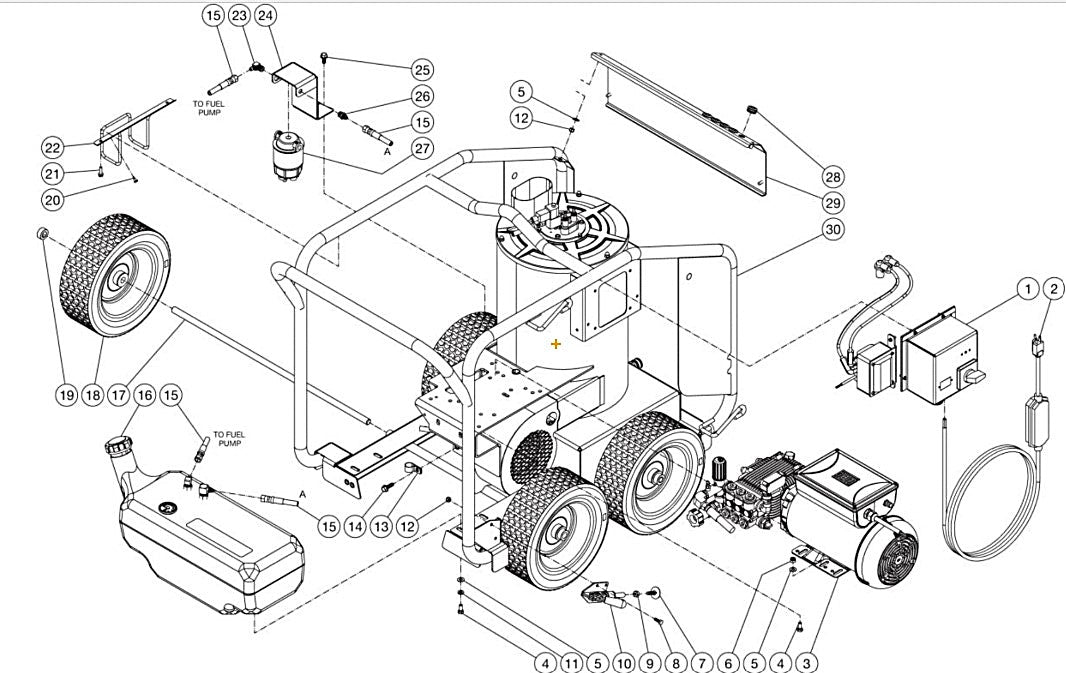

HSE-1002, HSE-1502, HSE-2003 Frame Assembly Parts by Mi-T-M

HSE-1002, HSE-1502, HSE-2003 Frame Assembly Parts by Mi-T-M

  • HSE-1002, HSE-1502, HSE-2003 Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
32-0268 Cord 14/3 W/Gfci 15 Amp for AC1-HE02-05M by Mi-T-M 320268
$126.20
2
32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215
$134.04
2
32-0333 Gfci W/37'Cord-20Amp-240Volt for AC1-PH55-20M Air Compressor by Mi-T-M 320333
$165.07
4
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
5
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
6
30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
7
27-9550 BOLT BY MITM
$2.55
8
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
9
30-0004 Nut BY MITM
$0.68
10
33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400
$66.15
11
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
12
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
13
42-0052 HOSE CLIP BY MITM
$1.35
14
27-1201 BOLT BY MITM
$0.35
15
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
17
20-1315 AXLE BY MITM
$15.60
18
14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150
Call for Price call for price call for price
19
33-0351 Lock Collar/Shaft 5/8 Id Steel for AC1-HE02-05M by Mi-T-M 330351
$6.48
20
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
22
13-0219A18 CORD HANGER BY MITM
$20.06
23
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
24
20-1300A18 BOLT BY MITM
$26.24
25
27-1202 BOLT BY MITM
$0.35
26
23-0247 Union 1/4Mnpt X 1/4 Flare for AC1-HE02-05M by Mi-T-M 230247
$5.99
27
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
28
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
29
20-1303A18 FRONT PANEL BY MITM
$42.74
21
Call for Price call for price call for price
