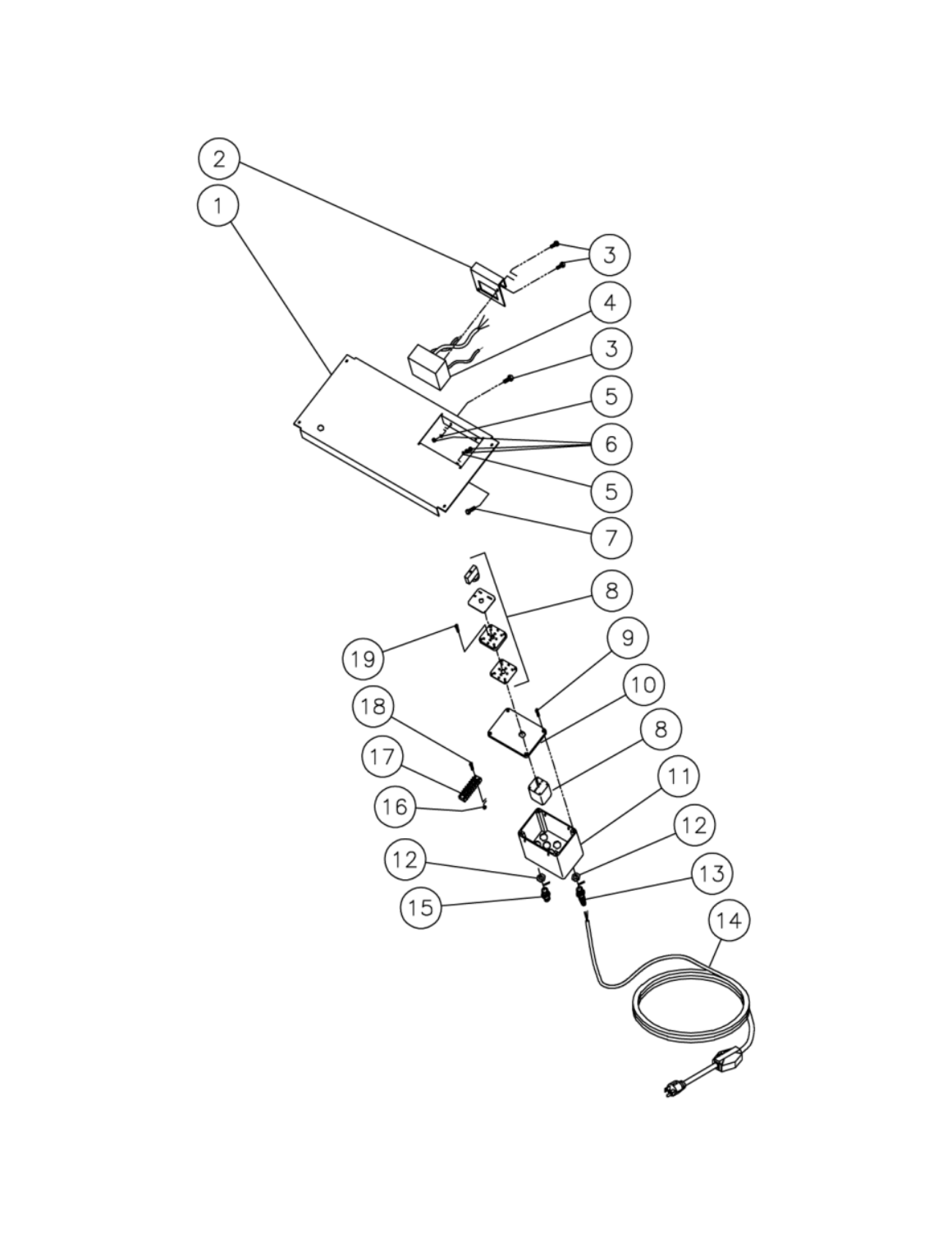

HSE-1002-SM10 Control Panel Assembly Parts by Mi-T-M

HSE-1002-SM10 Control Panel Assembly Parts by Mi-T-M

  • HSE-1002-SM10 Control Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0405A01 CONTROL PANEL BY MITM
$39.15
2
20-0414A01 IGNITOR BRACKET BY MITM
$7.91
3
27-9526 Bolt BY MITM
$1.35
4
44-0104 IGNITOR BY MITM
$177.47
6
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
7
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
8
32-0434 Switch/Cam for AC1-HE02-05M by Mi-T-M 320434
$76.34
8
32-0679 Cam Switch for AC1-HE02-05M1 Air Compressor by Mi-T-M 320679
$122.69
9
70-0197 Kit Hardware/Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 700197
$5.99
10
32-0433A01 ELECTRIC BOX LID BY MITM
$24.38
11
32-0432A01 ELECTRIC BOX BY MITM
$45.90
12
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
13
32-0407 Cord Strain Relief W/ Pigtail for AC1-HE02-05M1 Air Compressor by Mi-T-M 320407
$9.72
14
32-0268 Cord 14/3 W/Gfci 15 Amp for AC1-HE02-05M by Mi-T-M 320268
$126.20
14
32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215
$134.04
15
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
16
30-0137 NUT BY MITM
$0.68
17
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
18
27-8861 SCREW BY MITM
$2.55
19
27-8897 Bolt BY MITM
$0.68
5
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
