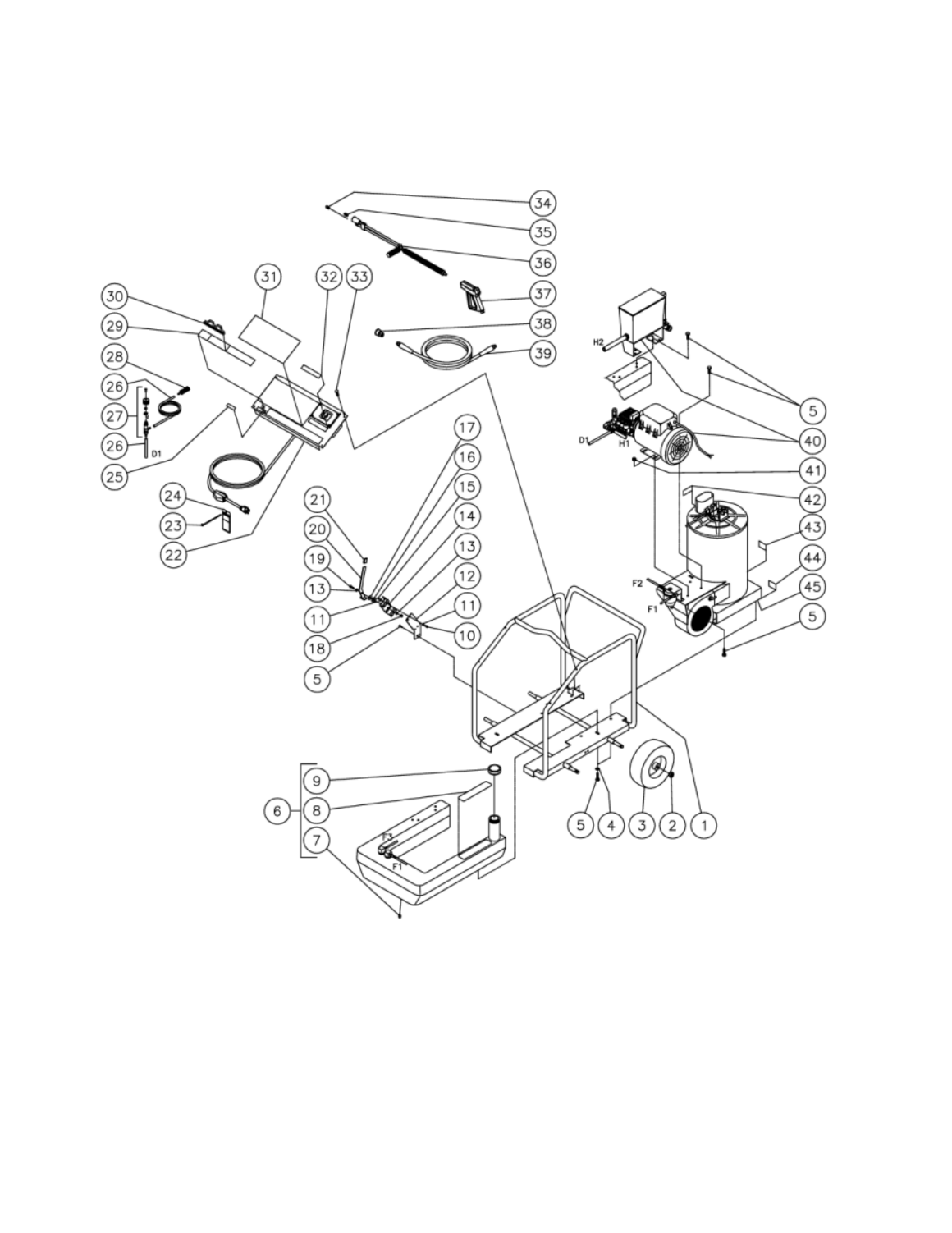

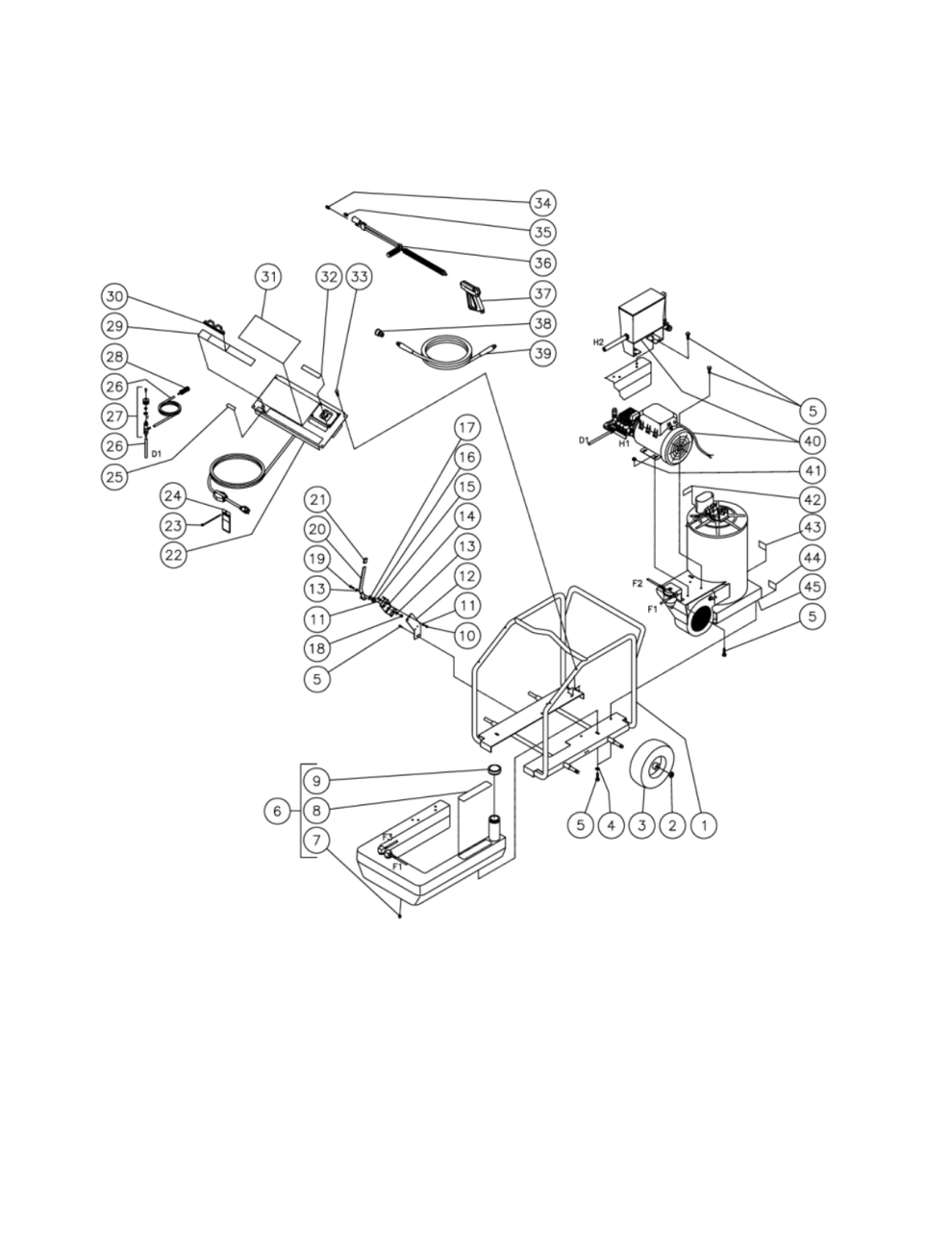

HSE-1002-SM10 (sn:0-99999999) Frame Assembly Parts by Mi-T-M

HSE-1002-SM10 (sn:0-99999999) Frame Assembly Parts by Mi-T-M

  • HSE-1002-SM10 (sn:0-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0128A01 FRAME ASSEMBLY BY MITM
Call for Price call for price call for price
2
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
3
14-0017 Isolator 2" Od X 1.84 for AM2-PR09-30M Air Compressor by Mi-T-M 140017
$11.64
4
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
5
27-9524 Bolt for MiTM Pressure Washers 279524
$5.93
6
850-0214 Fuel Tank Assembly for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500214
$289.28
7
23-0296 Plug for AC1-PE02-20M Air Compressor by Mi-T-M 230296
$10.28
9
12-0033 Vented Fuel Cap BY MITM
$14.40
10
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
11
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
12
20-0580A01 BRAKE PLATE BY MITM
$7.50
13
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
14
20-0546A01 BRACKET BY MITM
Call for Price call for price call for price
15
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
16
33-0366 Grommet 5/161D X 3/4Gd-1/8Gw for AC1-HE02-05M1 Air Compressor by Mi-T-M 330366
$1.99
17
28-0057 WASHER BY MITM
$0.68
18
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
19
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
20
20-0552A01 BRAKE HANDLE ASSEMBLY BY MITM
$10.74
21
7-0170 Handle Grip BY MITM
$0.68
23
33-0022 CABLE TIE BY MITM
$1.47
24
34-0417 Tag - Risk Of Electrocution (Cw-2004-1Me1) for MiTM Pressure Washers 340417
$48.42
26
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
27
22-0226 Valve/Detergent for AC1-HE02-05M by Mi-T-M 220226
$63.26
28
19-0056 Strainer-Detergent W/Ck Valve for AC1-HE02-05M by Mi-T-M 190056
$19.80
29
34-0502 Decal- Mi-T-M Stripe for MiTM Air Compressors by MiTM 340502
Call for Price call for price call for price
30
62-0087 Plastic Mi-T-M Small Logo/Gold for AC1-PE15-08M Air Compressor by Mi-T-M 620087
$10.72
32
34-0302 DECAL- DIE CUT 1002 BY MITM
Call for Price call for price call for price
34
18-0110 Nozzle 4040 1/4 M for AC1-HE15-05M Air Compressor by Mi-T-M 180110
$12.68
35
18-0054 Nozzle 1504 1/4 Meg for AC1-PE15-20M1 Air Compressor by Mi-T-M 180054
$13.23
36
16-0416 Dual Lance 36.00" for AC1-PE15-08M Air Compressor by Mi-T-M 160416
$94.46
37
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
38
17-0035 Screw Connect M22 X 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 170035
$25.87
39
15-0146 Hose 3/8X50' 3000Psi R1 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150146
$151.47
41
30-3023 Locknut BY MITM
$0.68
-
34-9012 SAFETY DECAL KIT (INCLUDES 8, 25, 31, 41-42) BY MITM
Call for Price call for price call for price
33
Call for Price call for price call for price
