HSE-1002-SM10 (sn:0-99999999) Motor/Pump Assembly Parts by Mi-T-M

HSE-1002-SM10 (sn:0-99999999) Motor/Pump Assembly Parts by Mi-T-M

  • HSE-1002-SM10 (sn:0-99999999) Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0415A01 FLOAT TANK BRACKET BY MITM
$22.28
2
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
3
28-0001 Washer for MiTM Pressure Washers 280001
$5.93
4
20-0422A01 Bracket- Black BY MITM
$14.93
5
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
8
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
10
23-0140 Barb 3/8Mp X 1/2 Lock Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 230140
$8.44
11
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230307
$21.24
12
22-0129 Valve-Float Tank(12-0038)W/Pl for AC1-PE02-08M Air Compressor by Mi-T-M 220129
$62.15
13
62-0103 FLOAT TANK LID BY MITM
Call for Price call for price call for price
14
12-0055 FLOAT TANK ASSEMBLY BY MITM
$41.93
17
23-0318 Hose Barb for AC1-PE15-20M1 Air Compressor by Mi-T-M 230318
$38.03
18
850-0213 Motor Assembly 1.5Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500213
$538.14
20
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
22
3-0071 Pump 2.11 Gpm At 1500 Psi for AC1-PE15-20M1 Air Compressor by Mi-T-M 30071
$768.07
23
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
25
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
26
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
27
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230054
$11.28
28
23-0238 Plug-Square Head 1/4 Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230238
$10.73
29
15-0204 HOSE ASSEMBLY- HSE-3 UNITS BY MITM
$22.28
31
850-0267 Unloader Assembly BY MITM
$121.98
32
24-0118 Elbow 3/8M X 1/4M Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240118
$26.99
33
23-0052 Barb 3/8Mp X1/4 Hose Std-Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 230052
$6.83
35
23-0382 STREET TEE BY MITM
$9.86
36
23-0139 Barb 3/8X1/4 90Deg Barb-Brass for AC2-PH11-20M Air Compressor by Mi-T-M 230139
$37.95
38
23-0117 Tee 3/8" Branch Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230117
Call for Price call for price call for price
7
27-9524 Bolt for MiTM Pressure Washers 279524
$5.93
9
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
15
23-0138 Locknut- 3/8"Jam, Brass for AC1-HE02-05M by Mi-T-M 230138
$11.95
16
25-0427 O-Ring 1/8 X .734 for AC1-HE02-05M by Mi-T-M 250427
$1.99
19
43-0072 Key 3/16" X 1-3/8" for AC1-HE02-05M1 Air Compressor by Mi-T-M 430072
$9.98
21
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
24
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
30
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
34
22-0114 Valve-Thermal Relief 3/8M 145F for AC1-HE02-05M1 Air Compressor by Mi-T-M 220114
$20.68
37
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
39
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
40
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
6
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

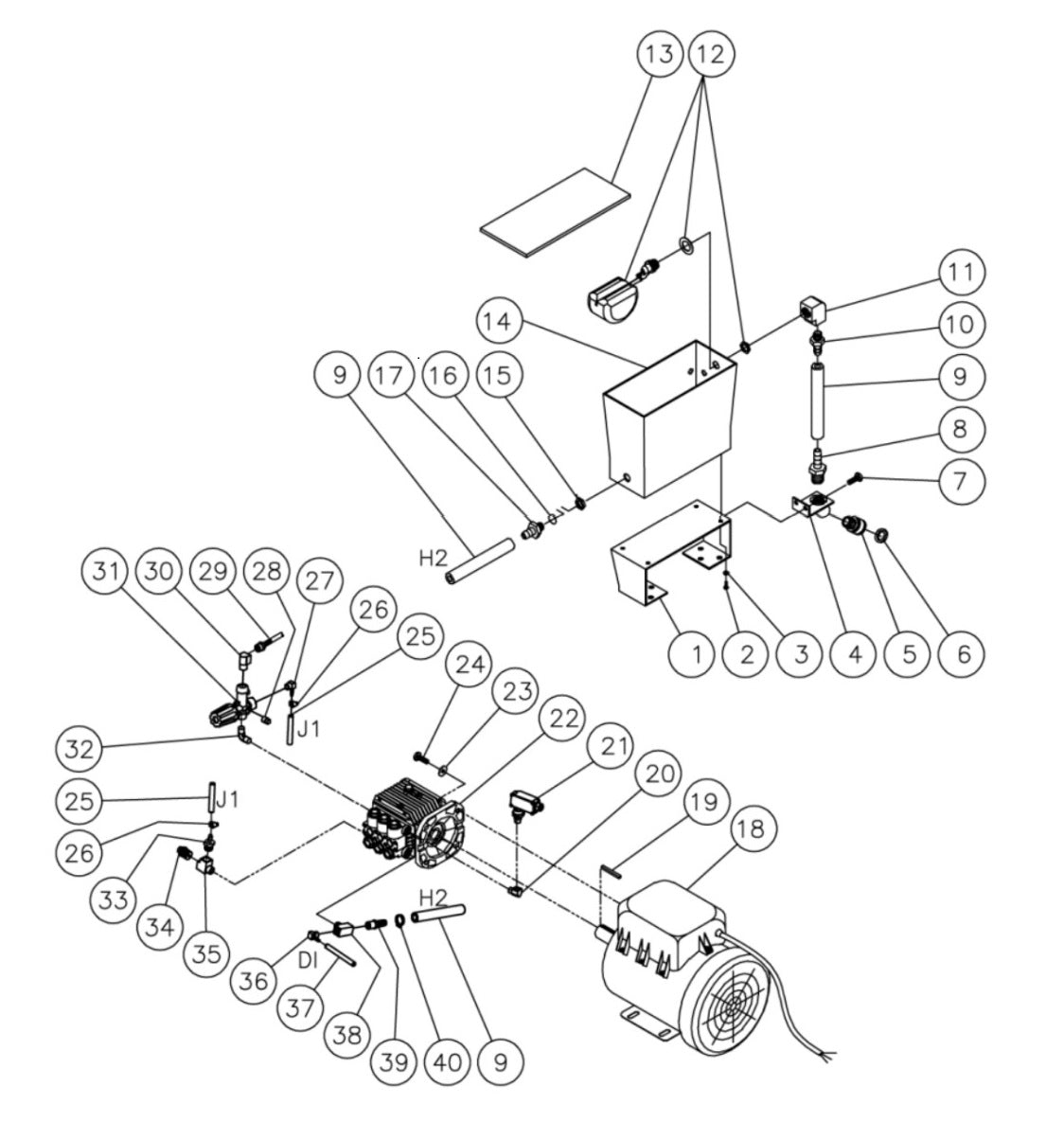

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
