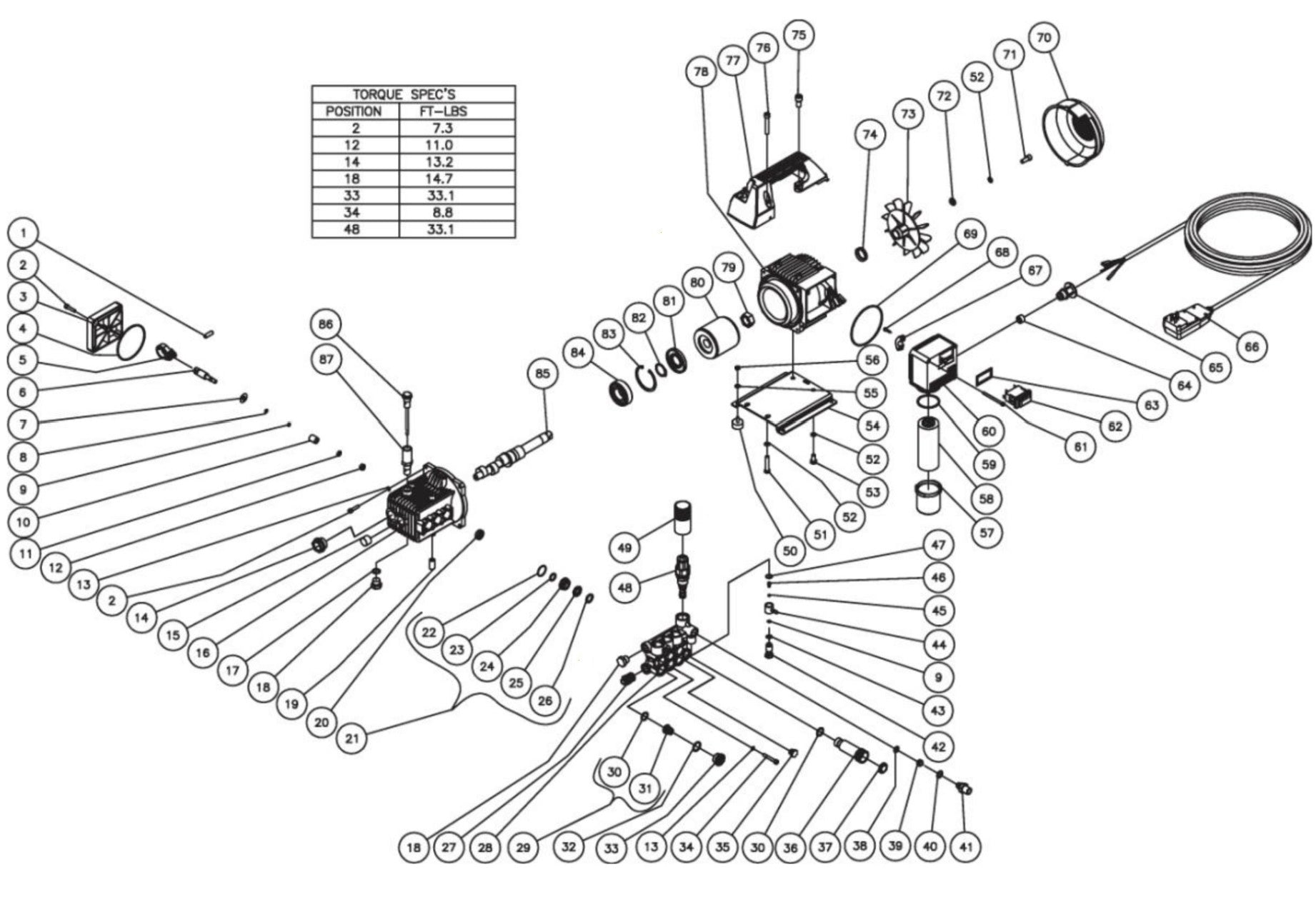

HSE-1250-0M11 Motor/Pump Assembly Parts by Mi-T-M

HSE-1250-0M11 Motor/Pump Assembly Parts by Mi-T-M

  • HSE-1250-0M11 Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
2
27-8869 Screw BY MITM 27-8869 Screw BY MITM
$1.35
3
46-1110 Crankcase Cover BY MITM 46-1110 Crankcase Cover BY MITM
$35.78
10
46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148 46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148
$107.42
13
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
14
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
16
46-1112 Crankcase BY MITM 46-1112 Crankcase BY MITM
$786.11
19
33-0420 Baseplate Spacer BY MITM 33-0420 Baseplate Spacer BY MITM
$16.20
22
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141 25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
23
25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128 25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128
$3.99
24
46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158 46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158
$28.58
25
46-0157 Packing BY MITM 46-0157 Packing BY MITM
$13.98
26
46-0156 Head Ring for MiTM Pressure Washers 460156 46-0156 Head Ring for MiTM Pressure Washers 460156
$76.83
27
22-0370 Valve-Thermal Relief BY MITM 22-0370 Valve-Thermal Relief BY MITM
$18.77
28
46-0279 Manifold BY MITM 46-0279 Manifold BY MITM
$430.95
30
25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053 25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053
$7.49
31
22-0056 Valve Assembly (4 - 8) for MiTM Pressure Washers 220056 22-0056 Valve Assembly (4 - 8) for MiTM Pressure Washers 220056
$262.88
34
27-8406 Bolt for MiTM Pressure Washers 278406 27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
36
23-0433 Inlet Fitting BY MITM 23-0433 Inlet Fitting BY MITM
$103.55
38
25-0050 O-Ring 9.92 X 2.60Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250050 25-0050 O-Ring 9.92 X 2.60Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250050
$10.16
39
62-0170 Nozzle BY MITM 62-0170 Nozzle BY MITM
Call for Price call for price call for price
40
25-0051 O-Ring 9/16 X 3/4 for AP1-PI65-08M Air Compressor by Mi-T-M 250051 25-0051 O-Ring 9/16 X 3/4 for AP1-PI65-08M Air Compressor by Mi-T-M 250051
$2.99
41
8-0130 Nipple for AC1-HE15-05M Air Compressor by Mi-T-M 80130 8-0130 Nipple for AC1-HE15-05M Air Compressor by Mi-T-M 80130
$47.30
42
8-0174 Valve Seat Injector for AP1-PI65-08M Air Compressor by Mi-T-M 80174 8-0174 Valve Seat Injector for AP1-PI65-08M Air Compressor by Mi-T-M 80174
$64.52
43
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014 25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
44
46-0789 Pump Hose Barb for AP1-PI65-08M Air Compressor by Mi-T-M 460789 46-0789 Pump Hose Barb for AP1-PI65-08M Air Compressor by Mi-T-M 460789
$9.42
45
50-0012 Ball .218 Dia Ss for AP1-PI65-08M Air Compressor by Mi-T-M 500012 50-0012 Ball .218 Dia Ss for AP1-PI65-08M Air Compressor by Mi-T-M 500012
$8.99
46
49-0020 Spring 4.3/7.3 X 11 .01Ss for AP1-PI65-08M Air Compressor by Mi-T-M 490020 49-0020 Spring 4.3/7.3 X 11 .01Ss for AP1-PI65-08M Air Compressor by Mi-T-M 490020
$5.99
47
25-0120 O-Ring 3/8 X 1/2 for AC1-HE15-05M Air Compressor by Mi-T-M 250120 25-0120 O-Ring 3/8 X 1/2 for AC1-HE15-05M Air Compressor by Mi-T-M 250120
$1.99
48
8-0545 Unloader BY MITM 8-0545 Unloader BY MITM
$256.50
49
7-0071 Knob BY MITM 7-0071 Knob BY MITM
$20.93
50
14-0094 Rubber Isolator Foot BY MITM 14-0094 Rubber Isolator Foot BY MITM
$14.12
51
27-8802 BOLT BY MITM 27-8802 BOLT BY MITM
Call for Price call for price call for price
52
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154 29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
53
27-8042 Bolt-With Pump for MiTM Pressure Washers 278042 27-8042 Bolt-With Pump for MiTM Pressure Washers 278042
$7.65
54
5-0193 Base Plate BY MITM 5-0193 Base Plate BY MITM
$64.80
55
28-0200 WASHER BY MITM 28-0200 WASHER BY MITM
$2.03
56
30-3024 Nut for MiTM Pressure Washers 303024 30-3024 Nut for MiTM Pressure Washers 303024
$7.65
57
62-0165 Capacitor Cover BY MITM 62-0165 Capacitor Cover BY MITM
$22.28
58
32-0185 Capacitor BY MITM 32-0185 Capacitor BY MITM
$212.57
59
25-0140 O-ring BY MITM 25-0140 O-ring BY MITM
$3.51
60
62-0166 Electrical Box BY MITM 62-0166 Electrical Box BY MITM
$89.78
61
27-8395 Screw BY MITM 27-8395 Screw BY MITM
$4.05
62
32-0797 Power Switch BY MITM 32-0797 Power Switch BY MITM
$206.82
63
26-0283 Power Switch Gasket BY MITM 26-0283 Power Switch Gasket BY MITM
$10.80
64
26-0282 Gasket BY MITM 26-0282 Gasket BY MITM
$3.38
65
32-0795 Power Cord Strain Relief BY MITM 32-0795 Power Cord Strain Relief BY MITM
$10.13
66
32-0796 Cord BY MITM 32-0796 Cord BY MITM
$34.70
67
62-0167 Wire Clamp BY MITM 62-0167 Wire Clamp BY MITM
$4.32
68
27-5029 Screw BY MITM 27-5029 Screw BY MITM
Call for Price call for price call for price
69
25-0554 O-ring BY MITM 25-0554 O-ring BY MITM
Call for Price call for price call for price
70
62-0168 Fan Cover BY MITM 62-0168 Fan Cover BY MITM
$41.45
71
27-8432 Screw for MiTM Air Compressors by MiTM 278432 27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
72
9-0079 Fan Bushing BY MITM 9-0079 Fan Bushing BY MITM
$12.83
73
52-0060 Motor Fan BY MITM 52-0060 Motor Fan BY MITM
$34.64
74
26-0281 Ring Seal Fan BY MITM 26-0281 Ring Seal Fan BY MITM
$16.68
75
27-8471 Bolt for MiTM Pressure Washers 278471 27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
76
27-9569 BOLT BY MITM 27-9569 BOLT BY MITM
$3.99
81
26-0280 Seal BY MITM 26-0280 Seal BY MITM
$20.33
82
46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245 46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245
$4.85
83
46-0106 Ring Snap BY MITM 46-0106 Ring Snap BY MITM
$8.78
86
46-0155 Oil Dipstick BY MITM 46-0155 Oil Dipstick BY MITM
$20.12
87
46-0154 Spacer BY MITM 46-0154 Spacer BY MITM
$15.60
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009 70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0378 V-Packing Kit (Inc. 3 each of 40, 41, 43, 44) BY MITM 70-0378 V-Packing Kit (Inc. 3 each of 40, 41, 43, 44) BY MITM
$57.32
-
70-0379 V-Packing Assembly (Inc. 1 each og 40, 41, 42, 43, 44) BY MITM 70-0379 V-Packing Assembly (Inc. 1 each og 40, 41, 42, 43, 44) BY MITM
$32.40
1
43-0044 Pin Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 430044 43-0044 Pin Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 430044
$19.13
4
25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332 25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332
$12.31
5
46-0152 Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 460152 46-0152 Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 460152
$63.60
6
46-0149 Piston Guide for AC1-HE02-05M1 Air Compressor by Mi-T-M 460149 46-0149 Piston Guide for AC1-HE02-05M1 Air Compressor by Mi-T-M 460149
$101.28
7
46-0167 Washer Slinger Copper for AC1-HE02-05M1 Air Compressor by Mi-T-M 460167 46-0167 Washer Slinger Copper for AC1-HE02-05M1 Air Compressor by Mi-T-M 460167
$7.02
8
25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143 25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143
$5.99
9
25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045 25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045
$1.99
11
46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166 46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166
$5.99
12
46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168 46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168
$13.97
15
48-0019 Bearing Needle for AC1-HE02-05M1 Air Compressor by Mi-T-M 480019 48-0019 Bearing Needle for AC1-HE02-05M1 Air Compressor by Mi-T-M 480019
$76.05
17
25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052 25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052
$5.99
18
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018 39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
20
26-0111 Oil Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 260111 26-0111 Oil Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 260111
$24.10
32
*25-0012 O-Ring 20.69 X 2.62Mm for MI-T-M 3004-0ME1 CW Series by MiTM 250012 *25-0012 O-Ring 20.69 X 2.62Mm for MI-T-M 3004-0ME1 CW Series by MiTM 250012
$1.99
33
39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035 39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035
$34.46
35
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
37
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001 19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
84
48-0024 Ball Bearing for ABS Air Compressor by Mi-T-M 480024 48-0024 Ball Bearing for ABS Air Compressor by Mi-T-M 480024
$67.11
