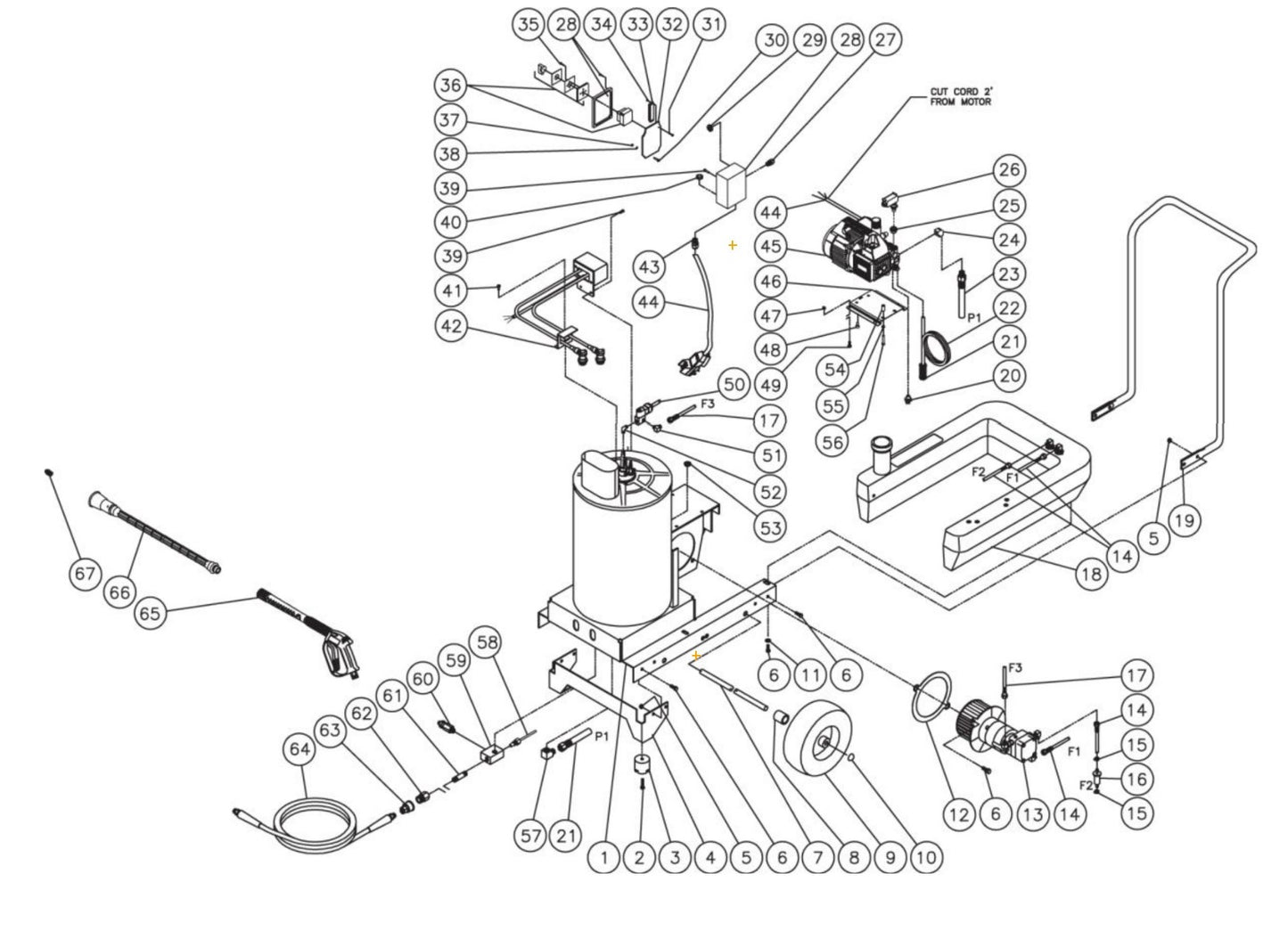

HSE-1250-0M11 (sn:15025909-15071602), (sn:15071603-99999999) Frame Assembly Parts by Mi-T-M

HSE-1250-0M11 (sn:15025909-15071602), (sn:15071603-99999999) Frame Assembly Parts by Mi-T-M

  • HSE-1250-0M11 (sn:15025909-15071602), (sn:15071603-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
850-0264 HEAT EXCHANGER/ FRAME ASSEMBLY BY MITM
$1,617.92
2
27-9525 Bolt BY MITM
$2.70
3
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
4
13-0123A01 UNDER BRACKET/FOOT BY MITM
Call for Price call for price call for price
5
30-3023 Locknut BY MITM
$0.68
7
5-010504 Axle BY MITM
Call for Price call for price call for price
8
20-0329A01 SPACER BY MITM
$4.19
9
14-0017 Isolator 2" Od X 1.84 for AM2-PR09-30M Air Compressor by Mi-T-M 140017
$11.64
10
33-0018 Cap Hub 5/8" for AC2-PH11-20M Air Compressor by Mi-T-M 330018
$11.82
11
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
12
20-0460A01 SHIM BY MITM
$6.96
15
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
17
15-0173 Fuel Hose 23.75" 3000Psi Black for AC1-PE15-08M Air Compressor by Mi-T-M 150173
$27.68
18
850-0214 Fuel Tank Assembly for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500214
$289.28
19
7-0110A01 HANDLE BY MITM
$70.61
20
22-0208 Heat Dump Valve for MiTM Pressure Washers 220208
$45.96
21
19-0050 Strainer Chemical Wo/Ck for AC1-HE15-05M Air Compressor by Mi-T-M 190050
$5.99
23
15-0174 Hose 3/8X31.25" 3000Psi R1 Blk for AC1-PE15-20M1 Air Compressor by Mi-T-M 150174
$32.65
24
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230307
$21.24
25
39-0077 VALVE PLUG BY MITM
$25.65
26
22-0119 Pressure Switch for AC1-HH04-05M Air Compressor by Mi-T-M 220119
$50.14
28
32-0893 ELECTRIC BOX BY MITM
Call for Price call for price call for price
30
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
31
27-8861 Screw for MiTM Pressure Washers 278861
$7.65
32
32-0894 MOUNTING PANEL BY MITM
Call for Price call for price call for price
34
30-0137 NUT BY MITM
$0.68
35
27-8897 Bolt BY MITM
$0.68
37
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
38
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
39
27-9526 Bolt BY MITM
$1.35
41
27-8803 BOLT BY MITM
$0.68
42
20-0417A01 ELECTRODE BRACKET BY MITM
Call for Price call for price call for price
44
32-0796 Cord BY MITM
$34.70
45
3-0237 Motor/Pump Assembly BY MITM
$786.11
47
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
48
27-8042 Bolt-With Pump for MiTM Pressure Washers 278042
$7.65
49
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
50
44-0101 Fuel Solenoid for AC1-PE15-20M1 Air Compressor by Mi-T-M 440101
$84.02
51
23-0287 Elbow 1/8M X 1/4 45Deg Flare for AC1-PE15-08M Air Compressor by Mi-T-M 230287
$9.06
52
23-0249 Elbow 1/8Mnpt X 1/8Mnpt 90Deg for AC1-PE15-08M Air Compressor by Mi-T-M 230249
$18.20
53
32-0465 Bushing/Cord for AC1-PH65-08M Air Compressor by Mi-T-M 320465
$2.85
54
33-0420 Baseplate Spacer BY MITM
$16.20
55
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
56
27-8802 BOLT BY MITM
Call for Price call for price call for price
59
24-0138 Outlet Connector for AC1-PE15-08M Air Compressor by Mi-T-M 240138
$49.50
61
24-0141 Pipe Nipple 3/8M X 3" for AC1-PE15-08M Air Compressor by Mi-T-M 240141
$11.66
62
23-0197 Screw Nipple-3/8Fpt X M22-14Mm for AC1-PE15-08M Air Compressor by Mi-T-M 230197
$14.27
63
17-0035 Screw Connect M22 X 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 170035
$25.87
64
15-0145 HIGH PRESSURE ASSEMBLY BY MITM
$124.28
66
16-0415 Lance Assy-High/Low Nozzle for AM2-PH09-08AB Air Compressor by Mi-T-M 160415
$76.49
67
18-0053 Nozzle 1503 1/4 Meg for AC1-PR06-20M Air Compressor by Mi-T-M 180053
$19.85
6
27-9524 Bolt for MiTM Pressure Washers 279524
$5.93
14
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
16
19-0110 Fuel Filter/Inline for AC1-HE02-05M by Mi-T-M 190110
$26.72
22
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
27
32-0586 Strain Relief 3/8 for AC1-HE02-05M by Mi-T-M 320586
$5.99
29
32-0587 Locknut 3/8 Electrical for AC1-HE02-05M by Mi-T-M 320587
$4.85
33
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
36
32-0434 Switch/Cam for AC1-HE02-05M by Mi-T-M 320434
$76.34
43
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
57
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
58
32-0798 Switch/Hi Limit 3/8Npt for AC1-HE02-05M1 Air Compressor by Mi-T-M 320798
$64.66
60
22-0272 Safety Relief 3/8" 3500 Psi for AC1-HE02-05M1 Air Compressor by Mi-T-M 220272
$82.46
65
16-0445 Gun 3/8Npt F Zytel Shell for AC1-HE02-05M1 Air Compressor by Mi-T-M 160445
$54.71
40
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
46
Call for Price call for price call for price
