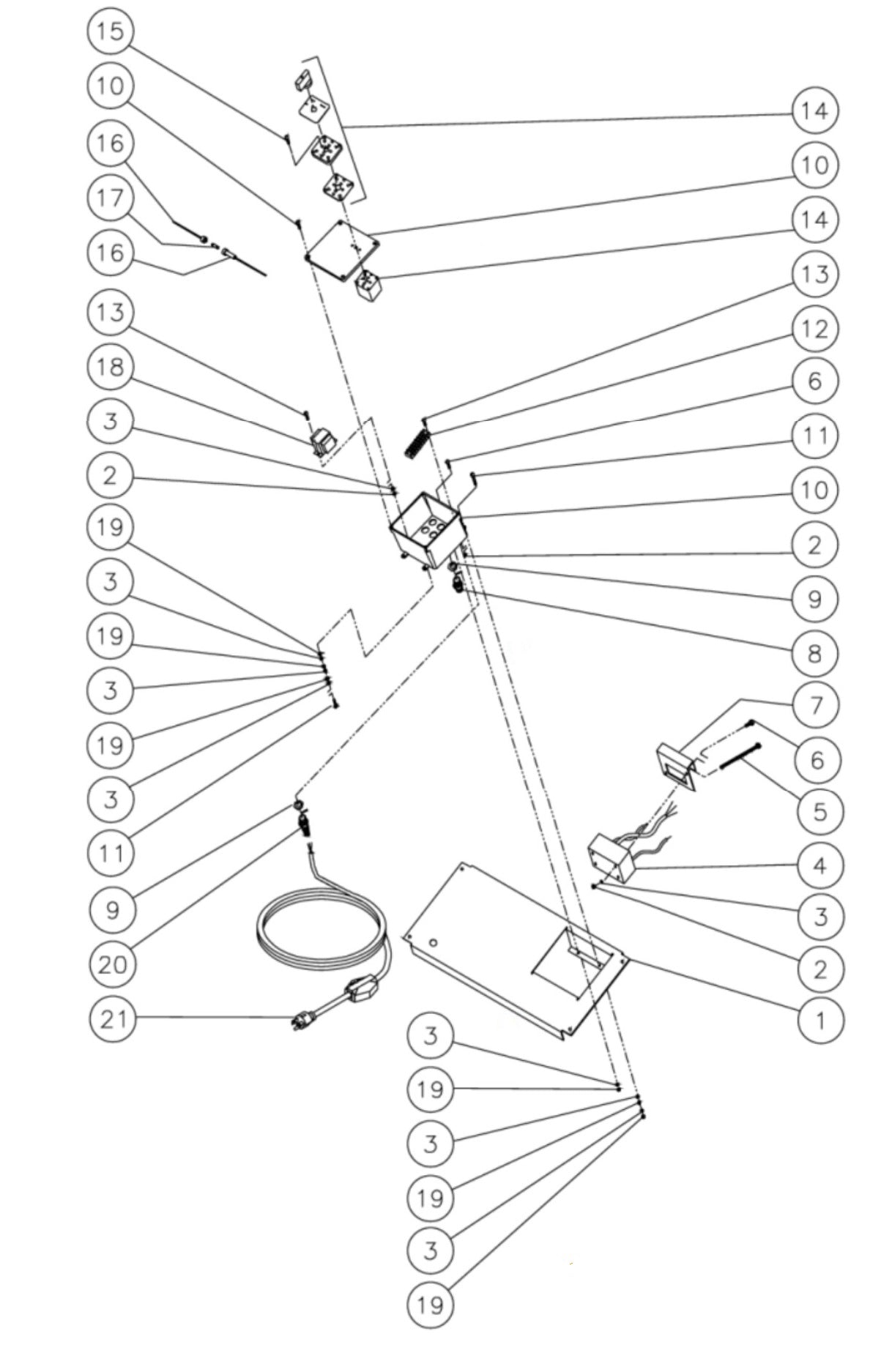

HSE-2003-0M10 Control Panel Assembly Parts by Mi-T-M

HSE-2003-0M10 Control Panel Assembly Parts by Mi-T-M

  • HSE-2003-0M10 Control Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0588A01 CONTROL PANEL BY MITM
$40.58
2
30-0137 NUT BY MITM
$0.68
3
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
4
850-0223 Ignitor W/Wires for AC1-PH55-20M Air Compressor by Mi-T-M 8500223
$170.59
5
27-8899 SCREW BY MITM
$0.68
6
27-9526 Bolt BY MITM
$1.35
7
20-0418A01 IGNITOR BRACKET BY MITM
$13.91
10
32-0703 Electric Box W/Holes 6X6X4 for AC1-PH55-20M Air Compressor by Mi-T-M 320703
$108.57
11
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
13
27-8861 Screw for MiTM Pressure Washers 278861
$7.65
14
32-0435 Switch/Cam for AC1-PH55-20M Air Compressor by Mi-T-M 320435
$90.20
15
27-8897 Bolt BY MITM
$0.68
16
32-0710 Fuse Holder for AC1-PH55-20M Air Compressor by Mi-T-M 320710
$14.36
17
32-0711 Fuse 0.15A for AC1-PH55-20M Air Compressor by Mi-T-M 320711
$17.99
18
32-0704 Transformer 240V To 120V for AC1-PH55-20M Air Compressor by Mi-T-M 320704
$84.50
19
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
20
32-0358 Bushing 1/2 Elec .5-.75 Cord for AC1-PH55-20M Air Compressor by Mi-T-M 320358
$24.10
21
32-0333 Gfci W/37'Cord-20Amp-240Volt for AC1-PH55-20M Air Compressor by Mi-T-M 320333
$165.07
8
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
9
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
12
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
