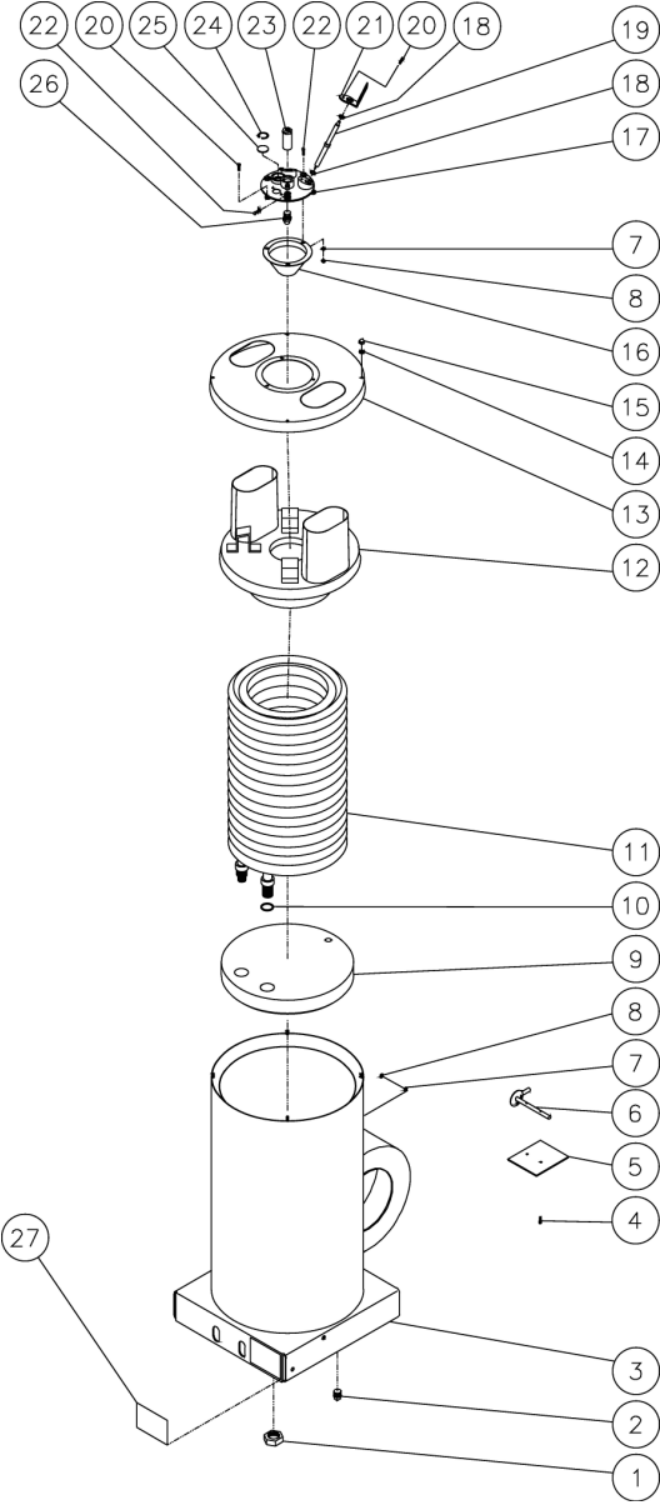

HSE-2504-0M10/0M30,HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Boiler Assembly Parts by Mi-T-M

HSE-2504-0M10/0M30,HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Boiler Assembly Parts by Mi-T-M

  • HSE-2504-0M10/0M30,HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Boiler Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0121 Nut BY MITM
$2.03
2
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HH04-05M Air Compressor by Mi-T-M 240034
$4.85
3
20-0431A01 HEAT EXCHANGER OUTER WRAP ASSEMBLY BY MITM
$402.38
4
27-8879 Bolt BY MITM
$0.68
5
20-0378A01 Air Diverter Plate-Black BY MITM
Call for Price call for price call for price
6
20-0377A01 Air Diverter Stem-Black BY MITM
$5.48
8
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
9
33-0250 Insulation/Bottom for AC1-PE15-08M Air Compressor by Mi-T-M 330250
$59.82
10
28-0521 Washer BY MITM
$2.70
11
66-0011 Coil Assembly Heat Exchanger for AC1-PE15-08M Air Compressor by Mi-T-M 660011
$666.68
12
20-0372 Inner Pan BY MITM
$323.40
13
20-0371A01 Top Pan-Black BY MITM
$72.84
14
28-1028 Lockwasher for MiTM Pressure Washers 281028
$7.65
15
30-6002 Nut BY MITM
$0.68
16
20-0373 Cone BY MITM
$5.21
17
38-0046 Electrode Plate BY MITM
Call for Price call for price call for price
18
28-0523 WASHER BY MITM
Call for Price call for price call for price
19
32-0420 Electrode Straight for AC1-PE15-08M Air Compressor by Mi-T-M 320420
$27.24
20
27-9526 Bolt BY MITM
$1.35
21
20-0446A01 Electrode Clip-Black BY MITM
Call for Price call for price call for price
22
27-8878 Screw BY MITM
$0.68
23
23-0292 Nozzle Holder for AC1-PE15-08M Air Compressor by Mi-T-M 230292
$22.52
24
33-0254 Snap Ring for AC1-PE15-08M Air Compressor by Mi-T-M 330254
$4.85
25
33-0252 Sight Glass for AC1-PE15-08M Air Compressor by Mi-T-M 330252
$9.90
26
18-0308 Nozzle Fuel Oil 1.75 60Deg B for AC1-PH65-08M Air Compressor by Mi-T-M 180308
$59.43
-
34-9012 SAFETY DECAL KIT (INCLUDES 8, 25, 31, 41-42) BY MITM
Call for Price call for price call for price
7
Call for Price call for price call for price
