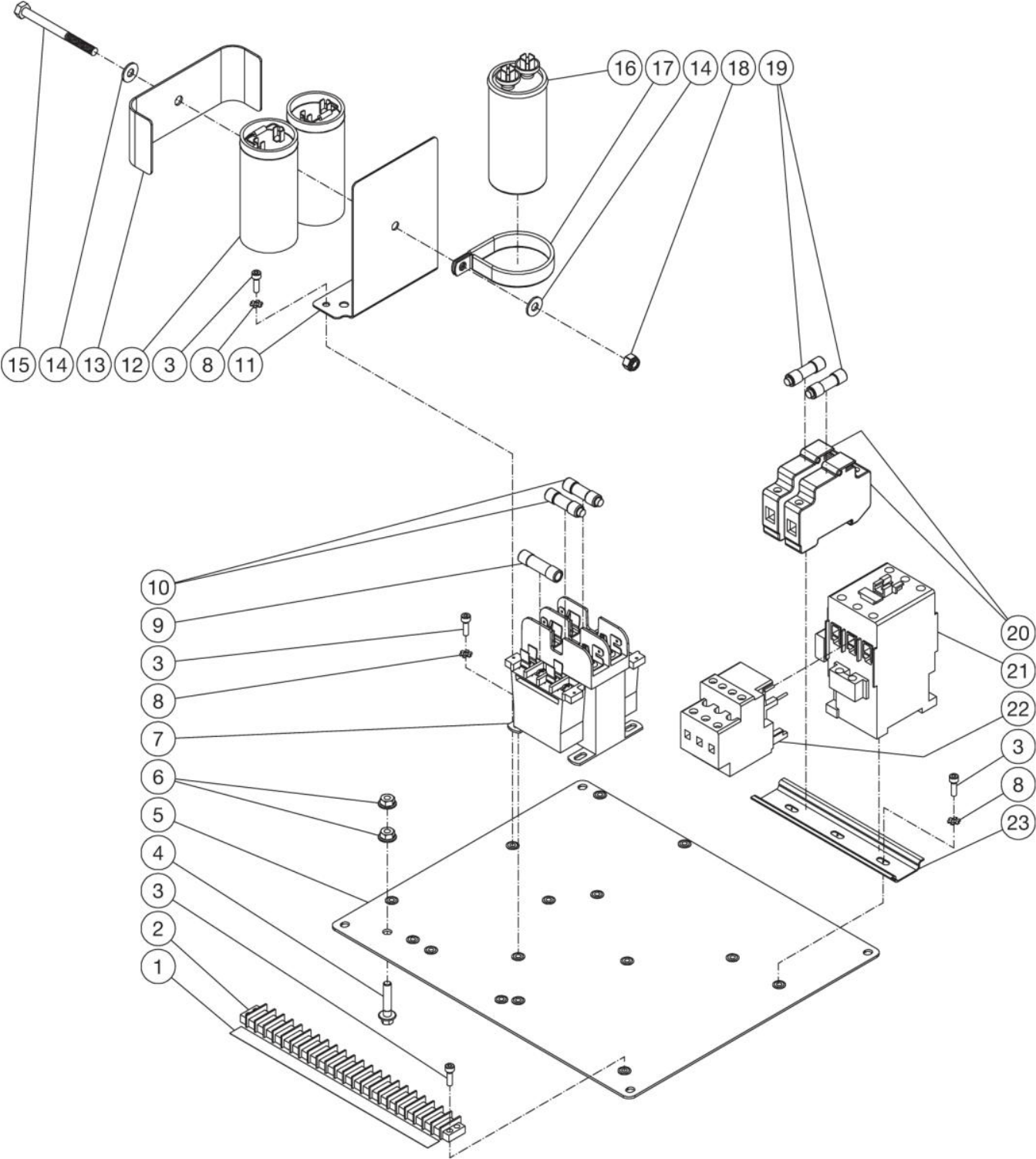

HSE-2504-0M10 (sn:15143274-99999999), HSE-3504-0M10 (sn:15145474-99999999) Electric Panel Assembly Parts by Mi-T-M

HSE-2504-0M10 (sn:15143274-99999999), HSE-3504-0M10 (sn:15145474-99999999) Electric Panel Assembly Parts by Mi-T-M

  • HSE-2504-0M10 (sn:15143274-99999999), HSE-3504-0M10 (sn:15145474-99999999) Electric Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
32-0463 Terminal Strip 20 Amp 22 Pole for AC1-PH65-08M Air Compressor by Mi-T-M 320463
$26.77
3
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
4
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
6
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
7
32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313
Call for Price call for price call for price
8
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
9
32-0471 Fuse 0.6A for AC1-PH65-08M Air Compressor by Mi-T-M 320471
$33.74
10
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
12
32-1268 CAPACITOR (2004-0E2G) BY MITM
$78.92
12
32-1293 CAPACITOR BY MITM
$52.65
13
20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18
Call for Price call for price call for price
17
20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18
Call for Price call for price call for price
14
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
15
27-0024 BOLT BY MITM
$0.68
15
27-0032 Hhcs-Z1 Gr5 1/4-20 X 5 for MiTM Pressure Washers 270032
$7.49
16
32-1292 CAPACITOR - RUN (W/MOTOR) (3004-0E2G) BY MITM
$43.82
16
32-1297 CAPACITOR BY MITM
$38.96
18
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
19
32-0470 Fuse 5A for AC1-PH65-20M Air Compressor by Mi-T-M 320470
$43.71
20
32-0473 Fuse Holder Enclosed for AC1-PH65-20M Air Compressor by Mi-T-M 320473
$52.25
21
32-0479 Contactor 43A 3 Pole W/Aux for AC1-PH65-08M Air Compressor by Mi-T-M 320479
$140.80
21
32-0480 CONTACTOR (3005-0E8G) BY MITM
$255.09
22
32-1073 OVERLOAD RELAY 25 - 36 AMP (2004-0E8G) BY MITM
$105.51
22
32-0938 Overload Relay for MiTM Pressure Washers 320938
$474.57
23
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
23
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
5
Call for Price call for price call for price
11
Call for Price call for price call for price
16
Call for Price call for price call for price
17
Call for Price call for price call for price
