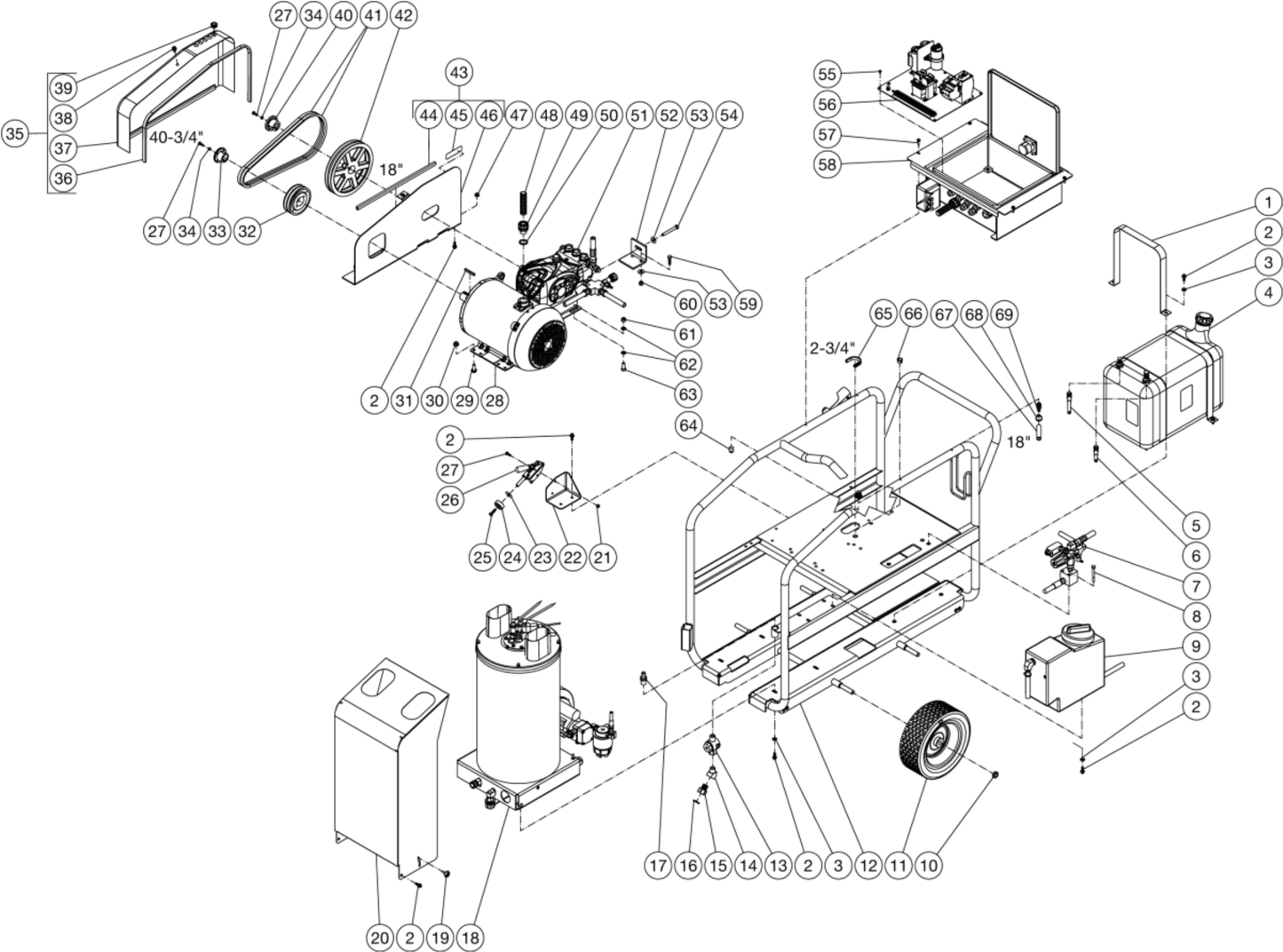

HSE-2504-0M10 (sn:15143274-99999999), HSE-2504-0M30/HSE-3004-0M30 (sn:15144937-99999999), HSE-3504-0M10 (sn:15145474-99999999) Frame Assembly Parts by Mi-T-M

HSE-2504-0M10 (sn:15143274-99999999), HSE-2504-0M30/HSE-3004-0M30 (sn:15144937-99999999), HSE-3504-0M10 (sn:15145474-99999999) Frame Assembly Parts by Mi-T-M

  • HSE-2504-0M10 (sn:15143274-99999999), HSE-2504-0M30/HSE-3004-0M30 (sn:15144937-99999999), HSE-3504-0M10 (sn:15145474-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0579A18 FUEL TANK STRAP BY MITM
$15.53
2
27-9524 Bolt for ABS Air Compressor by Mi-T-M 279524
$1.99
3
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
4
850-0303 Fuel Tank Assy Hhs for AC1-HE02-05M by Mi-T-M 8500303
$219.30
5
15-0190 Fuel Hose 18.75" 3000Psi Black for AC1-PH65-08M Air Compressor by Mi-T-M 150190
Call for Price call for price call for price
6
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
8
27-8040 Bolt BY MITM
$1.16
10
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
11
14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150
Call for Price call for price call for price
12
5-0138A18 FRAME BY MITM
$1,173.63
13
19-0096 Filter/Water for AC1-PH65-08M Air Compressor by Mi-T-M 190096
$42.50
14
23-0344 Elbow 45 Deg 1/2Mnpt X 1/2Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230344
Call for Price call for price call for price
15
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
16
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
17
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
19
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
20
20-0379A18 HOOD BY MITM
$155.12
21
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
22
20-1357A18 BRAKE BRACKET BY MITM
$16.28
23
28-0057 WASHER BY MITM
$0.68
24
14-0174 ISOLATOR BY MITM
$1.02
25
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
26
33-0400 NUT BY MITM
$60.02
27
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
28
2-0205 MOTOR (2504-0M10, 2504-SM10) BY MITM
$1,383.42
28
2-0206 MOTOR (2504-0M30, 2504-SM30) BY MITM
$1,009.13
28
2-0218 MOTOR BY MITM
$1,986.93
28
2-0211 Motor 8Hp for MiTM Pressure Washers 20211
$3,484.70
28
2-0222 Motor 10Hp 230V 1Ph Tefc for MiTM Pressure Washers 20222
$3,738.81
28
2-0213 MOTOR (3504-0M30) BY MITM
$1,982.88
29
27-8923 Bolt for MiTM Pressure Washers 278923
$7.49
31
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
31
43-0174 Key for MiTM Pressure Washers 430174
$78.33
32
10-0065 Sheave 2Ak49H (4.5 Pitch Dia) for AC1-PH65-08M Air Compressor by Mi-T-M 100065
$52.10
32
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
32
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
32
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
33
*9-0010 Bushing H X 1-1/8 Motor for Mi-T-M CA-2403-0MHB by MiTM 90010
$18.08
33
*9-0008 Bushing H X 1 3/8 Motor for MI-T-M 3004-0ME1 CW Series by MiTM 90008
$18.08
34
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
36
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
44
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
65
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
38
27-1206 BOLT BY MITM
$0.36
39
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
40
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
41
11-0001 Cog Belt Ax43 for AC1-PH65-08M Air Compressor by Mi-T-M 110001
$24.95
41
11-0017 Cog Belt Ax44 for AC1-PH65-20M Air Compressor by Mi-T-M 110017
$37.79
41
*11-0011 Cog Belt Ax46 for Mi-T-M CA-2703-8MRB by MiTM 110011
$25.36
42
10-0038 Sheave 2Ak94H for AC1-PH65-08M Air Compressor by Mi-T-M 100038
$86.29
47
30-3023 Locknut BY MITM
$0.68
48
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
48
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
49
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
50
26-0314 Gasket-3/4 Npt Conduit Fitting for AC1-PH65-08M Air Compressor by Mi-T-M 260314
$4.85
52
13-0003A18 Bracket for MiTM Pressure Washers 130003A18
$60.57
53
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
54
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
55
27-8933 SCREW BY MITM
Call for Price call for price call for price
59
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
60
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
61
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
62
28-0030 WASHER BY MITM
$2.55
63
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
64
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
66
32-0465 Bushing/Cord for AC1-PH65-08M Air Compressor by Mi-T-M 320465
$2.85
67
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
68
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
69
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
30
Call for Price call for price call for price
35
Call for Price call for price call for price
43
Call for Price call for price call for price
57
Call for Price call for price call for price
